Products
-
-
OPTICAL

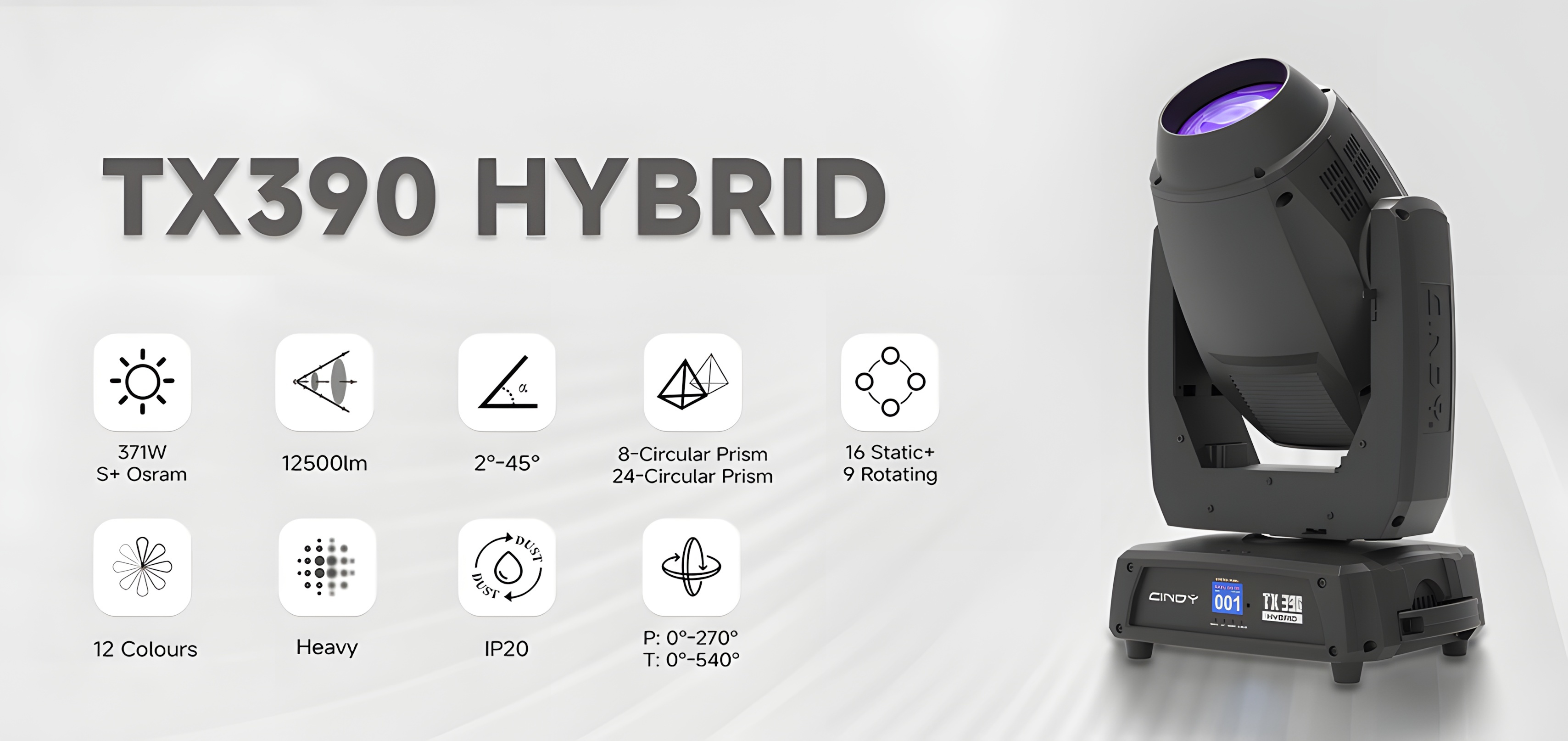

SIRIUS HRI 371W S+
-
LUMEN OUTPUT
12,500 lm
-
ANGLE
2°-45°
-
MEASUREMENT
362*250*574mm
-
WEIGHT
19KG
Product
Parameters
Optical
Light Source: SIRIUS HRI 371W S + Lamp
Color Temperature: 7,500K
Beam Angle (spot mode): 2°-45°
Luminaire Output: 12,500lm
Illuminance（beam mode）: 76,000lux @ 20m
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 12+white, split colors, rainbow effects at variable speeds.
Gobo 1: 4 rotating metal gobos+4 rotating glass gobo+open, rainbow effects at variable speeds
Gobos 2: 16 static metal gobos+open, indexing, rainbow effects at variable speeds
Dimmer: 0-100% electronics
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Frost: Motorized
Prism 1: 8-facet prism, rotating at variable speeds.
Prism 2: 24-facet prism, rotating at variable speeds.
Appearance
Size: 362*250*574mm
Weight: 19KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 19, 22
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 200V-240V, 50/60Hz
Power: 510W
Temperature (Ambient): -5° to 45°
 |
|
Color wheel COLOR WHEEL | |||||
 | |||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 |
 | |||||
COLOR 7 | COLOR 8 | COLOR 9 | COLOR 10 | COLOR 11 | COLOR 12 |
ROTATING GOBO | ||||||||
 | ||||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 | R GOBO 8 | R GOBO 9 |
STATIC GOBO | |||||||
 | |||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 | S GOBO 8 |
 | |||||||
S GOBO 9 | S GOBO 10 | S GOBO 11 | S GOBO 12 | S GOBO 13 | S GOBO 14 | S GOBO 15 | S GOBO 16 |
PRISM | FROST | ||
 |  | ||
8-CIRCULAR PRISM | 24-CIRCULAR PRISM |
| HEAVEY |
PHOTOMETRICS |
 |
