OPTICAL
Ushio 400W
-
LUMEN OUTPUT
19,600 lm
-
ANGLE
1.8°- 36°
-
MEASUREMENT
394*255*648mm
-
WEIGHT
23KG
Product
Parameters
Optical
Light Source: Ushio 400W lamp
Color Temperature: 7,000K
Beam angle: 1.8°- 36°
Luminaire Output: 19,600lm
Illuminance: 115,000lux @ 20m
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 14+white, split colors, rainbow effects at variable speeds.
Colors: CMY
Gobos 1: 9 rotating glass gobos+open, indexing, rainbow effects at variable speeds.
Gobos 2: 17 static metal gobos+open, rainbow effects at variable speeds.
Dimmer: 0-100% electronics
Strobe: 0-15Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Frost: Motorized
Prism 1: 8-facet prism, rotating at variable speeds.
Prism 2: 24-facet prism, rotating at variable speeds.
Appearance
Size: 394*255*648mm
Weight: 23KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 21, 28
3 pin 5pin XLR input/output, ethernet input/output
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 620 W, 2.7A @ 230 V, 50 Hz
Temperature (Ambient): -5° to 45°
 |
|
CMY COLOR | |||||
CYAN | MAGENTA | YELLOW | |||
0% | 100% | 0% | 100% | 0% | 100% |
COLOR WHEEL | ||||||
 | ||||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |
 | ||||||
COLOR 8 | COLOR 9 | COLOR 10 | COLOR 11 | COLOR 12 | COLOR 13 | COLOR 14 |
ROTATING GOBO | ||||||||
 | ||||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 | R GOBO 8 | R GOBO 9 |
STATIC GOBO | |||||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 | S GOBO 8 | S GOBO 9 | S GOBO 10 |
 | ||||||
S GOBO 11 | S GOBO 12 | S GOBO 13 | S GOBO 14 | S GOBO 15 | S GOBO 16 | S GOBO 17 |
PRISM | FROST | ||
 | |||
8-CIRCULAR PRISM | 6-LINEAR PRISM |
| HEAVY |

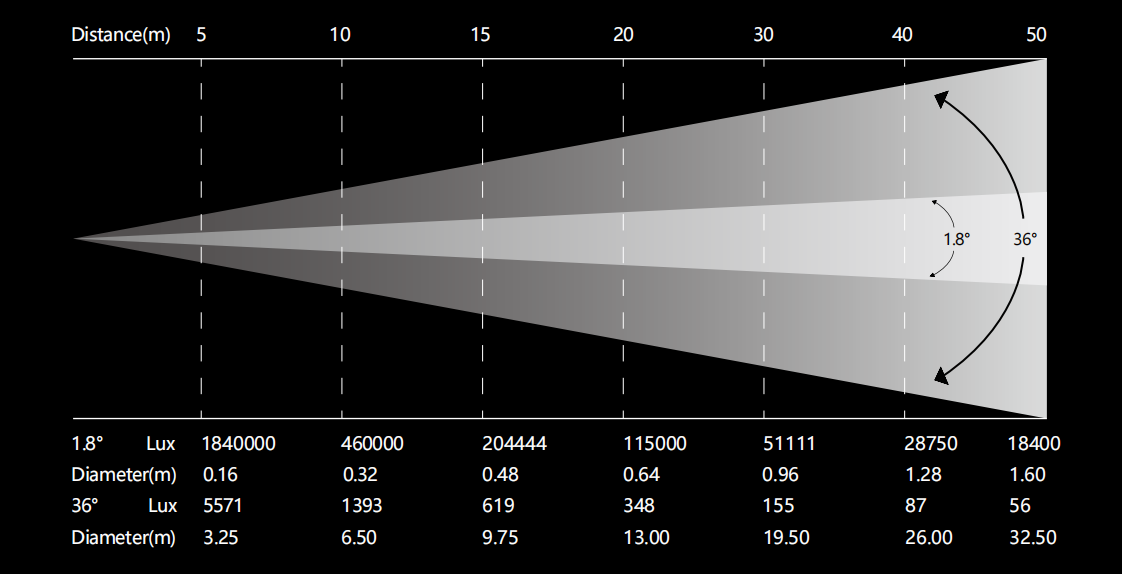

PHOTOMETRICS |
 |
