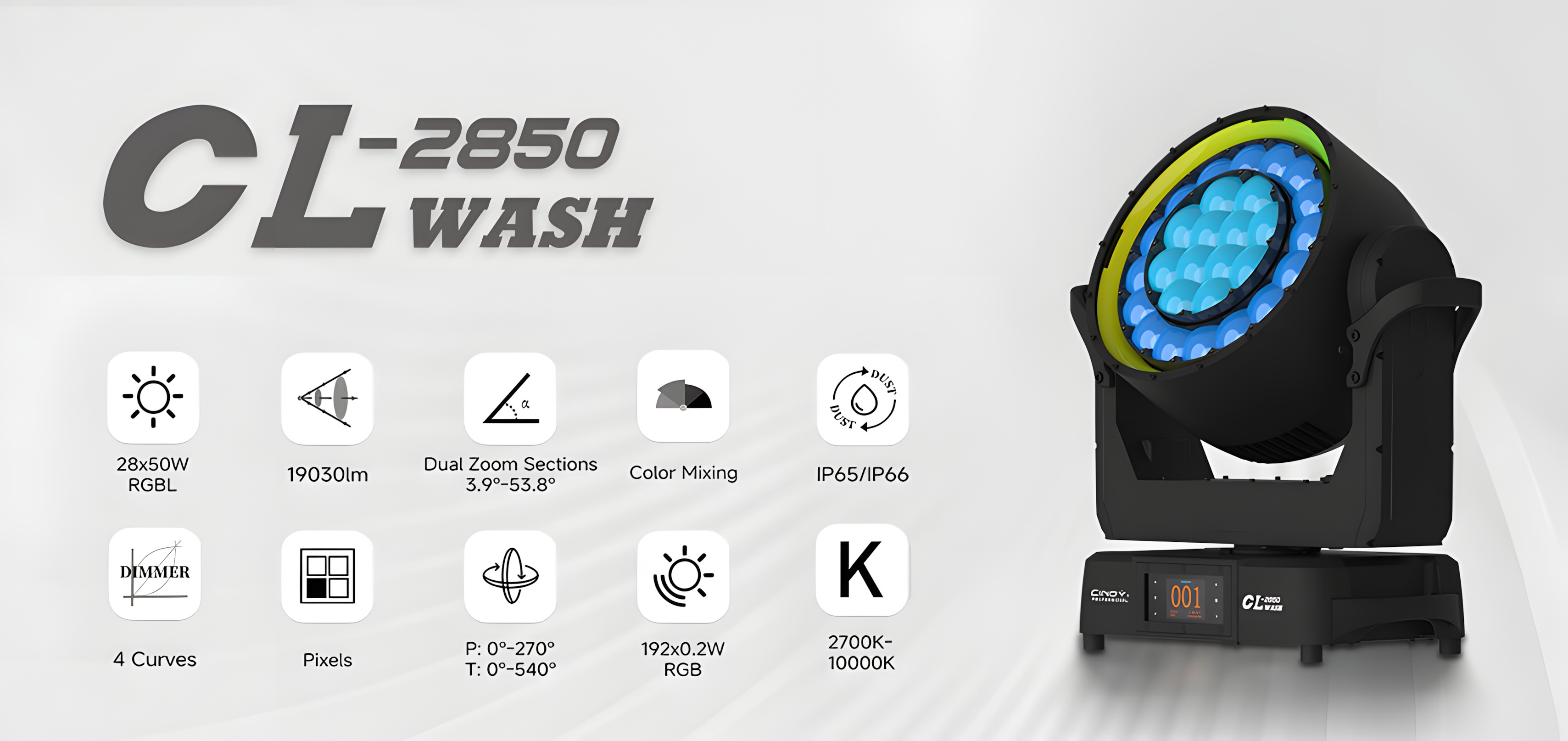

Products
-
-
OPTICAL
28x50W RGBL
-
LUMEN OUTPUT
19,030 lm
-
ANGLE
3.9°-53.8°
-
MEASUREMENT
580*375*535mm
-
WEIGHT
32.5KG
Product
Parameters
Optical
Light Source: 28*50W RGBL LED, 192*0.2W RGB LED
Color Temperature: 2800K-10000K adjustable
Beam Angle: 3.9°-53.8°
Luminaire Output: 19,030lm
Illuminance (3.9°): 79.830lux @ 5m
Illuminance (53.8°): 2,790lux @ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
LED: pixel control
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 260°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Zoom: Dual independent zoom
Color Mixing: RGBW mixing or CMY mixing
Outer Ring: 12 sections control
Appearance
Size: 580*375*535mm
Weight: 32.5KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP Rated: IP65/IP66
Connection
Control Protocol: DMX, RDM
Only for Connector version: ArtNet, sACN, Kling-Net
DMX (Single Mode):20, 32, 38, 180, 336, 416, 424
DMX (Dual Mode-Movement): 12, 35, 46
DMX (Dual Mode-Pixel): 120, 148, 296
Connector version: 3-pin XLR, EtherCON, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.
Electrical / Temperature
Input Voltage: AC 200V-240V, 50/60Hz
Power: 1550W，6.7A @ 230V，50Hz
Working temperature: -40℃-45℃
Startup temperature: -20℃-45℃
|
LED SOURCE |
 |

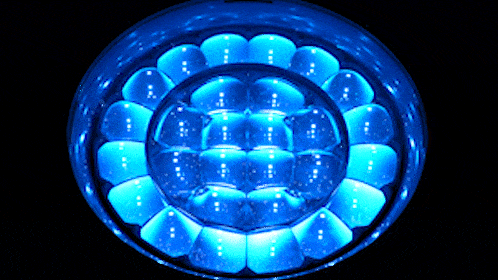

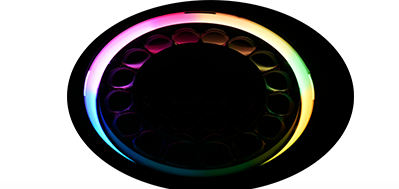

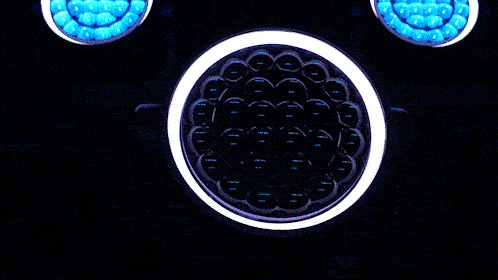

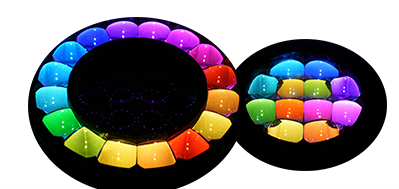

PIXEL CONTROL | RING EFFECT |
 |  |

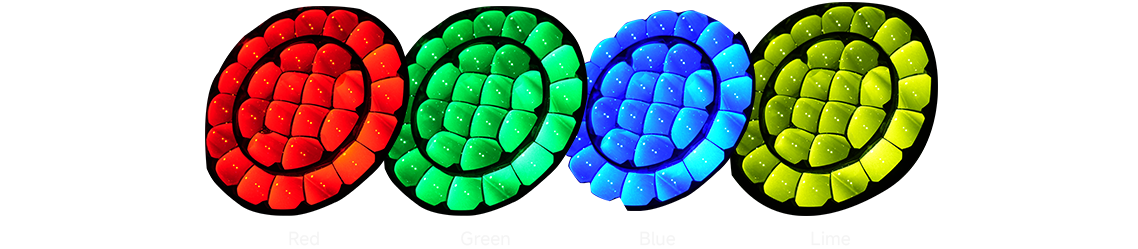

28x50W RGBL | 192x0.2W RGB |
PHOTOMETRICS |
 |
 |

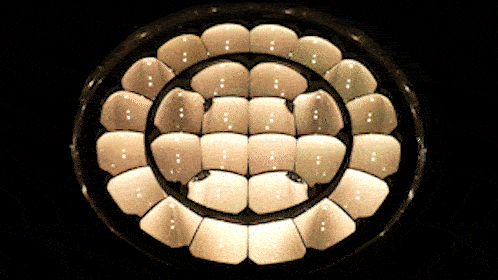

Smooth Dimmer 16bit | Dual-Zoom Control 3.9°-53.8° | ||
 |
| ||

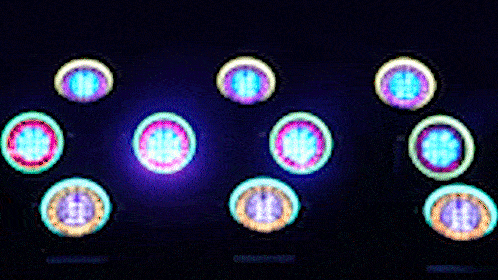

Extensive built-in Effects | Sunflower Effect | ||
|  |
