OPTICAL

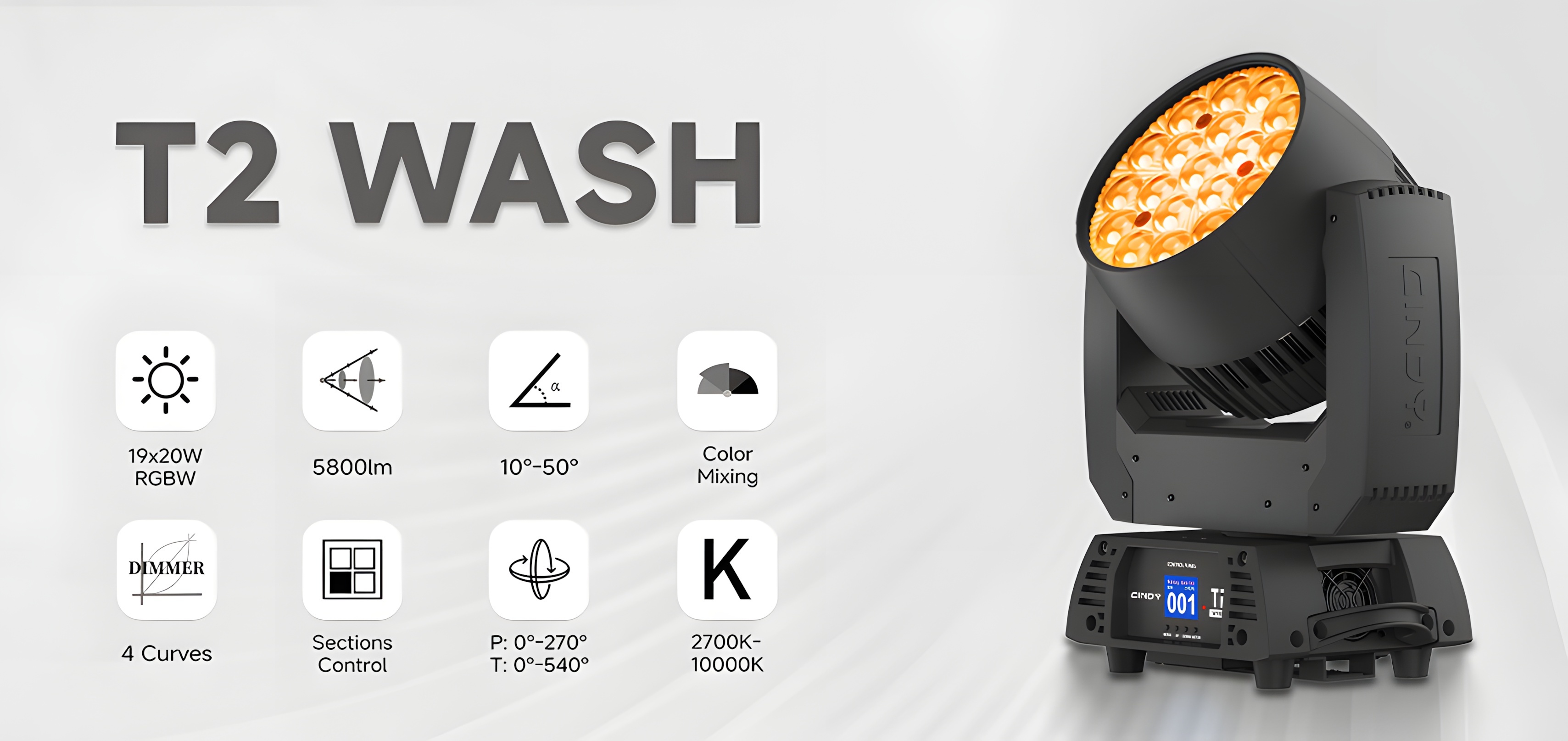

19x20W RGBW
-
LUMEN OUTPUT
5,800 lm
-
ANGLE
10°-50°
-
MEASUREMENT
306*218*398mm
-
WEIGHT
8.5KG
Product
Parameters
Optical

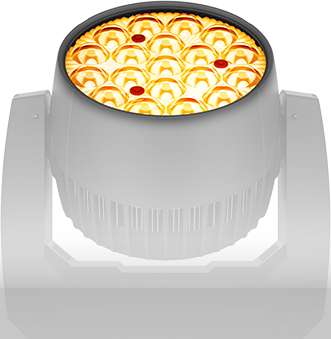

Light Source: 19 pcs 20W RGBW 4 in 1 LED
Beam Angle: 10°-50°
Luminaire Output: 5,800lm
Illuminance (10°): 8,500lux @ 5m
Illuminance (50°): 780lux @ 5m
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color Mixing：RGBW mixing or CMY mixing
Appearance
Size: 306*218*398mm
Weight: 8.5KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 15, 17, 22, 25, 38, 40
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 430W, 1.5A @ 230V, 50Hz
Temperature (Ambient): -5℃ to 45℃
 |
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |
SECTION CONTROL 19x20W LED |
 |
PHOTOMETRICS |
 |
