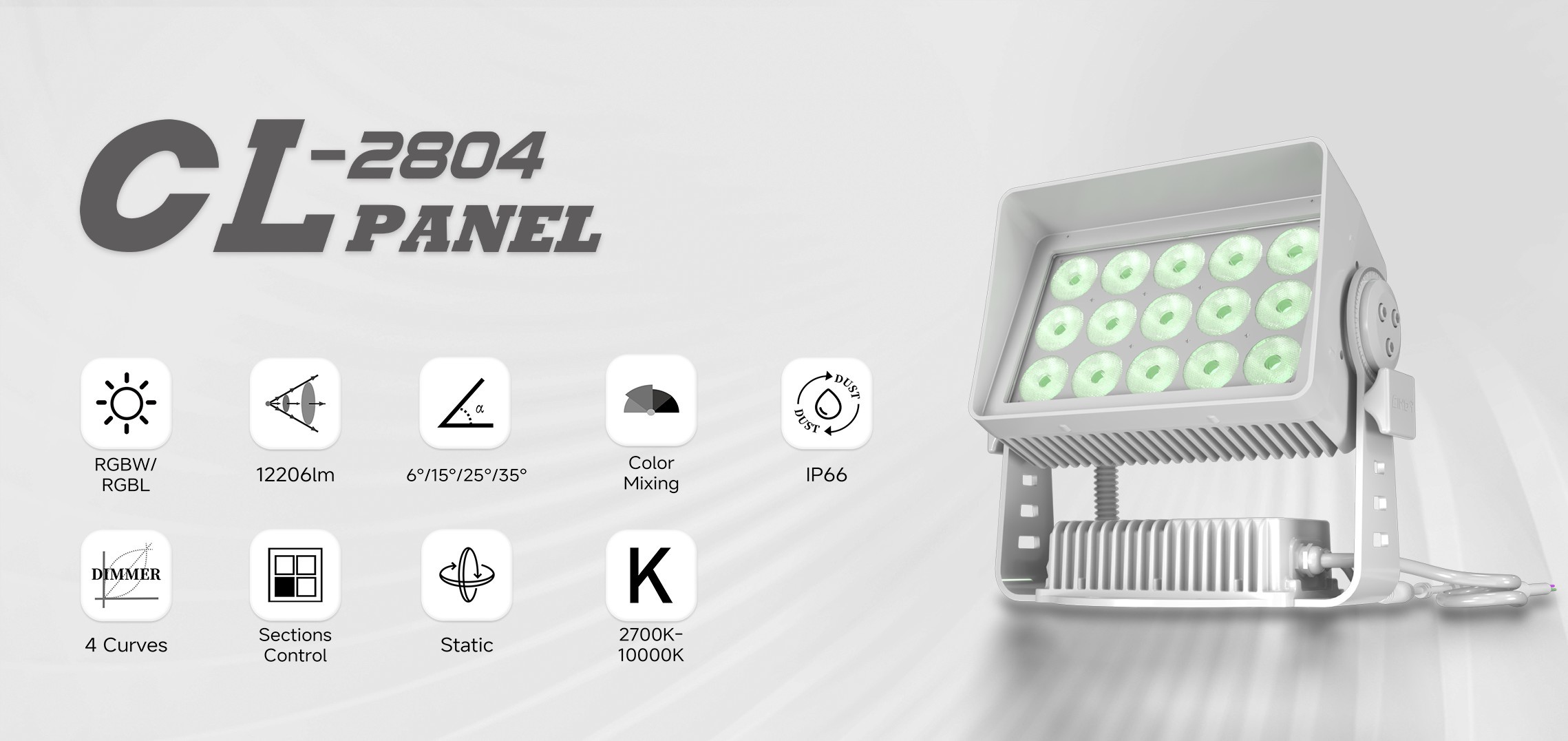

CL-2804 PANEL-CINDY PROFESSIONAL

About CINDY
Products
- PROFILE
- SPOT
  - CT5 SPOT
  - T4 SPOT
  - T2 SPOT
- BEAM
- HYBRID
- WASH
- EFFECT
Products
- PROFILE
- SPOT
- BEAM
- HYBRID
- WASH
- EFFECT
CL-1800 BSWF

CL-1800 WF

CL-1000 BSWF

CL-800 BSWF

CL-600E PRO

CL-600M PRO

OMNI 1400

CT8 BSWF

CT6 BSWF

CT5 SPOT

T4 SPOT

T2 SPOT

CL-400LS BEAM

CL-300LS BEAM

CL-180C BEAM

TOUGH 500 BEAM

TOUGH 350 BEAM

CT4 BEAM

TX390 BEAM

T3X BEAM

T2X BEAM

CL-750 HYBRID

CL-650D HYBRID

TOUGH 500 HYBRID

CT4 HYBRID

PRO-400 HYBRID

TX390 HYBRID

T4X HYBRID

T3X HYBRID

CL-2850 WASH

CL-1950 WASH

TOUGH 350 WASH

TOUGH 950 WASH

TOUGH 1920 LED WASH

SW-2 WASH

CT4 WASH

CT3 WASH

CT1 WASH

T3 WASH

T2 WASH

TOUGH 800 PANEL

TOUGH 400 PANEL

TOUGH 350 PAR

CL-1504 PANEL

CL-1804 PANEL

CL-3004 PANEL

CL-6004 PANEL

CL-6024 PANEL

CL-12024 PANEL

CL-1060 WEAVER

TOUGH 800 BAR

TOUGH 400 BAR

TOR-3 WASH BEAM

TOR-2 WASH BEAM

T4X BAR

T3X BAR

T2X BAR

T1X BAR

TOUGH 500 S BAR
Learn More
Video
Media
Applications
Support
Contact Us

Language

Home

OPTICAL

15x RGBL/RGBW
LUMEN OUTPUT

12,206 lm
ANGLE

6°, 15°, 25°, 35°
MEASUREMENT

335*200*285mm
WEIGHT

7.7KG

Product

Parameters

Optical

Light Source: 15 pcs RGBL/RGBW 4 in 1 LED

LER (Limunous Efficiency Ratio): 43.6 lm/W

Color Temperature: 1800-10000K

Optics Angle: 6°/15°/25°/35°

Luminaire Output: 12,206lm

PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz

Dynamic effect

Dimmer: 0-100% electronics, 4 dimming curves options.

Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.

LED：3 sections

Appearance

Size: 335*200*285mm

Weight: 7.7KG

Housing Colors: sky Grey

Housing Material: Magnesium alloy

IP rated: IP66

Connection

Control Protocol: DMX, RDM.

Input cable tail with 3-pin XLR connectors, power input cable tail

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz

Power: 280W

Working temperature: -40°-45°

Startup temperature: -20°-45°

Technology

Support

Technical documents are updated irregularly

USER MANUAL

CL-2804 PANEL#MANUAL-CN (size:4.1MB)

LIBRARY

CL-2804 PANEL#GDTF_Build_No_1 (size:651.7KB)

USER MANUAL

CL-2804 PANEL#MANUAL-EN (size:5.3MB)

CHANNEL CHART

CL-2804 PANEL#DMX-EN (size:236.6KB)

LIBRARY

CL-2804 PANEL#MA2 LIBRARY (size:14.0KB)

CHANNEL CHART

CL-2804 PANEL#DMX-CN (size:430.8KB)

DRAWING

CL-2804 PANEL#CAD (size:316.1KB)

LIBRARY

CL-2804 PANEL#TIGER (size:2.8KB)
