Products
-
-
OPTICAL
6x50W RGBW
-
LUMEN OUTPUT
1,731 lm
-
ANGLE
4.7°-40°
-
MEASUREMENT
322*223*510mm
-
WEIGHT
13KG
Product
Parameters
Optical
Light Source: 6 pcs 50W RGBW 4 in 1 LED
Beam Angle: 4.7°-40°
Luminaire Output: 1,731lm
Illuminance (5°): 11,160lux @ 5m
Illuminance (52°): 490lux@ 5m
PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
LED：pixel control
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Dimmer: 0-100% electronics
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color Mixing：RGBW mixing or CMY mixing
Frost: Radial diffuser
Special effect: multi-colored beam effects, bi-directional rotating front lens.
Appearance
Size: 322*223*510mm
Weight: 13KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 24, 53, 59, 86
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 365W, 1.6A @ 230V, 50Hz
Temperature (Ambient): -5° to 45°
 |
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |
PIXEL CONTROL 6x50W LED |
 |

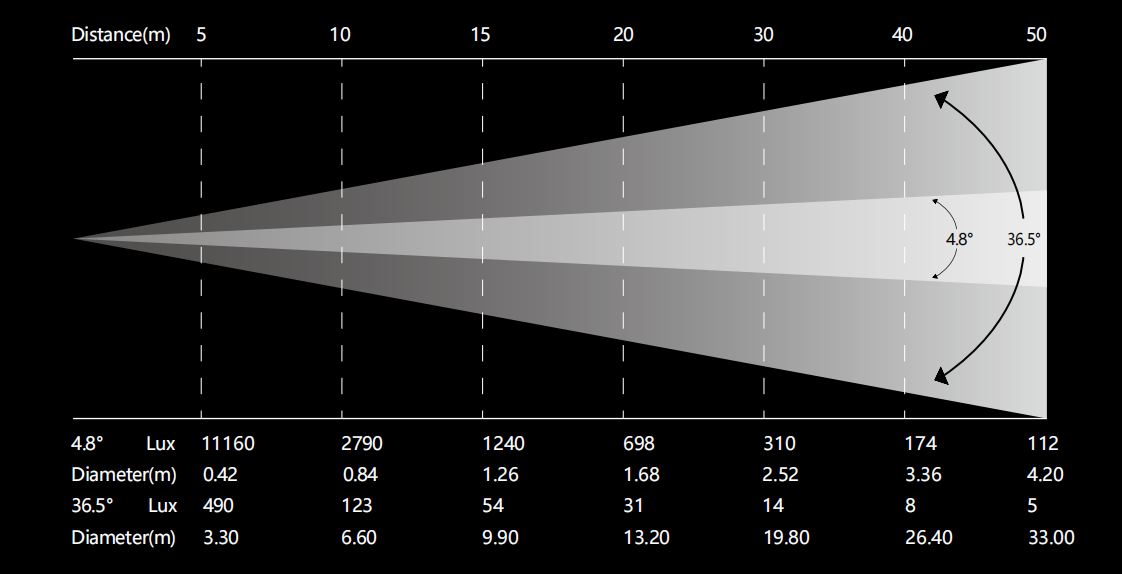

PHOTOMETRICS |
 |
