OPTICAL
8x50W RGBW
-
LUMEN OUTPUT
3,503 lm
-
ANGLE
5.7°-43.3°
-
MEASUREMENT
500*139*273mm
-
WEIGHT
11.5KG
Product
Parameters
Optical
Light Source: 8 pcs 50W RGBW 4 in 1 LED
Beam Angle: 5.7°-43.3°
Luminaire Output: 3,503lm
Illuminance (5.7°): 12,109lux @ 5m
Illuminance (43.3°): 563lux@ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
LED: Pixel control
Selectable Tilt Ranges: 60°, 180°, 200°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color Mixing：RGBW mixing or CMY mixing
Appearance
Size: 500*139*273mm
Weight: 11.5KG
Housing Colors: Black
Housing Material: Aluminum alloy
IP Rated: IP65
Connection
Control Protocol: DMX, RDM, ArtNet, sACN, Kling-Net
DMX (Single Mode): 19, 51, 89, 105
DMX (Dual Mode) Movement: 7, 19, 25
DMX (Dual Mode) Pixel: 24, 32, 64
IP65 rated 5 pin XLR input/output，Ethernet input/output
USB update enabled
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power: 430W
Working temperature: -40°-45°
Startup temperature: -20°-45°
 |
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |
PIXEL CONTROL 8x50W LED |
 |

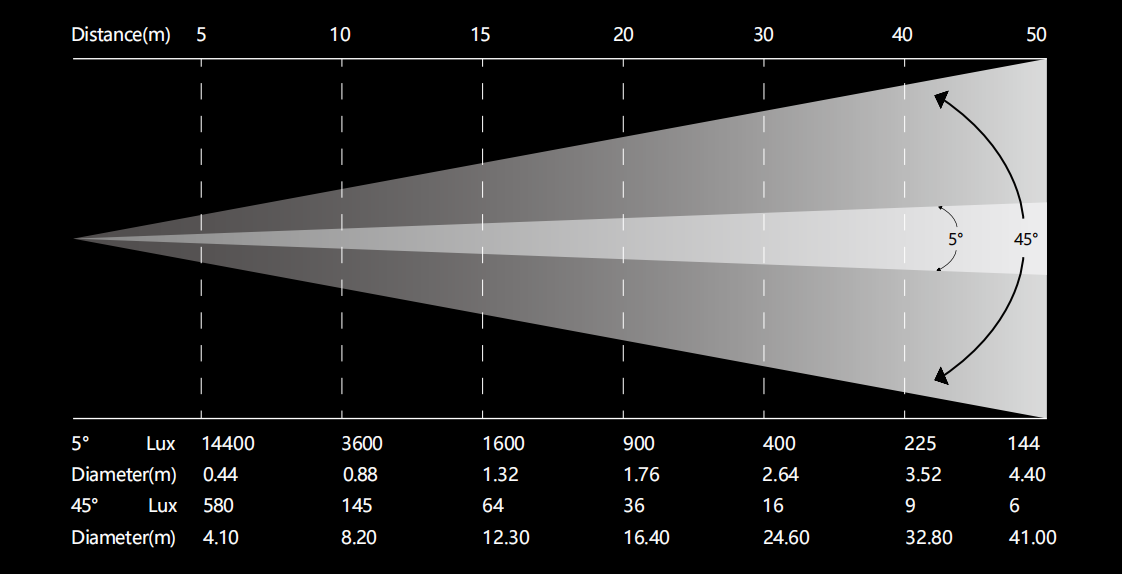

PHOTOMETRICS |
 |
