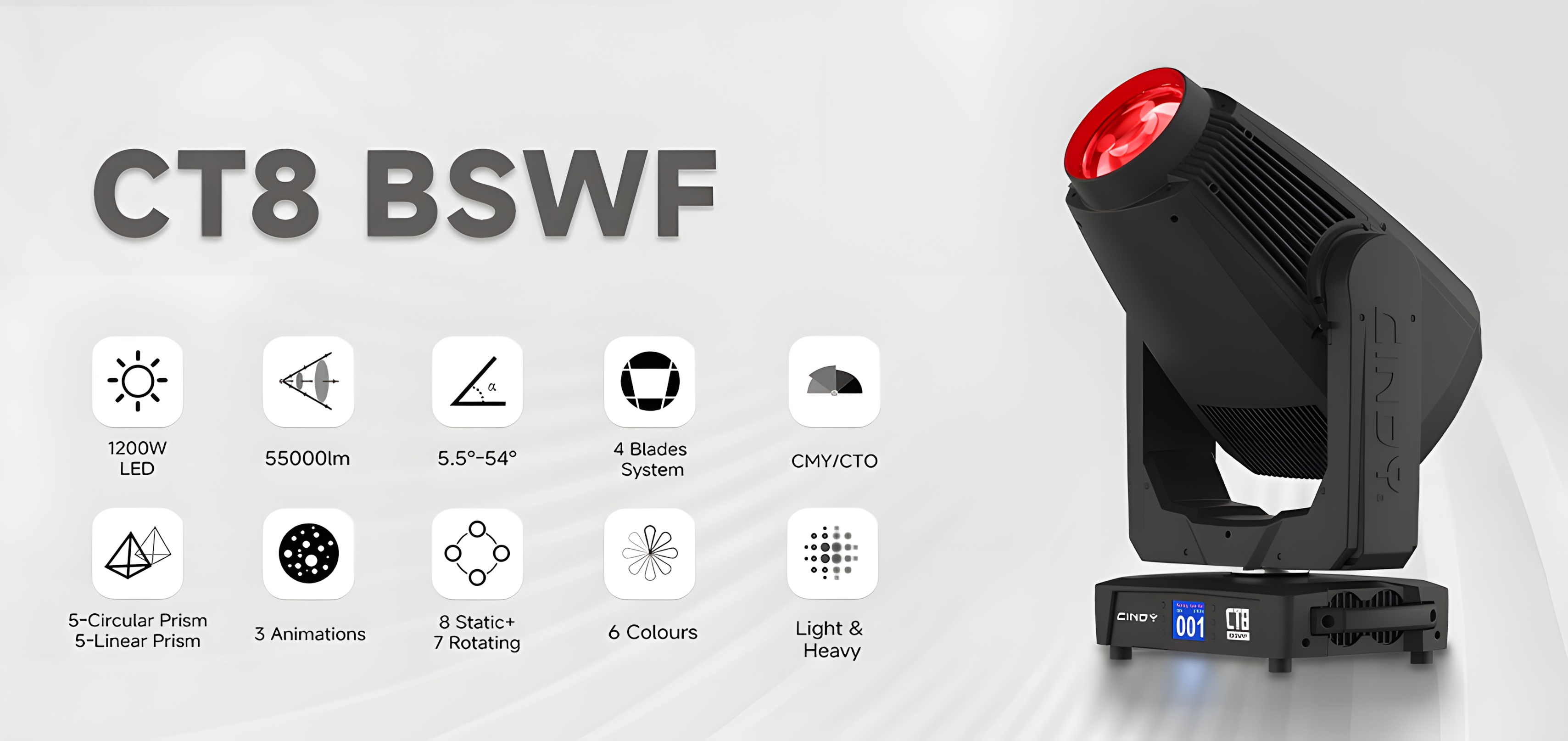

CT8 BSWF
CT8 BSWF
CT8 BSWF
CT8 BSWF

  • OPTICAL

    1200W LED

  • LUMEN OUTPUT

    55,000 lm

  • ANGLE

    5.5°-54°

  • MEASUREMENT

    474*293*809mm

  • WEIGHT

    43KG

Product

icon

Parameters

Optical

Light Source: 1200W white LED module
High CRI mode：Ra>90
Color Temperature: 7000K
Beam Angle: 5.5°-54°
Luminaire Output: 55,000lm
Illuminance (5.5°): 99,990lux @ 5m
Illuminance (54°): 3,500lux @ 5m

Dynamic effect

Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 5 colors + CRI +white, split colors, rainbow effects at variable speeds.
Colors: CMY, CTO
Gobos 1: 7 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2: 8 static glass gobos+open, rainbow effects at variable speeds
Framing Shutters: 4 individual shutter blades, rotation of module is 120°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Frost 1：light frost
Frost 2：heavy frost
Virtual Fresnel lens effect
Iris: Motorized
Animation: 3 animations effects, continuous rotation at both speed.
Prism 1: 5-facet prism, rotating at variable speeds.
Prism 2: linear prism, rotating at variable speeds.

Appearance

Size: 474*293*809MM
Weight: 43KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer

Connection

Control Protocol: DMX, RDM, ArtNet, sACN, WDMX(*optional)
DMX channels: 37, 53
3 pin/5 pin XLR input/output, ethernet input/output
USB update enabled

Electrical / Temperature

Input Voltage: 100V-240V, 50/60Hz
Power: 1600W
Temperature (Ambient): -5℃ to 45℃





CMY COLOR

CMY



CTO

CYAN

MAGENTA

YELLOW



2700K


0%

100%

0%

100%

0%

100%

 0%

100%









COLOR WHEEL

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6









ROTATING GOBO

R GOBO 1

R GOBO 2

R GOBO 3

R GOBO 4

R GOBO 5

R GOBO 6

R GOBO 7









STATIC GOBO

S GOBO 1

S GOBO 2

S GOBO 3

S GOBO 4

S GOBO 5

S GOBO 6

S GOBO 7

S GOBO 8









PRISM



FROST



5-CIRCULAR PRISM

5-LINEAR PRISM



LIGHT

HEAVY









FRAMING SYSTEM



± 60° ROTATION









ANIMATION SYSTEM

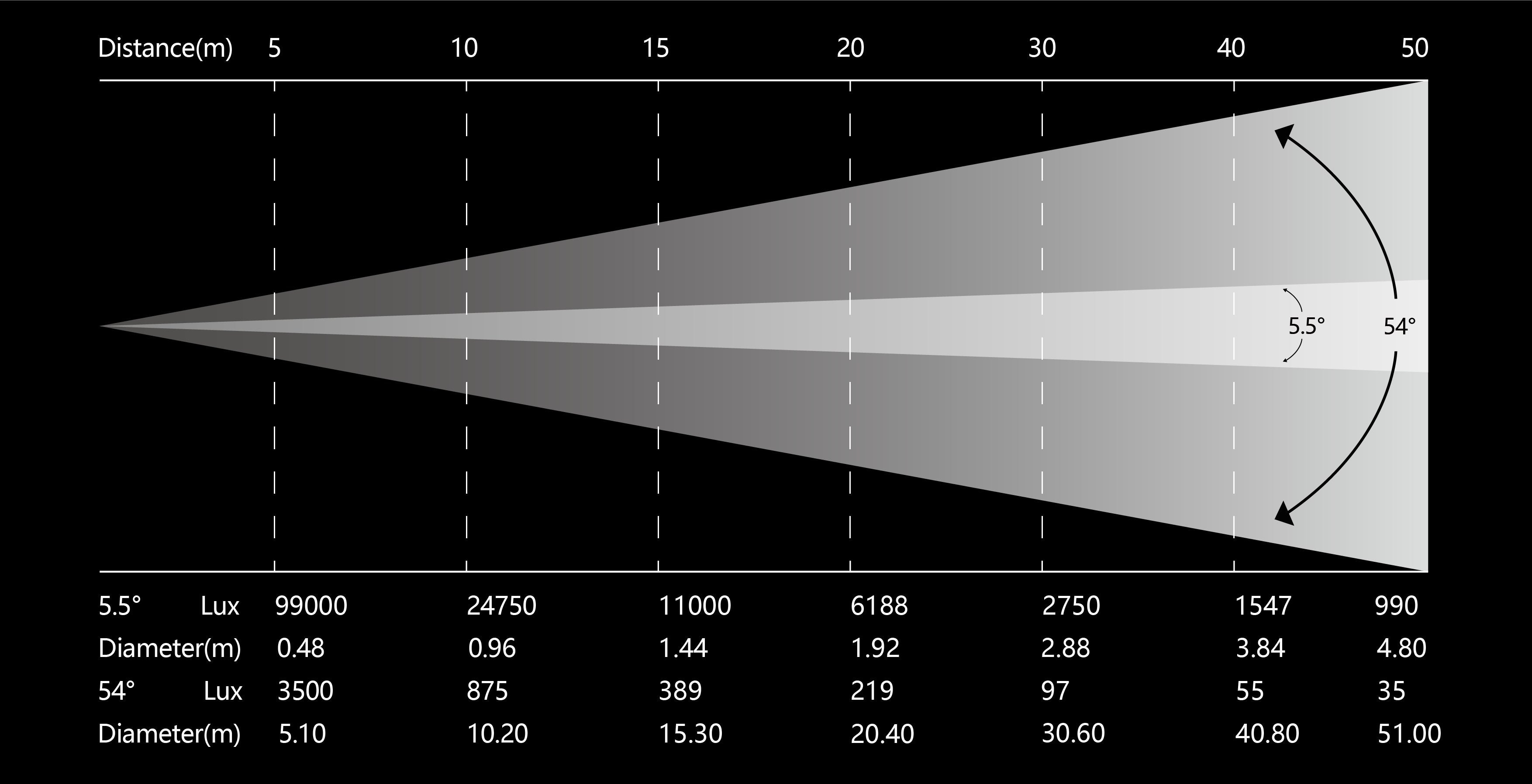

PHOTOMETRICS
