OPTICAL
SIRIUS HRI 371W S+
-
LUMEN OUTPUT
11,650 lm
-
ANGLE
1.7°
-
MEASUREMENT
362*250*584mm
-
WEIGHT
18KG
Product
Parameters
Optical
Light Source: SIRIUS HRI 371W S + Lamp
Color Temperature: 7500K
Beam Angle: 1.7°
Luminaire Output: 11,650lm
Illuminance: 145,000lux @ 20m
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 13+white, split colors, rainbow effects at variable speeds.
Gobos: 17 static metal gobos+open, rainbow effects at variable speeds
Dimmer: 0-100% electronics
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds
Focus: Motorized
Frost: Motorized
Prism 1: 8-facet prism, rotating at variable speeds.
Prism 2: 24-facet prism, rotating at variable speeds.
Appearance
Size: 362*250*584mm
Weight: 18KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 16, 19
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 200V-240V, 50/60Hz
Power: 500 W
Temperature (Ambient): -5° to 45°
 |
|
COLOR WHEEL | ||||||
 | ||||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |
 | ||||||
COLOR 8 | COLOR 9 | COLOR 10 | COLOR 11 | COLOR 12 | COLOR 13 | COLOR 14 |
STATIC GOBO | ||||||||
 | ||||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 | S GOBO 8 | S GOBO 9 |
 | |||||||
S GOBO 10 | S GOBO 11 | S GOBO 12 | S GOBO 13 | S GOBO 14 | S GOBO 15 | S GOBO 16 | S GOBO 17 |
PRISM | FROST | ||
 |  | ||
8-CIRCULAR PRISM | 24-CIRCULAR PRISM |
| HEAVY |

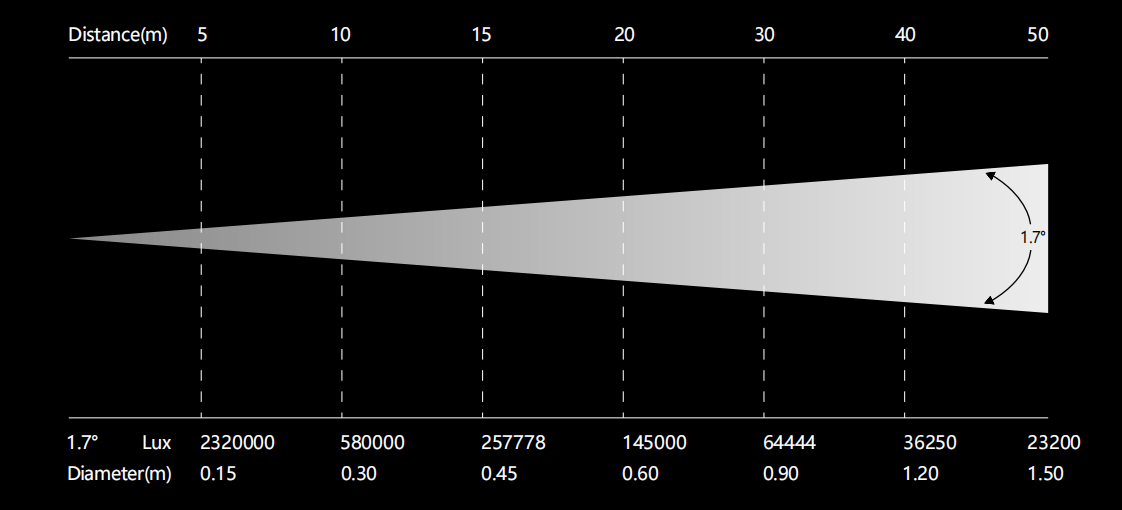

PHOTOMETRICS |
 |
