Products
-
-
OPTICAL
16x50W RGBW
-
LUMEN OUTPUT
8,959 lm
-
ANGLE
5.7°-43.3°
-
MEASUREMENT
1000*139*273mm
-
WEIGHT
20.7KG
Product
Parameters
Optical
Light Source: 16 pcs 50W RGBW 4 in 1 LED
Beam Angle: 5.7°-43.3°
Luminaire Output: 8,959lm

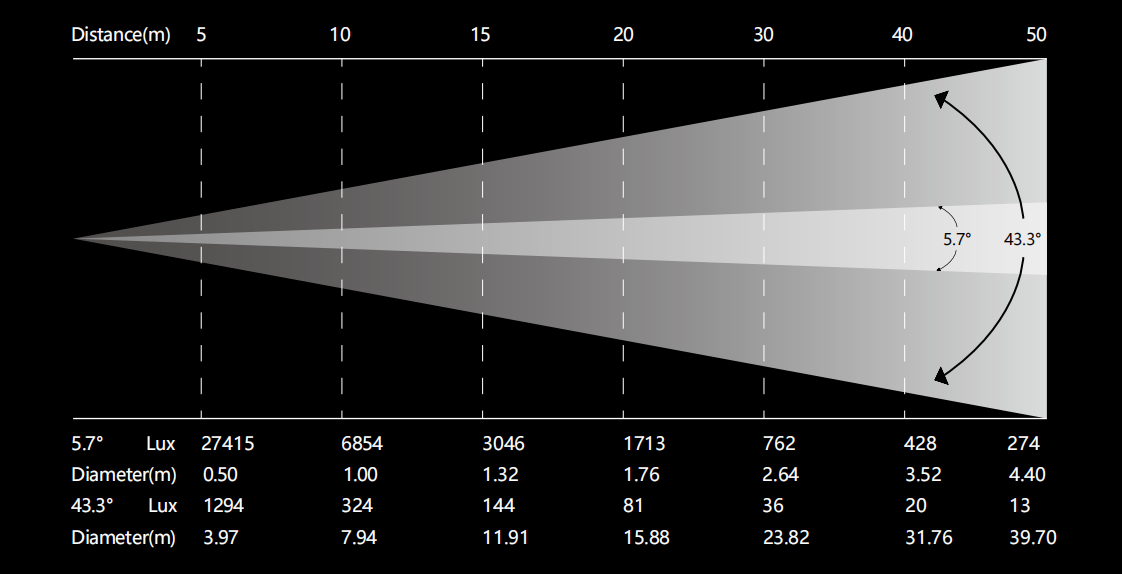

Illuminance (5.7°): 27,415lux @ 5m
Illuminance (43.3°): 1,294lux@ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
LED：pixel control
Selectable Tilt Ranges: 60°, 180°, 200°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color Mixing：RGBW mixing or CMY mixing
Appearance
Size: 1000*139*273MM
Weight: 20.7KG
Housing Colors: Black
Housing Material: Aluminum alloy
IP Rated: IP65
Connection
Control Protocol: DMX, RDM, ArtNet, sACN, Kling-Net
DMX (Single Mode): 20, 84, 154, 186
DMX (Dual Mode) Movement: 7, 8, 20, 26
DMX (Dual Mode) Pixel: 48, 64, 128
IP65 rated 3 pin XLR input/output，Ethernet input/output
USB update enabled
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 820W
Temperature (Ambient): -5℃~45℃
 |
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |
PIXEL CONTROL 16x50W LED |
 |
PHOTOMETRICS |
 |
