OPTICAL

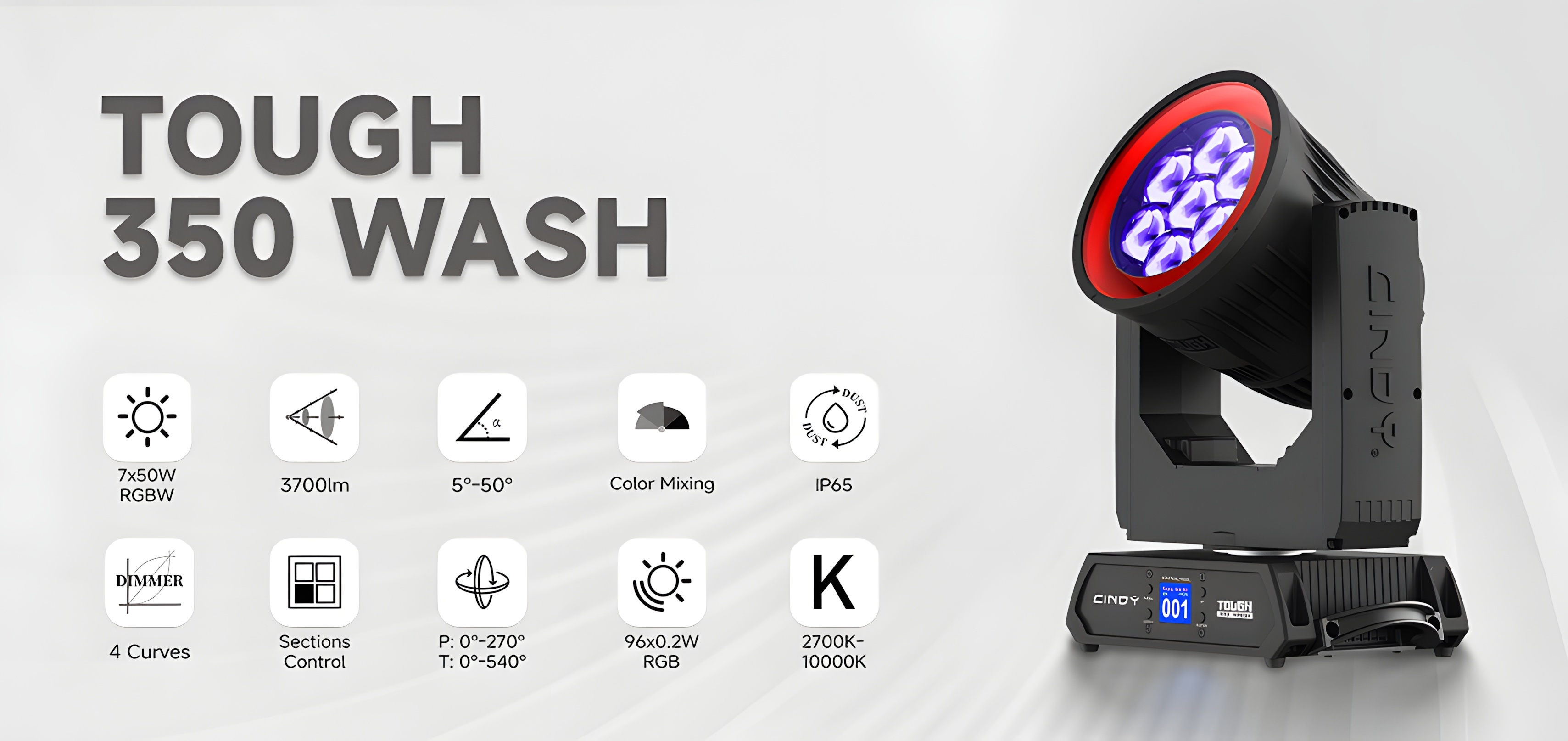

7x50W RGBW
-
LUMEN OUTPUT
3,700 lm
-
ANGLE
5°-50°
-
MEASUREMENT
303*202*391mm
-
WEIGHT
8.6KG
Product
Parameters
Optical

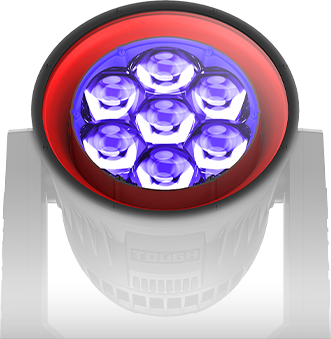

Light Source: 7 pcs 50W RGBW 4 in 1 LED, 96*0.2W RGB LED
Beam Angle: 5°-50°
Luminaire Output: 3,700lm
Illuminance (5°): 13,600lux @ 5m
Illuminance (50°): 510lux@ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 260°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color Mixing: RGBW mixing or CMY mixing
Outer Ring: 12 section control
Appearance
Size: 303*202*391mm
Weight: 8.6KG
Housing Colors: Black
Housing Material: Aluminum alloy
IP Rated: IP65
Connection
Control Protocol: DMX, RDM
DMX channels: 15, 24, 30, 64, 111, 135
IP65 rated 3 pin XLR input/output
Electrical / Temperature
Input Voltage: AC 100V-240V, 50/60Hz
Power: 405W
Working temperature: -40°-45°
Startup temperature: -20°-45°
 |
MAIN LED | |||
RED | GREEN | BLUE | WHITE |
RING LED | ||
RED | GREEN | BLUE |
 |  |  |
SECTION CONTROL 7x50W LED & 96*0.2W LED |
 |
PHOTOMETRICS |
 |
