OPTICAL

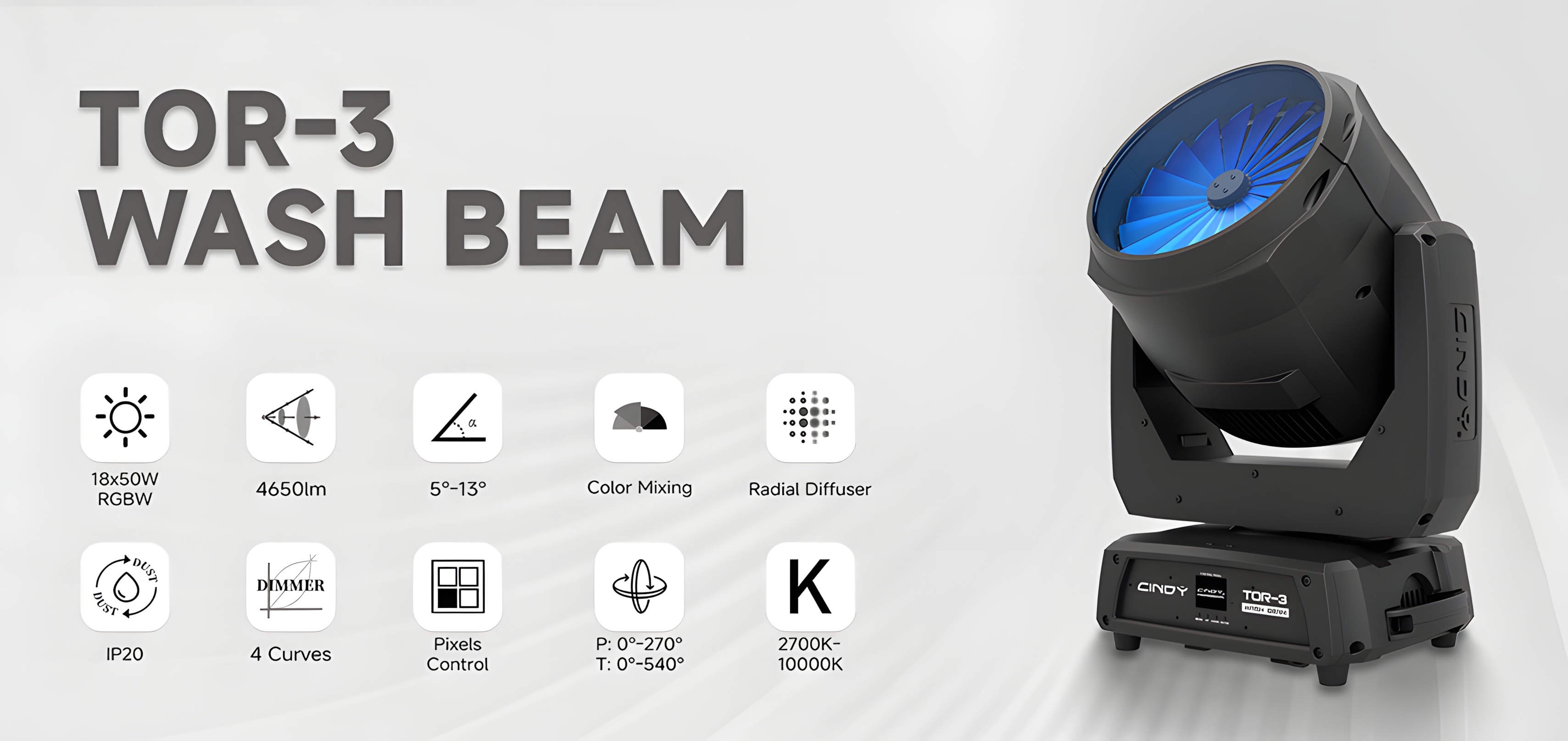

18x50W RGBW
-
LUMEN OUTPUT
4,650 lm
-
ANGLE
5°-13°
-
MEASUREMENT
392*286*518mm
-
WEIGHT
20.3KG
Product
Parameters
Optical
Light Source: 18 pcs 50W RGBW 4 in 1 LED
Beam Angle: 5°-13°
Luminaire Output: 4,650lm

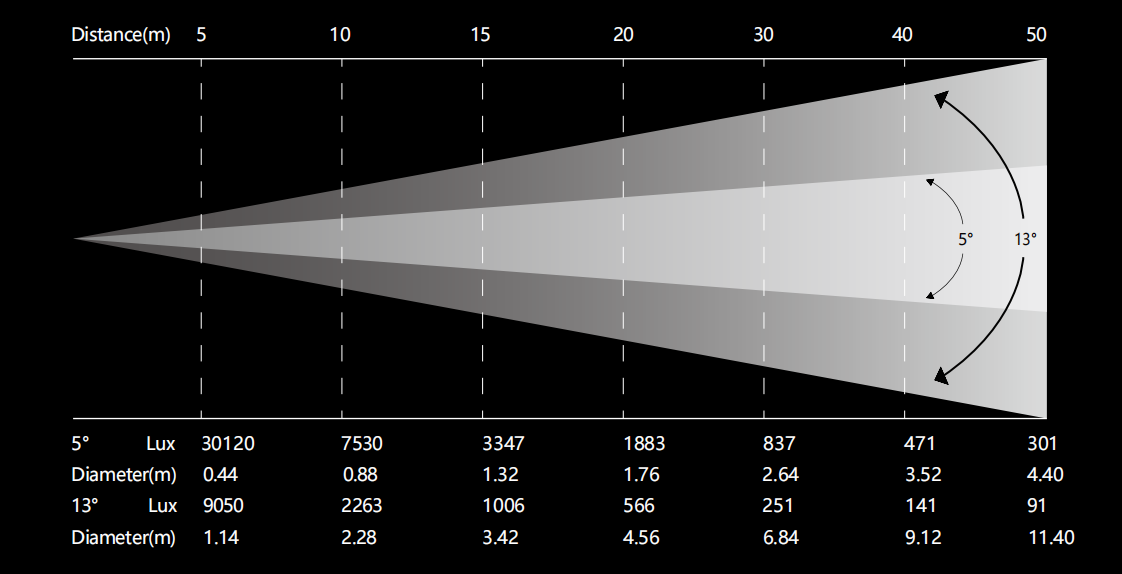

Illuminance (5°): 30,120lux @ 5m
Illuminance (13°): 9,050lux @ 5m
PWM Options: 600Hz, 1200Hz, 2000,Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
LED：pixel control
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Dimmer: 0-100% electronics, 4 dimmer curves
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color Mixing：RGBW mixing or CMY mixing
Frost: Radial diffuser
Special effect: multi-colored beam effects, bi-directional rotating front lens.
Appearance
Size: 392*286*518mm
Weight: 20.3KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 25, 102, 120, 183
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 200V-240V, 50Hz
Power: 940W
Temperature (Ambient): -5° to 45°
|
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |
PIXEL CONTROL 18x50W LED |
 |
PHOTOMETRICS |
 |
