OPTICAL
600W LED
-
LUMEN OUTPUT
29,700 lm
-
ANGLE
5.6°-55°
-
MEASUREMENT
510*321*293mm
-
WEIGHT
22.5KG
Product
Parameters
Optical
Light Source: 600W white LED module
Color Temperature: 7000K
Beam Angle: 5.6°-55°
Luminaire Output: 29,700lm
Illuminance (5.6°): 100,427lux @ 5m
Illuminance (55°): 1,978lux @ 5m
PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
Colors: CMY, CTO
Colors: 5 colors + CRI 90+8000K CTB+white, split colors, rainbow effects at variable speeds.
Gobos 1: 6 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2: 6 rotating metal gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Framing Shutters: 4 individual shutter blades, rotation of module is 120°
Animation: animations effects, continuous rotation at both speed.
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Prism: 4-facet prism, rotating at variable speeds.
Frost：light frost
Appearance
Size: 510*321*293mm
Weight: 22.5KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP rated: IP66
Connection
Control Protocol: DMX, RDM.
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.
Electrical / Temperature
Input Voltage: 200V-240V, 50/60Hz
Power: 950W，3.4A @ 230V，50Hz
Working temperature: -40°-45°
Startup temperature: -20°-45°
 |
|
COLOR WHEEL | ||||||
 | ||||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |
ROTATING GOBO-1 | ||||||
R GOBO 1-1 | R GOBO 1-2 | R GOBO 1-3 | R GOBO 1-4 | R GOBO 1-5 | R GOBO 1-6 | R GOBO 1-7 |
ROTATING GOBO-2 | ||||||
R GOBO 2-1 | R GOBO 2-2 | R GOBO 2-3 | R GOBO 2-4 | R GOBO 2-5 | R GOBO 2-6 | R GOBO 2-7 |
PRISM | FROST | |
 |  | |
4-CIRCULAR PRISM |
| LIGHT |

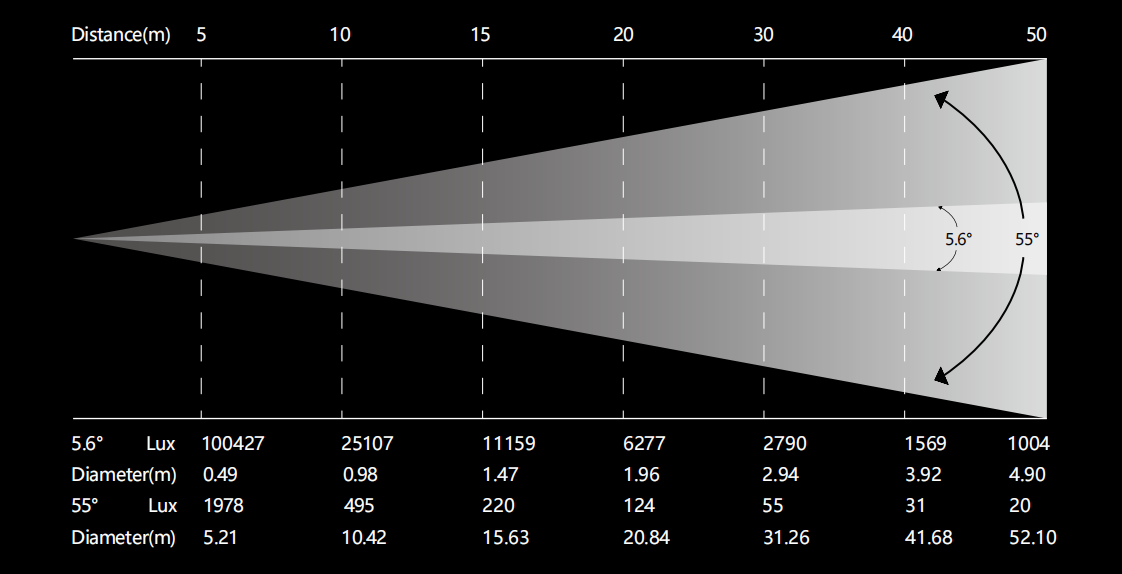

PHOTOMETRICS |
 |
