CINDY logo

CL-1800 BSWF
CL-1800 BSWF
CL-1800 BSWF
CL-1800 BSWF

  • OPTICAL

    1400W LED

  • LUMEN OUTPUT

    60,756 lm

  • ANGLE

    5.8°-53°

  • MEASUREMENT

    536*306*839mm

  • WEIGHT

    49KG

Product

icon

Parameters

Optical

Light Source: 1400W white LED module
Color Temperature: 7000K
Beam Angle: 5.8°-53°
Luminaire Output: 60,756lm
Illuminance (5.8°): 135,800lux @ 5m
Illuminance (53°): 4,765lux @ 5m
PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz

Dynamic effect

Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: CMY, CTO
Colors: 4 colors + CRI 90+8000K CTB+white, split colors, rainbow effects at variable speeds.
Gobos 1: 6 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2: 6 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Framing Shutters: 4 individual shutter blades, rotation of module is 120°
Animation: animations effects, continuous rotation at both speed.
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Iris: Motorized
Prism 1: 5-facet prism, rotating at variable speeds.
Prism 2: Linear prism, rotating at variable speeds.
Frost 1：Light frost
Frost 2：Heavy frost

Appearance

Size: 536*306*839mm
Weight: 49KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP rated: IP65/IP66

Connection

Control Protocol: DMX, RDM.
Only for Connector version: ArtNet, sACN
DMX channels: 38, 55
Connector version: 3-pin XLR, EtherCON, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz
Power: 2000W，8.69A @ 230V，50Hz
Working temperature: -40°-45°
Startup temperature: -20°-45°





CMY COLOR

CMY



CTO

CYAN

MAGENTA

YELLOW



2700K

0%

100%

0%

100%

0%

100%

0%

100%









COLOR WHEEL

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6

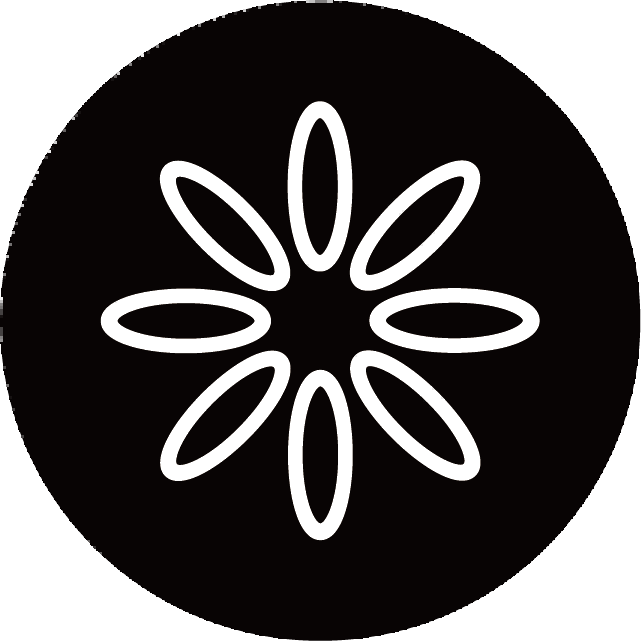

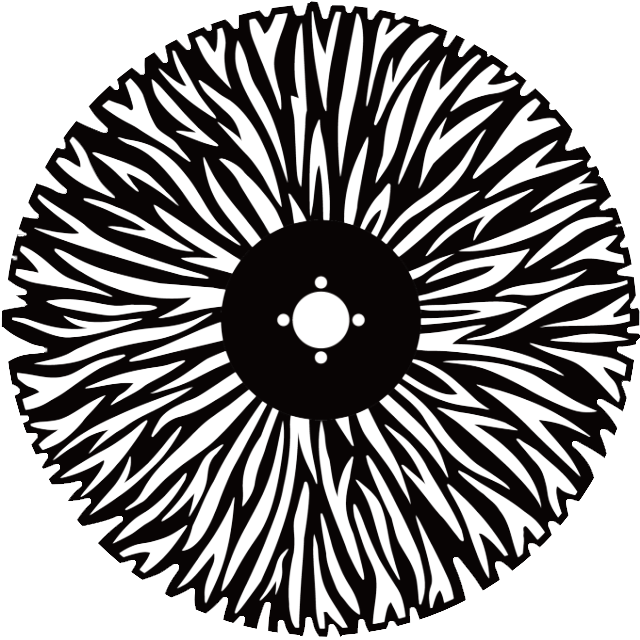

ROTATING GOBO-1

R GOBO 1-1

R GOBO 1-2

R GOBO 1-3

R GOBO 1-4

R GOBO 1-5

R GOBO 1-6

ROTATING GOBO-2

R GOBO 2-1

R GOBO 2-2

R GOBO 2-3

R GOBO 2-4

R GOBO 2-5

R GOBO 2-6







PRISM



FROST



5-CIRCULAR PRISM

5-LINEAR PRISM



LIGHT

HEAVY









FRAMING SYSTEM



±60° ROTATION









ANIMATION

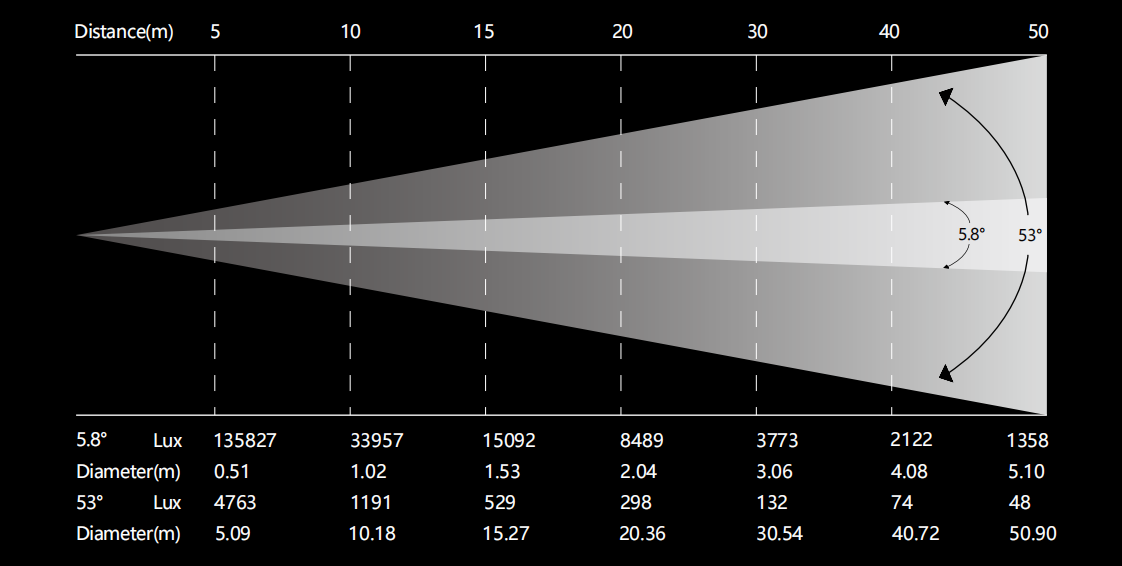

PHOTOMETRICS
