Products
-
-
OPTICAL
7x40W RGBW
-
LUMEN OUTPUT
3,100 lm
-
ANGLE
4°-52°
-
MEASUREMENT
244*160*369mm
-
WEIGHT
6KG
Product
Parameters
Optical

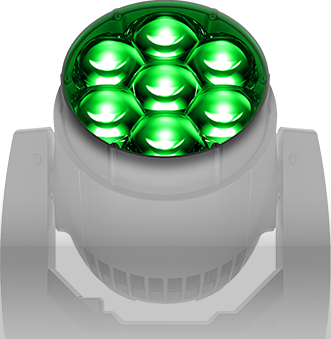

Light Source: 7 pcs 40W RGBW 4 in 1 LED
Beam Angle: 4°-52°
Luminaire Output: 3,100lm
Illuminance (4°): 11,000lux @ 5m
Illuminance (52°): 350lux@ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color Mixing：RGBW mixing or CMY mixing
Appearance
Size: 244*160*369mm
Weight: 6KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 14, 15, 19, 21
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 320W, 1.4A @ 230V, 50Hz
Temperature (Ambient): -5℃ to 45℃
 |
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |
ALL CONTROL 7x40W LED |
 |
PHOTOMETRICS |
 |
