OPTICAL

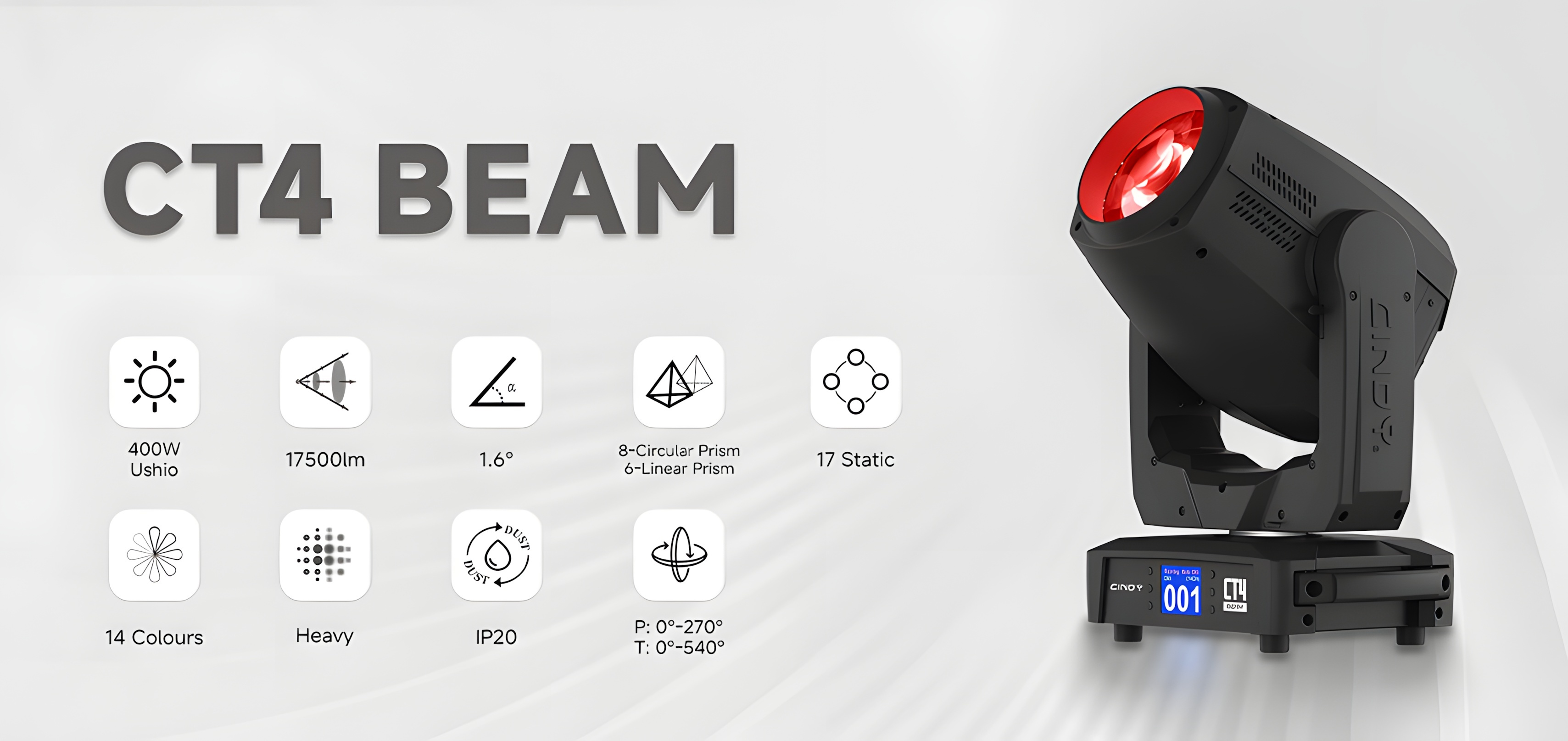

Ushio 400W
-
LUMEN OUTPUT
17,500 lm
-
ANGLE
1.6°
-
MEASUREMENT
394*255*598mm
-
WEIGHT
21KG
Product
Parameters
Optical
Light Source: Ushio 400W lamp
Color Temperature: 7,000K
Beam Angle: 1.6°
Luminaire Output: 17,500lm
Illuminance: 180,000lux @ 20m
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 14+white, split colors, rainbow effects at variable speeds.
Gobos: 17 static metal gobos+open, rainbow effects at variable speeds.
Dimmer: 0-100% electronics
Strobe: 0-15Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Frost: Motorized
Prism 1: 8-facet prism, rotating at variable speeds.
Prism 2: 24-facet prism, rotating at variable speeds.
Appearance
Size: 394*255*598mm
Weight: 21KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 18, 23
3 pin 5pin XLR input/output, ethernet input/output
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 580 W, 2.6A @ 230 V, 50 Hz
Temperature (Ambient): -5℃ to 45℃
 |
|
COLOR WHEEL | ||||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |
STATIC GOBO | |||||||||
 | |||||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 | S GOBO 8 | R GOBO 9 | R GOBO 10 |
 | ||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 |
PRISM | FROST | ||
 | |||
8-CIRCULAR PRISM | 6-LINEAR PRISM |
| HEAVY |
PHOTOMETRICS |
 |
