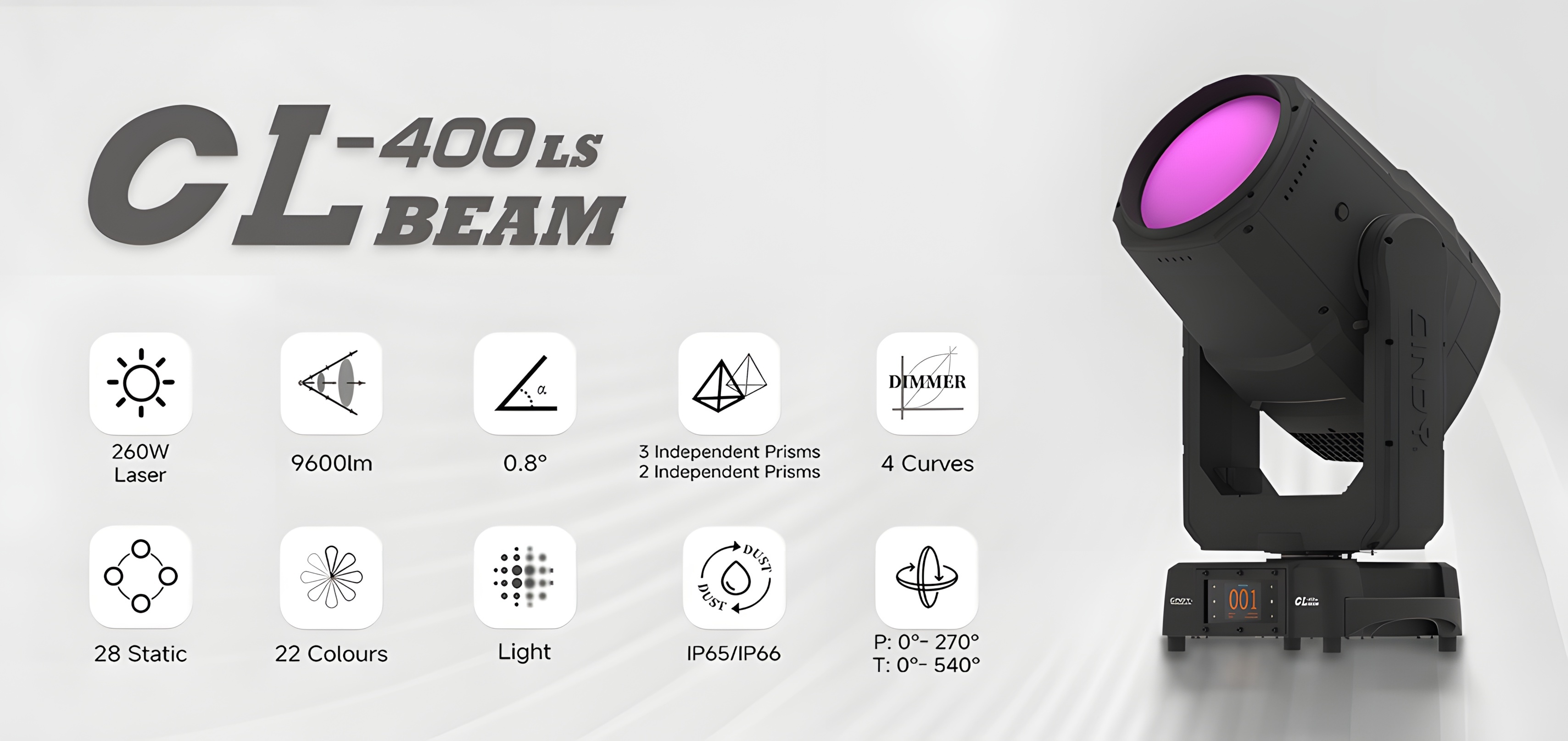

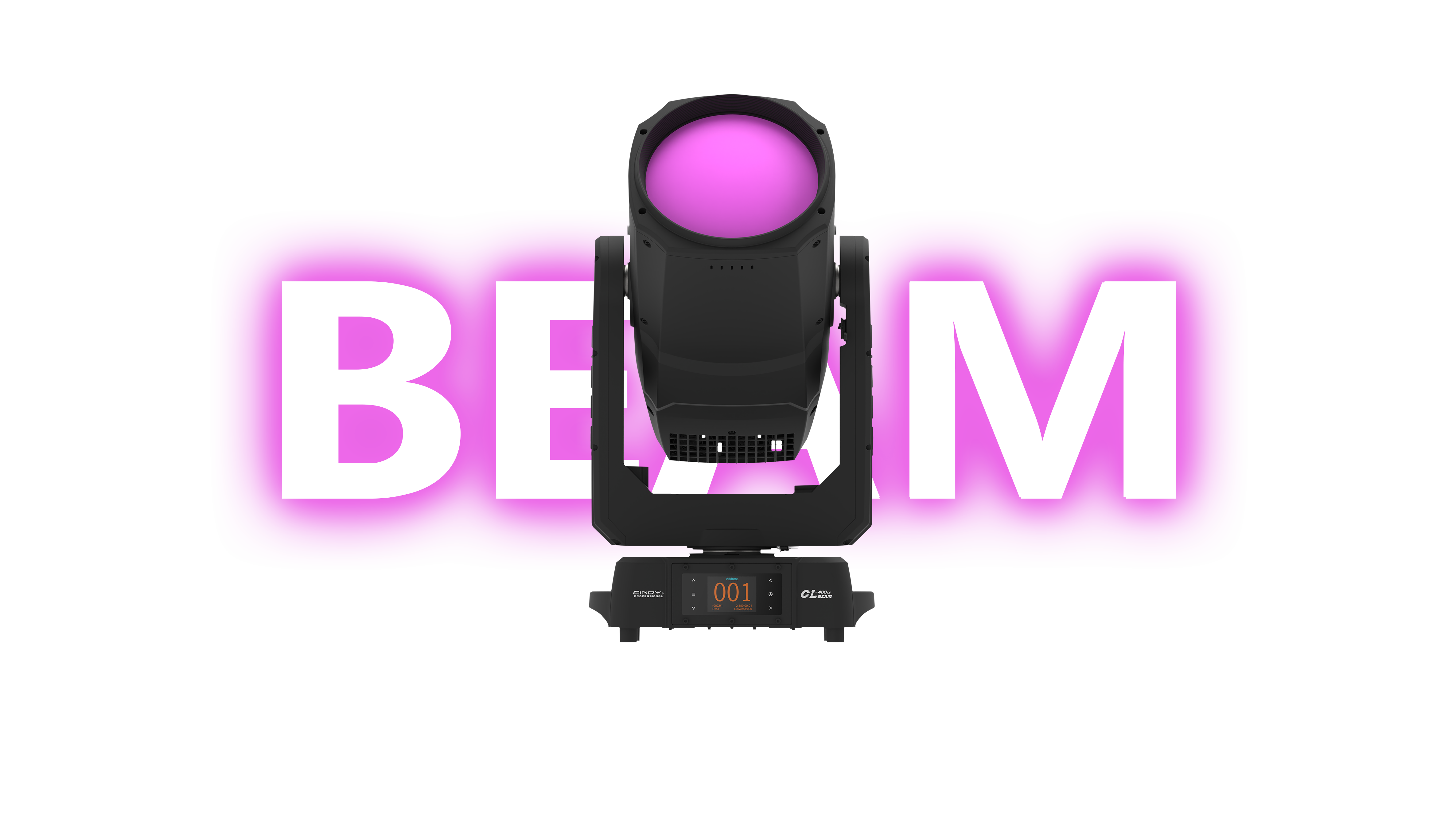

CL-400LS BEAM
CL-400LS BEAM
CL-400LS BEAM
CL-400LS BEAM

  • OPTICAL

    260W Laser

  • LUMEN OUTPUT

    9,600lm

  • ANGLE

    0.8°

  • MEASUREMENT

    382*303*713mm

  • WEIGHT

    29.2KG

Product

icon

Parameters

Optical

Light Source: 260W laser module
Color Temperature: 8,000 K
Beam angle: 0.8°
Luminaire Output: 9,600 lm
Illuminance (0.8°): 730,894 lux @ 20m
Illuminance (0.8°): 116,943 lux@ 50m

Dynamic effect

Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 21+linear CTO+white, split colors, rainbow effects at variable speeds.
Gobos: 28 static gobos+open, rainbow effects at variable speeds..
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Prism wheel 1: 3 independent prisms effects.
Prism wheel 2: 2 independent prisms effects.
Frost: Medium frost

Appearance

Size: 382*303*713mm
Weight: 29.2KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP rated: IP65/IP66

Connection

Control Protocol: DMX, RDM.
Only for Connector version: ArtNet, sACN
DMX Channels: 17, 19
Connector version: 3-pin XLR, EtherCON, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz
Power and Current: 500W, 1.7A @ 230V, 50Hz
Working temperature: -40℃-45℃
Startup temperature: -20℃-45℃





COLOR WHEEL

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6

COLOR 7

COLOR 8

COLOR 9

COLOR 10

COLOR 11

COLOR 12

COLOR 13

COLOR 14

COLOR 15

COLOR 16

COLOR 17

COLOR 18

COLOR 19

COLOR 20

COLOR 21

COLOR 22









STATIC GOBO

S GOBO 1

S GOBO 2

S GOBO 3

S GOBO 4

S GOBO 5

S GOBO 6

S GOBO 7

S GOBO 8

S GOBO 9

S GOBO 10

S GOBO 11

S GOBO 12

S GOBO 13

S GOBO 14

S GOBO 15

S GOBO 16

S GOBO 17

S GOBO 18

S GOBO 19

S GOBO 20

S GOBO 21

S GOBO 22

S GOBO 23

S GOBO 24

S GOBO 25

S GOBO 26

S GOBO 27

S GOBO 28









PRISM

WHEEL 1-1

WHEEL 1-2

WHEEL 1-3

WHEEL 2-1

WHEEL 2-2









FROST

LIGHT

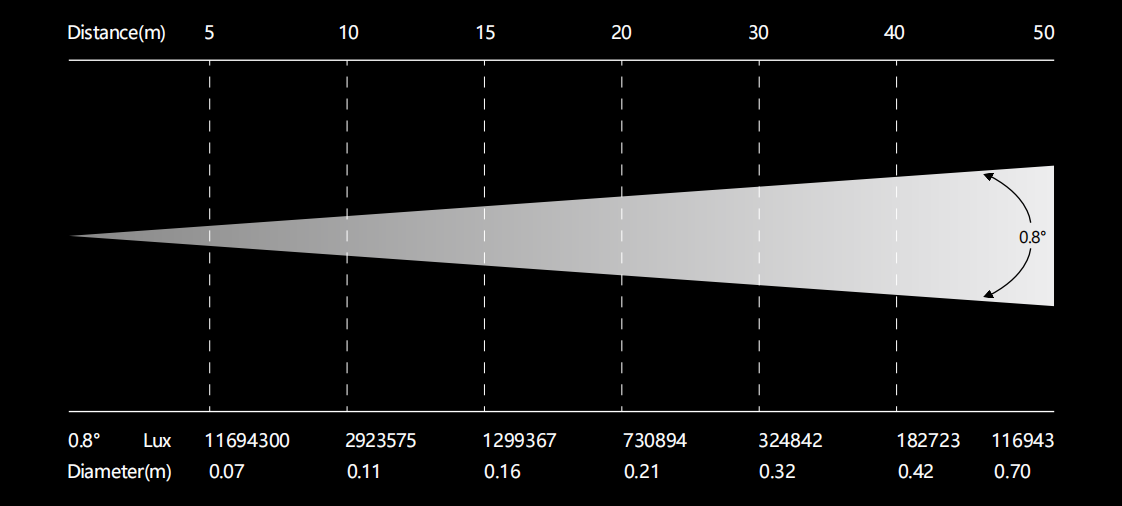

PHOTOMETRICS
