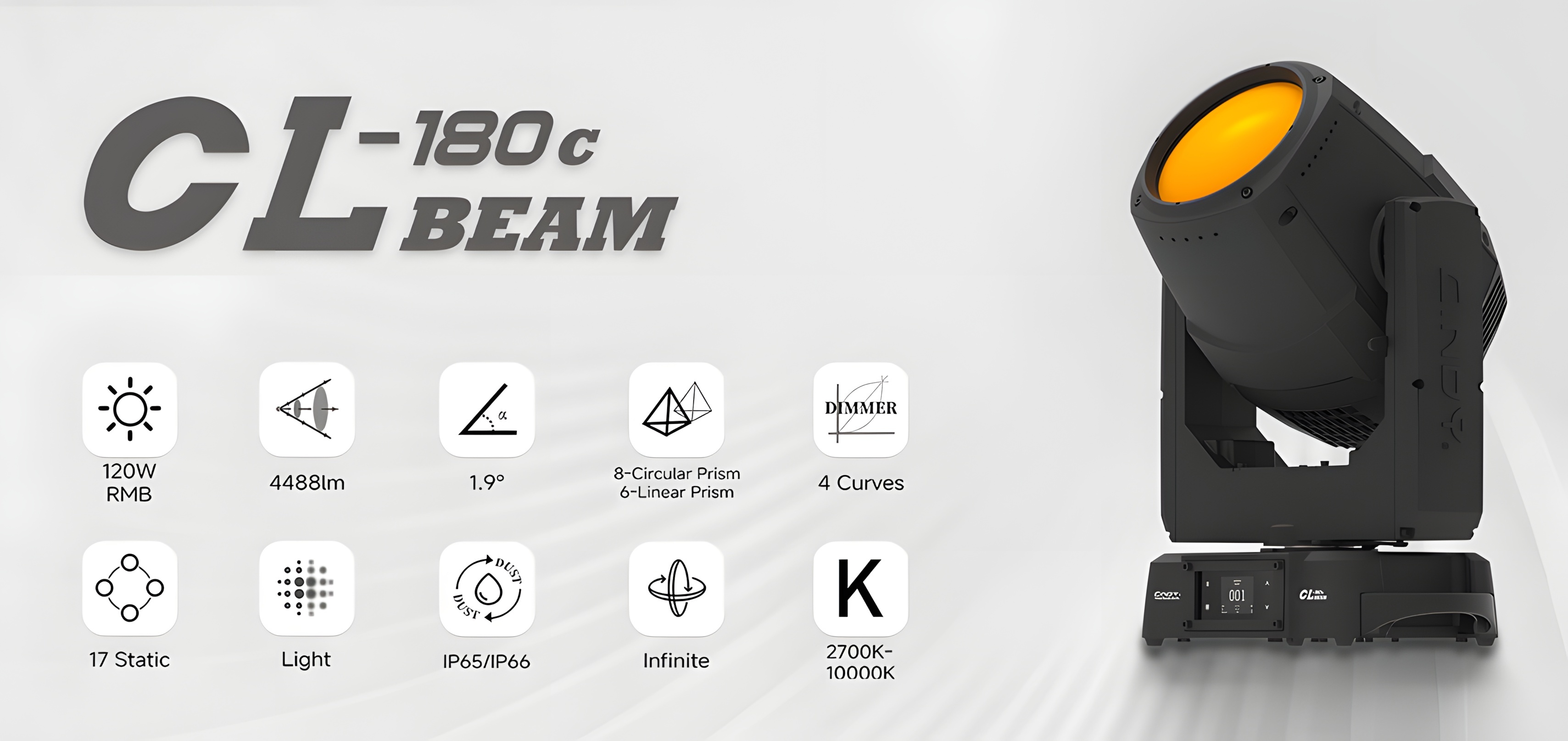

OPTICAL
120W RMB
-
LUMEN OUTPUT
4,488 lm
-
ANGLE
1.9°
-
MEASUREMENT
299*212*446mm
-
WEIGHT
12.5KG
Product
Parameters
Optical
Light Source: 120W RMB multi-color module
Color Temperature: 10.398 K at full
Beam Angle: 1.9°
Luminaire Output: 4,488 lm
Illuminance (1.9°): 137,950 lux @ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°, continuous rotation at variable speeds.
Selectable Tilt Ranges: 90°, 180°, 270°, continuous rotation at variable speeds.
Gobos: 17 static glass gobos+open, rainbow effects at variable speeds.
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Prism1: 6-facet prism, rotating at variable speeds.
Prism2: 8-facet prism, rotating at variable speeds.
Frost: Light frost
Appearance
Size: 299*212*446mm
Weight: 12.5KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP rated: IP65/IP66
Connection
Control Protocol: DMX, RDM
DMX Channels: 21, 25
Connector version: 3-pin XLR, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 200W, 0.87A @ 230V, 50Hz
Working temperature: -40°-45°
Startup temperature: -20°-45°
 |
|

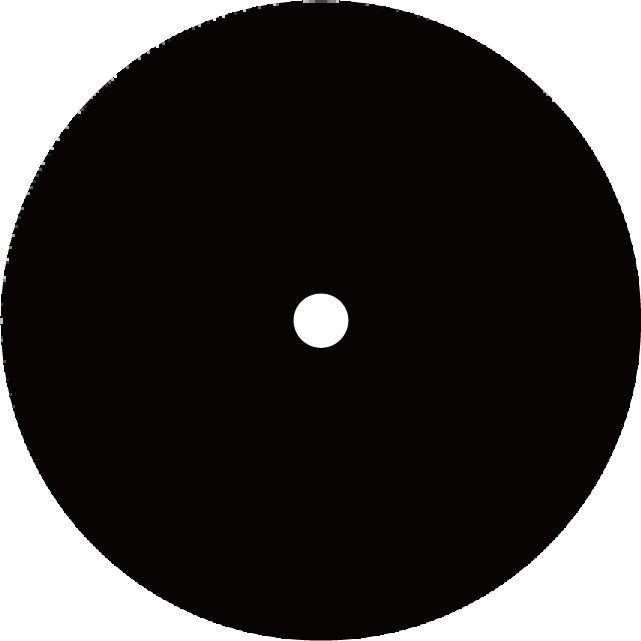

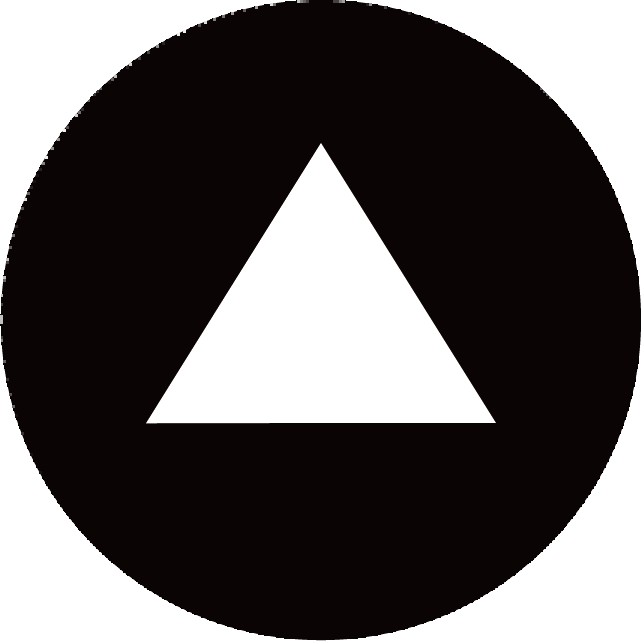

STATIC GOBO | ||||||||
 | ||||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 | S GOBO 8 | S GOBO 9 |
 | |||||||
S GOBO 10 | S GOBO 11 | S GOBO 12 | S GOBO 13 | S GOBO 14 | S GOBO 15 | S GOBO 16 | S GOBO 17 |
PRISM | FROST | ||
 |  | ||
8-CIRCULAR PRISM | 6-LINEAR PRISM |
| LIGHT |
PHOTOMETRICS |
