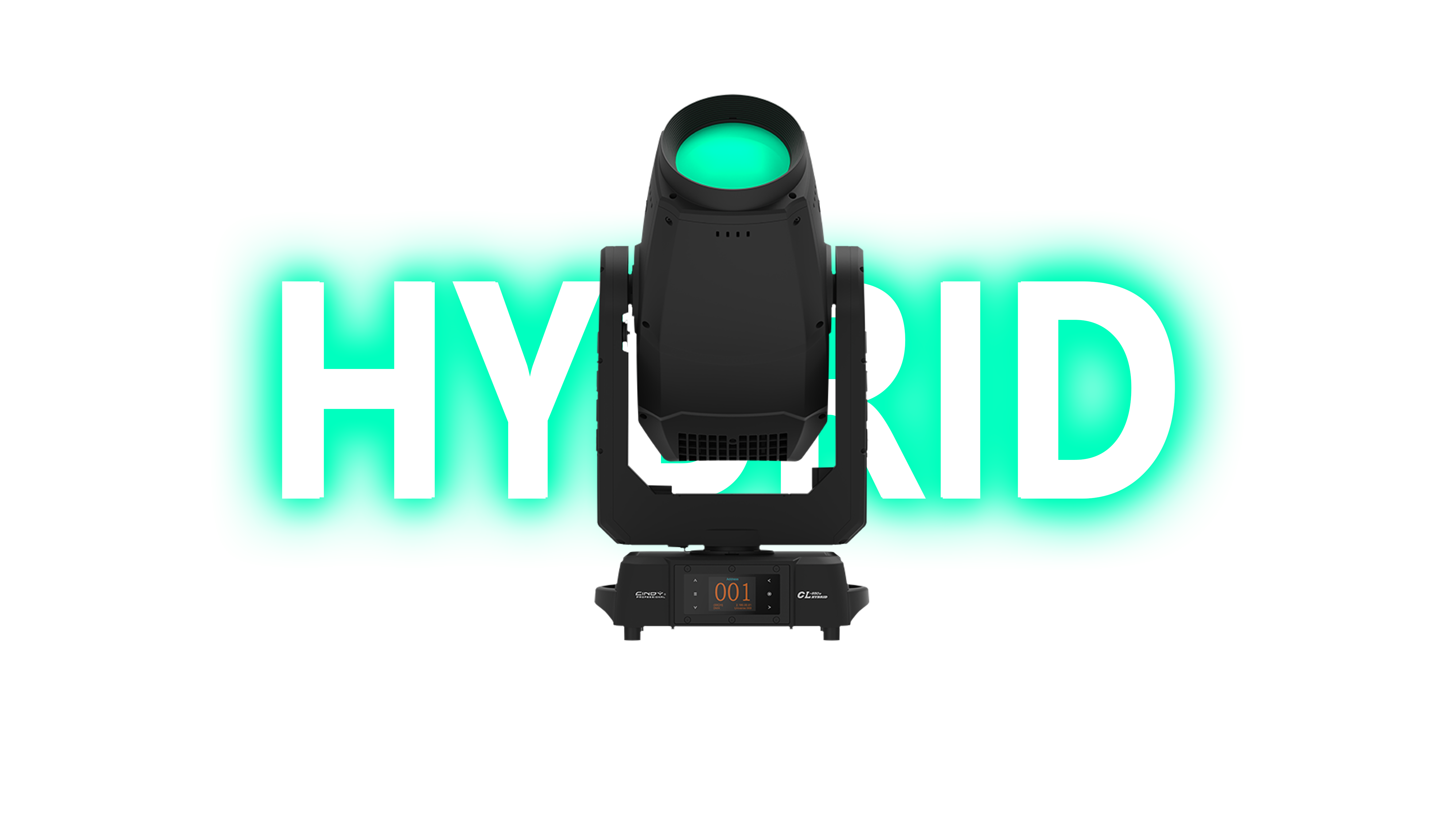

CL-650D HYBRID
CL-650D HYBRID
CL-650D HYBRID
CL-650D HYBRID

  • OPTICAL

    420W Osram Sirius HRI

  • LUMEN OUTPUT

    30,978 lm

  • ANGLE

    0.8°-40.8°

  • MEASUREMENT

    382*275*754mm

  • WEIGHT

    29.6KG

Product

icon

Parameters

Optical

Light Source: 420W Osram Sirius HRI Lamp
Color Temperature: 7,000 K
Beam angle: 0.8°-40.8°
Luminaire Output: 30,978 lm
Illuminance (0.8°): 257,383 lux @ 15m
Illuminance (40.8°): 4,978 lux@ 5m

Dynamic effect

Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: CMY, CTO
Colors: 14+white, split colors, rainbow effects at variable speeds.
Gobos 1: 8 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2: 16 static gobos+open, rainbow effects at variable speeds.
Animation: animations effects, continuous rotation at both speed.
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-15Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Prism1: 6-facet prism, rotating at variable speeds.
Prism2: 8-facet prism, rotating at variable speeds.
Frost: Medium frost

Appearance

Size: 382*275*754mm
Weight: 29.6KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP rated: IP65/IP66

Connection

Control Protocol: DMX, RDM.
Only for Connector version: ArtNet, sACN
DMX Channels: 24, 29
Connector version: 3-pin XLR, EtherCON, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz
Power and Current: 650W, 2.8A @ 230V, 50Hz
Working temperature: -40°-45°
Startup temperature: -20°-45°

IP Full Protection Level Easily Handles Various Unexpected Events and Challenges



CMY COLOR

CMY



CTO

CYAN

MAGENTA

YELLOW



2700K


0%

100%

0%

100%

0%

100%

 0%

100%









Color Wheel

COLOR WHEEL

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6

COLOR 7

COLOR 8

COLOR 9

COLOR 10

COLOR 11

COLOR 12

COLOR 13

COLOR 14

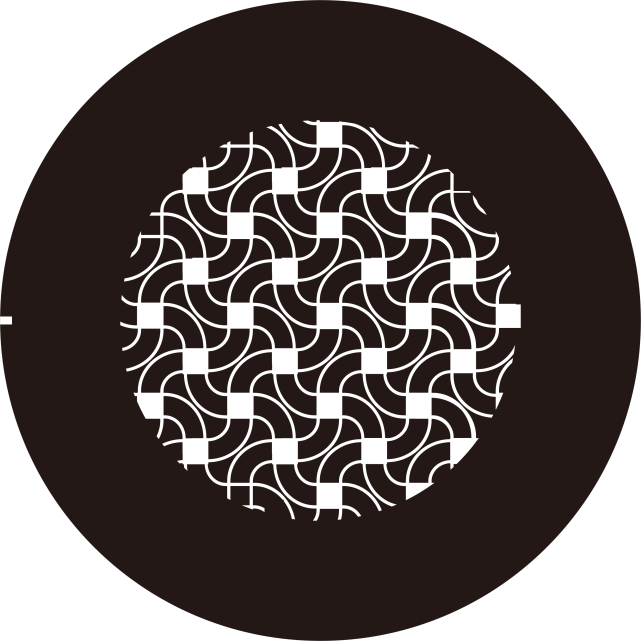

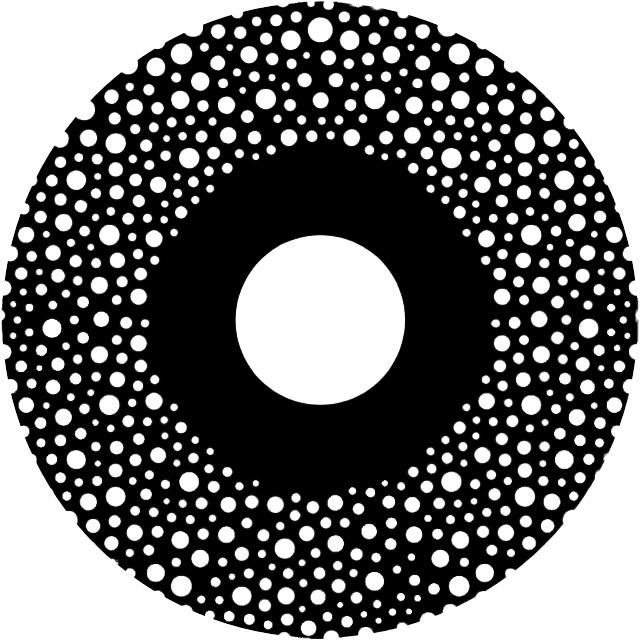

Rotating Disc

ROTATING GOBO

R GOBO 1

R GOBO 2

R GOBO 3

R GOBO 4

R GOBO 5

R GOBO 6

R GOBO 7

R GOBO 8

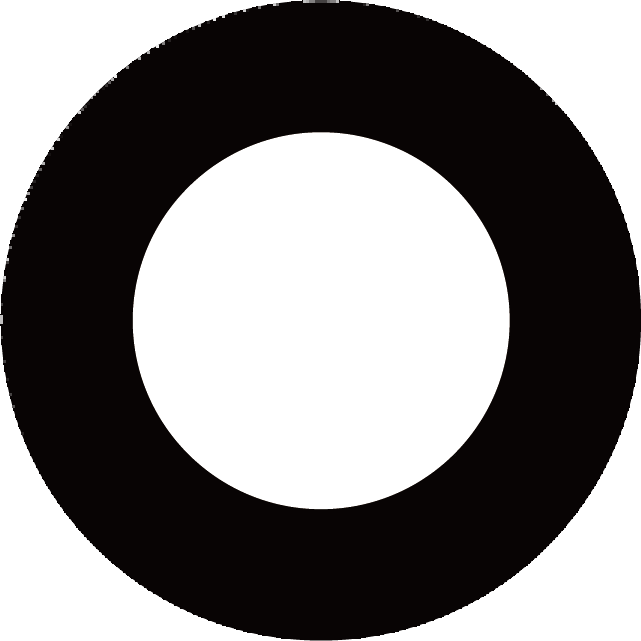

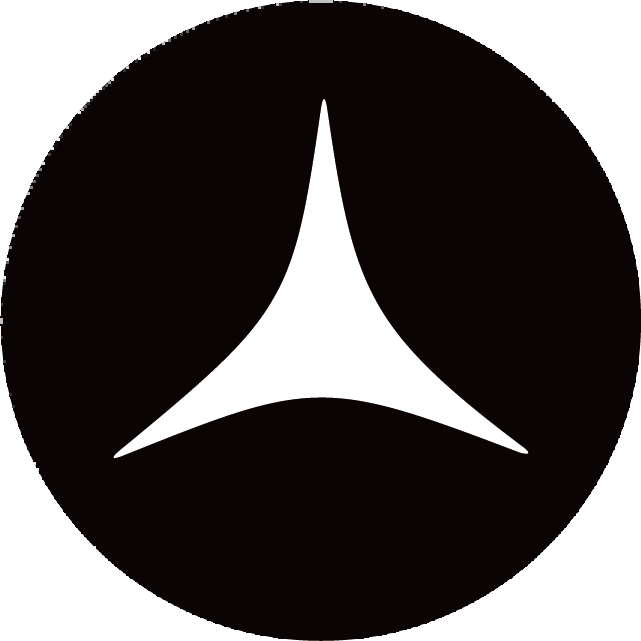

Fixed Disc

STATIC GOBO

S GOBO 1

S GOBO 2

S GOBO 3

S GOBO 4

S GOBO 5

S GOBO 6

S GOBO 7

S GOBO 8

S GOBO 9

S GOBO 10

S GOBO 11

S GOBO 12

S GOBO 13

S GOBO 14

S GOBO 15

S GOBO 16









Prism

PRISM



Frost

FROST



8-CIRCULAR PRISM

6-LINEAR PRISM



MEDIUM









Animation Wheel

ANIMATION









Illuminance Diagram

PHOTOMETRICS
