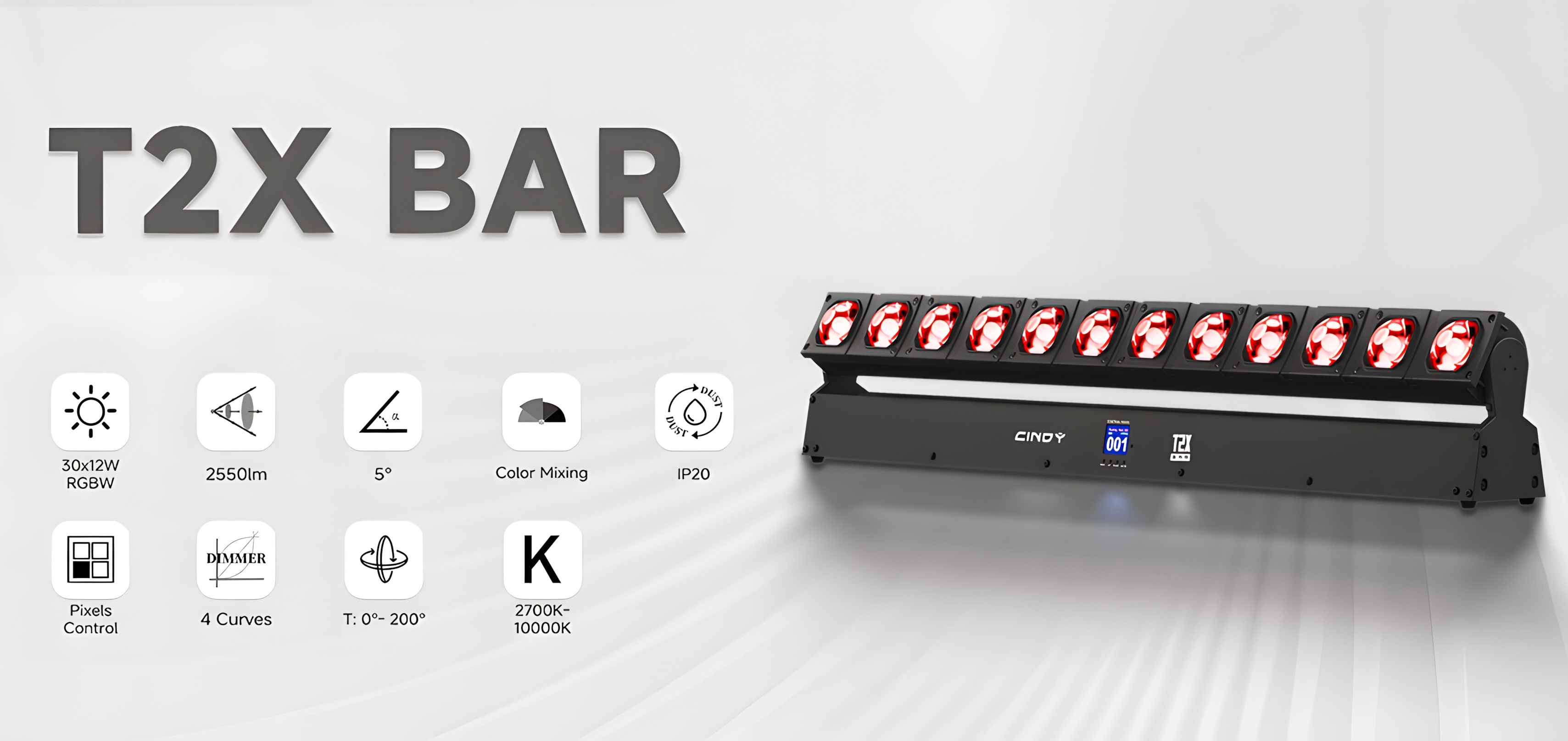

OPTICAL

12x15W RGBW
LUMEN OUTPUT

2,550 lm
ANGLE

5°
MEASUREMENT

996*95*179mm
WEIGHT

9KG

Product

Parameters

Optical

Light Source: 12 pcs 15W RGBW 4 in 1 LED
Beam Angle: 5°
Luminaire Output: 2,550lm

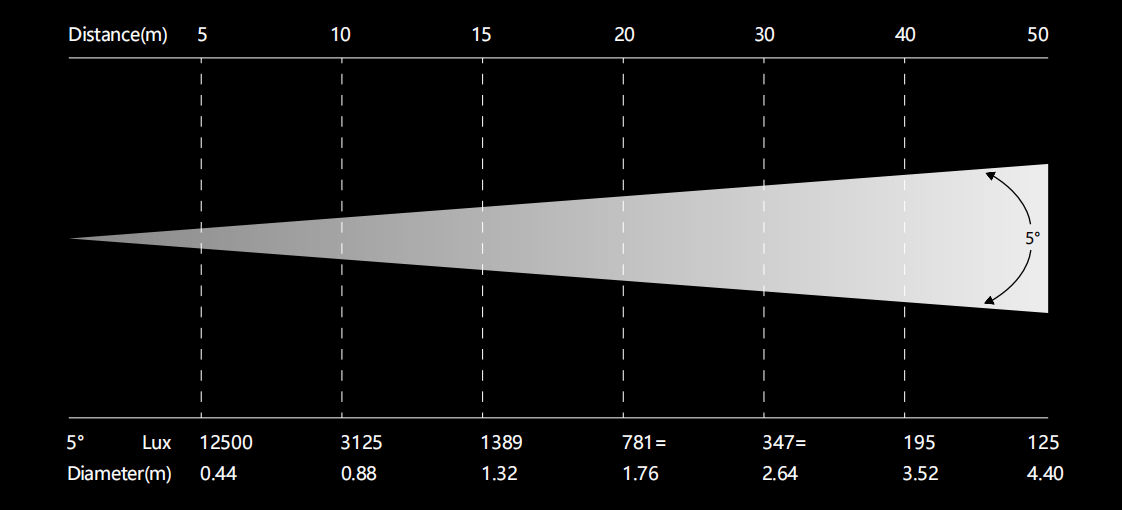

Illuminance (5°): 12,500lux @ 5m

Dynamic effect

Selectable Tilt Ranges: 90°, 180°, 270°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Pan/Tilt/Color Blackout Optional

Appearance

Size: 996*95*179mm
Weight: 9KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer

Connection

Control Protocol: DMX, RDM
DMX Channels: 18, 71, 83, 128
Control Mode: DMX, Manual, Auto
3 pin XLR input

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz
Power and Current: 190W, 1A @ 230V, 50Hz
Temperature (Ambient): -5℃-40℃

Technology

Support

Technical documents are updated irregularly

USER MANUAL

T2X BAR#MANUAL-CN (size:786.9KB)

LIBRARY

T2X BAR#GDTF_Build_No_1 (size:2.6MB)

USER MANUAL

T2X BAR#MANUAL-EN (size:635.0KB)

CHANNEL CHART

T2X BAR#DMX-EN (size:400.7KB)

LIBRARY

T2X BAR#MA2 LIBRARY (size:25.8KB)

CHANNEL CHART

T2X BAR#DMX-CN (size:408.9KB)

DRAWING

T2X BAR#CAD (size:362.8KB)

LIBRARY

T2X BAR#TIGER (size:)
