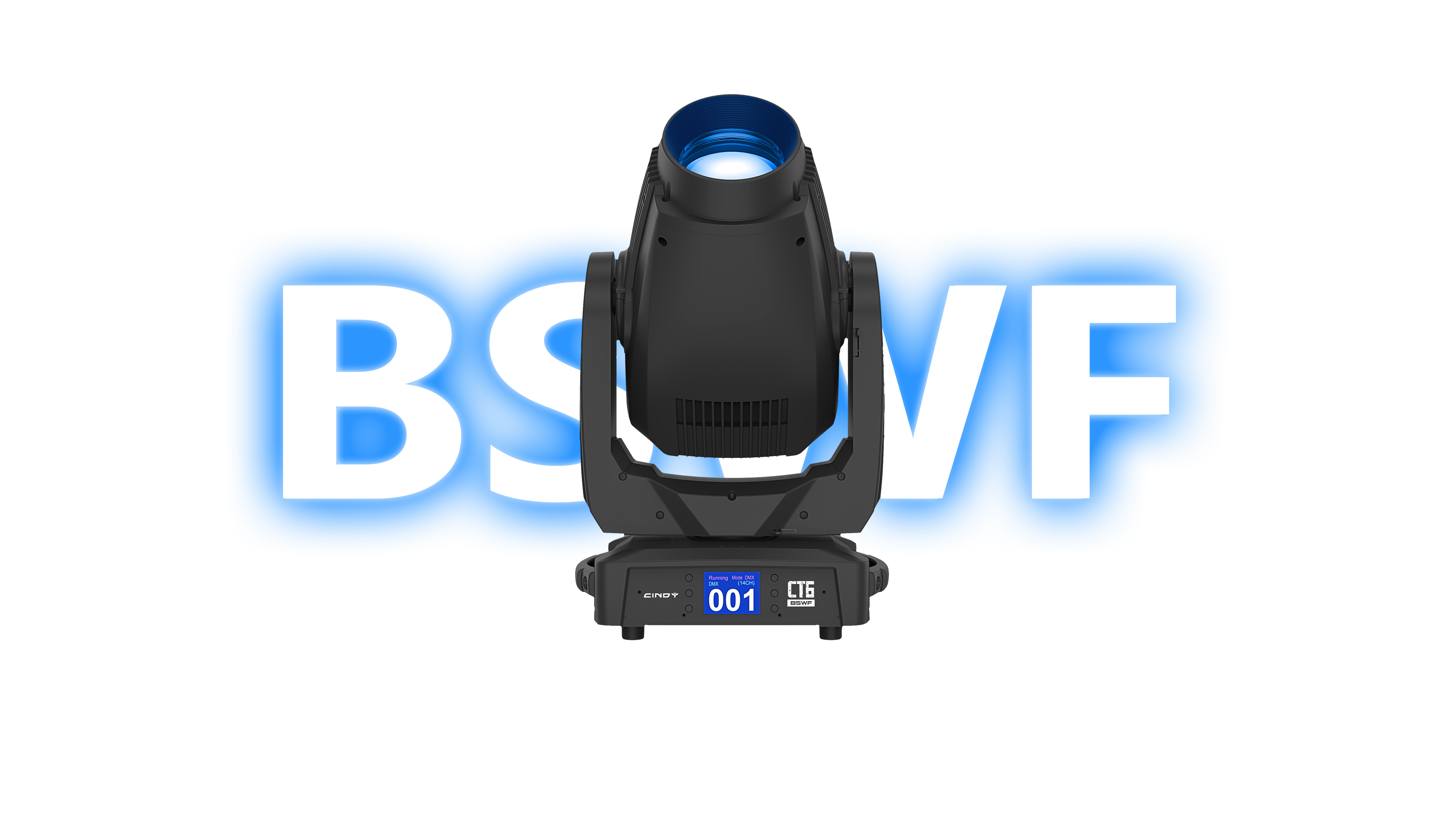

CT6 BSWF
CT6 BSWF
CT6 BSWF
CT6 BSWF

  • OPTICAL

    600W LED

  • LUMEN OUTPUT

    23.000 lm

  • ANGLE

    6.5°-52°

  • MEASUREMENT

    394*259*670mm

  • WEIGHT

    26KG

Product

icon

Parameters

Optical

Light Source: 600W white LED module
High CRI Mode：Ra>90
Color Temperature: 7,000 K
Beam Angle: 6.5°-52°
Luminaire Output: 23,000lm
Illuminance (6.5°): 55,800lux @ 5m
Illuminance (52°): 2,050lux @ 5m
PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz

Dynamic effect

Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 5+CTB+CRI+white, split colors, rainbow effects at variable speeds.
Colors: CMY, CTO
Gobos 1: 7 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2: 7 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Framing Shutters: 4 individual shutter blades, rotation of module is 120°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5-facet prism, rotating at variable speeds.

Appearance

Size: 394*259*670mm
Weight: 26KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer

Connection

Control Protocol: DMX, RDM, ArtNet, sACN, WDMX(*optional)
DMX Channels: 33, 50
3 pin/5 pin XLR input/output ethernet input/output

Electrical / Temperature

Input Voltage: 100V-240V, 50/60Hz
Power and Current: 820W, 3.6A @ 230V, 50Hz
Temperature (Ambient): -5° to 45°





CMY COLOR

CMY



CTO

CYAN

MAGENTA

YELLOW



2700K


0%

100%

0%

100%

0%

100%

 0%

100%











COLOR WHEEL

COLOR 1

COLOR 2COLOR 3COLOR 4COLOR 5COLOR 6COLOR 7











ROTATING GOBO-1

R GOBO 1-1

R GOBO 1-2R GOBO 1-3R GOBO 1-4R GOBO 1-5R GOBO 1-6R GOBO 1-7

ROTATING GOBO-2

R GOBO 2-1

R GOBO 2-2

R GOBO 2-3

R GOBO 2-4

R GOBO 2-5

R GOBO 2-6

R GOBO 2-7









PRISM



FROST



5-CIRCULAR PRISM



LIGHT











FRAMING SYSTEM




±60° ROTATION











PHOTOMETRICS
