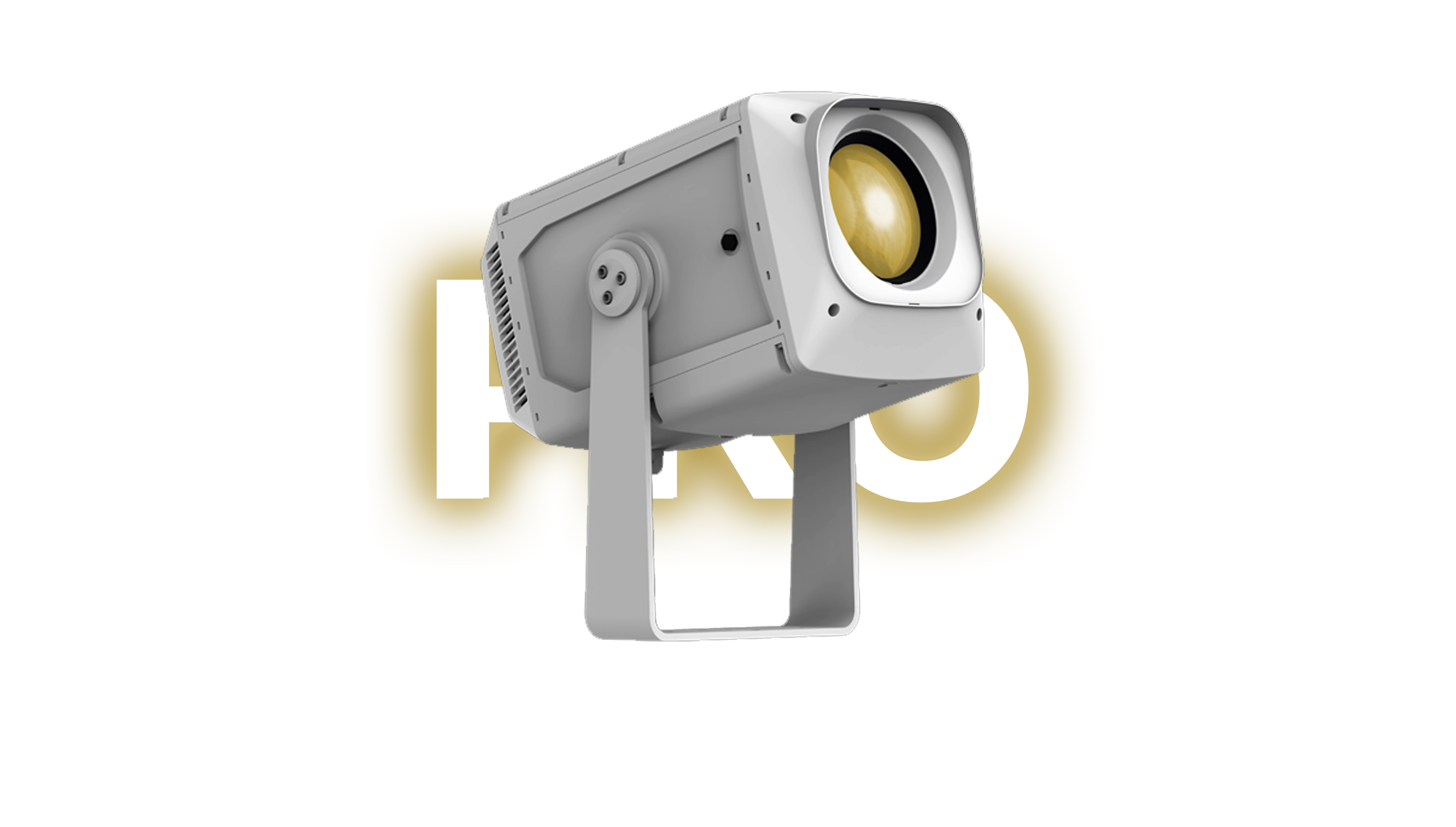

CL-600M PRO
CL-600M PRO
CL-600M PRO
CL-600M PRO

  • OPTICAL

    600W LED

  • LUMEN OUTPUT

    29,700 lm

  • ANGLE

    5.6°-55°

  • MEASUREMENT

    510*321*293mm

  • WEIGHT

    21KG

Product

icon

Parameters

Optical

Light Source: 600W white LED module

Color Temperature: 7000K

Beam Angle: 5.6°-55°

Luminaire Output: 29,700lm

Illuminance (5.6°): 100,427lux @ 5m

Illuminance (55°): 1,978lux @ 5m

PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz

Dynamic effect

Colors: CMY, CTO

Colors: 5 colors + CRI 90+8000K CTB+white, split colors, rainbow effects at variable speeds.

Gobos 1: 7 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds

Gobos 2: 7 rotating metal gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds

Manual framing shutters: 4 individual shutter blades, rotation of module is +/-25°

Animation: animations effects, continuous rotation at both speed.

Dimmer: 0-100% electronics, 4 dimming curves options.

Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.

Focus: Motorized

Zoom: Motorized

Prism: 4-facet prism, rotating at variable speeds.

Frost：light frost

Appearance

Size: 510*321*293mm

Weight: 21KG

Housing Colors: Black

Housing Material: Magnesium alloy

IP rated: IP66

Connection

Control Protocol: DMX, RDM.

Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz

Power: 900W，3.4A @ 230V，50Hz

Working temperature: -40℃-45℃

Startup temperature: -20℃-45℃





CMY COLOR

CMY



CTO

CYAN

MAGENTA

YELLOW



0%

100%

0%

100%

0%

100%

 0%

100%







COLOR WHEEL

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6

COLOR 7







ROTATING GOBO-1

R GOBO 1-1

R GOBO 1-2

R GOBO 1-3

R GOBO 1-4

R GOBO 1-5

R GOBO 1-6

R GOBO 1-7

ROTATING GOBO-2

R GOBO 2-1

R GOBO 2-2

R GOBO 2-3

R GOBO 2-4

R GOBO 2-5

R GOBO 2-6

R GOBO 2-7







PRISM



FROST



4-CIRCULAR PRISM



LIGHT







MANUAL FRAMING SYSTEM



±60° ROTATION







ANIMATION

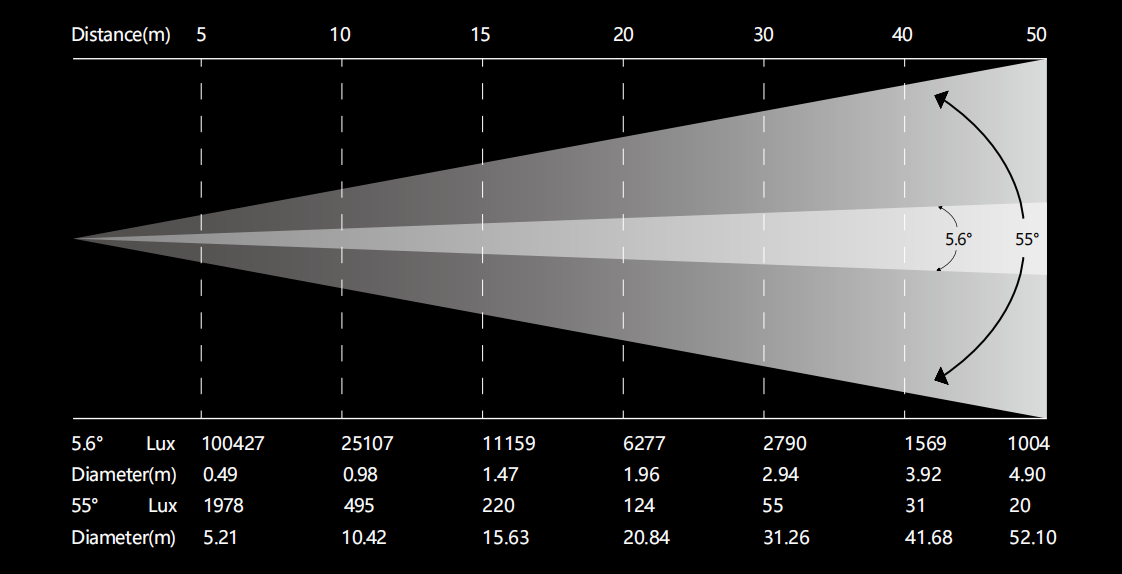

PHOTOMETRICS
