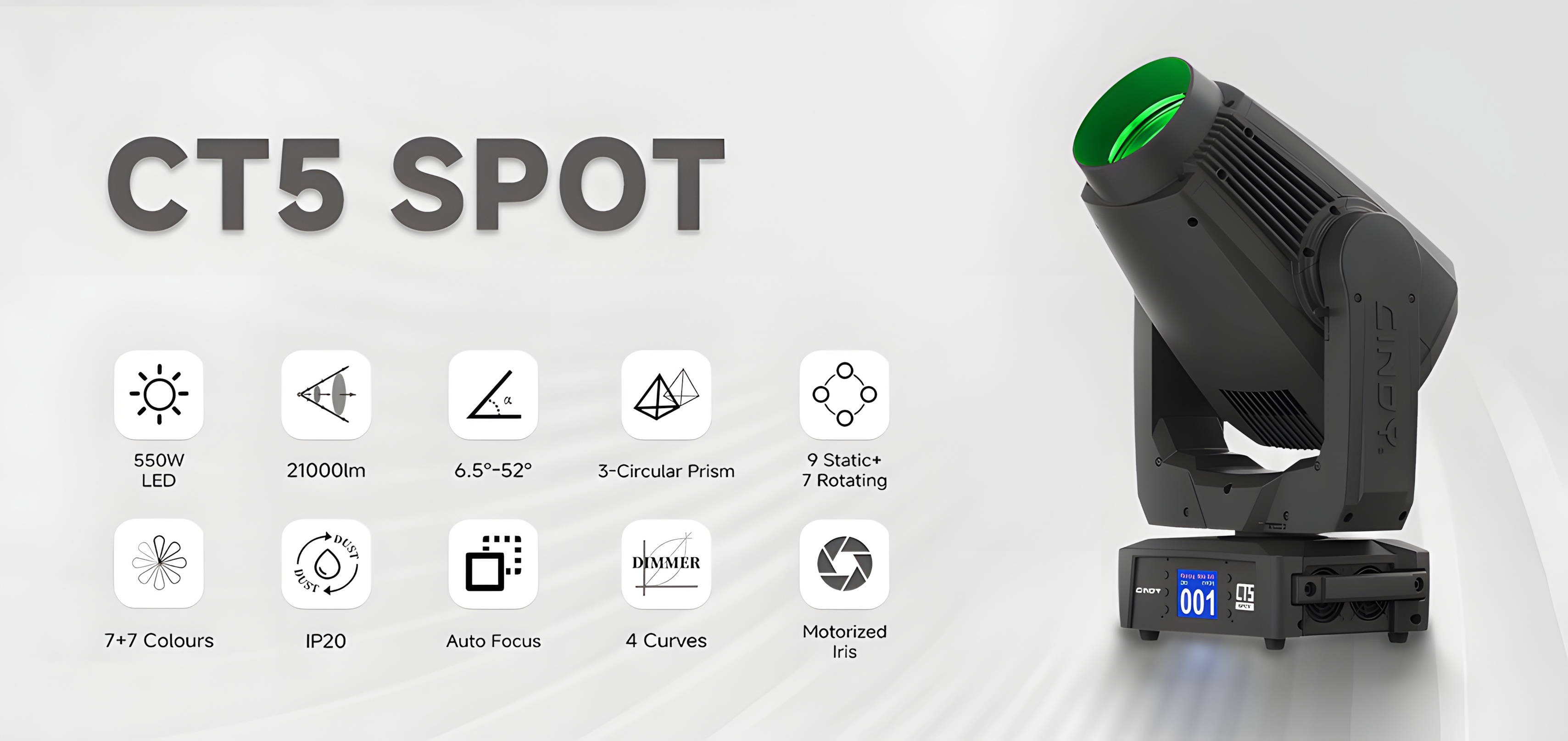

OPTICAL
550W LED
-
LUMEN OUTPUT
22,000 lm
-
ANGLE
6.5-52°
-
MEASUREMENT
359*241*639mm
-
WEIGHT
21KG
Product
Parameters
Optical
Light Source: 550W white LED module
Color Temperature: 7,000K
Beam Angle: 6.5°-52°
Luminaire Output: 22,000lm
Illuminance (6.5°): 48,000lux @ 5m
Illuminance (52°): 2,050lux @ 5m
PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors 1：5+3200K CTO+8000K CTB+white, split colors, rainbow effects at variable speeds
Colors 2：7+white, split colors, rainbow effects at variable speeds
Gobos 1: 7 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2：9 static metal gobos +open, rainbow effects at variable speeds
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds
Focus: Motorized
Zoom: Motorized
Iris: Motorized
Prism: 3-facet prism, rotating at variable speeds.
Appearance
Size: 359*241*639mm
Weight: 21KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM, ArtNet, sACN, WDMX(*optional)
DMX Channels: 19, 24
3 pin/5 pin XLR input/output, ethernet input/output
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power: 670W
Temperature (Ambient): -5° to 45°
|
COLOR WHEEL-1 | ||||||
 | ||||||
COLOR 1-1 | COLOR 1-2 | COLOR 1-3 | COLOR 1-4 | COLOR 1-5 | COLOR 1-6 | COLOR 1-7 |
COLOR WHEEL-2 | ||||||
COLOR 2-1 | COLOR 2-2 | COLOR 2-3 | COLOR 2-4 | COLOR 2-5 | COLOR 2-6 | COLOR 2-7 |

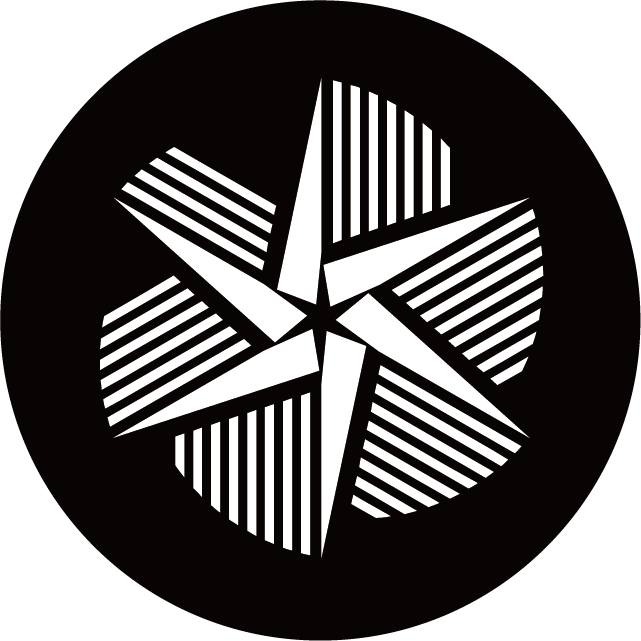

ROTATING GOBO | ||||||
 | ||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 |
STATIC GOBO | ||||||||
 | ||||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 | S GOBO 8 | S GOBO 9 |
PRISM |
 |
3-CIRCULAR PRISM |

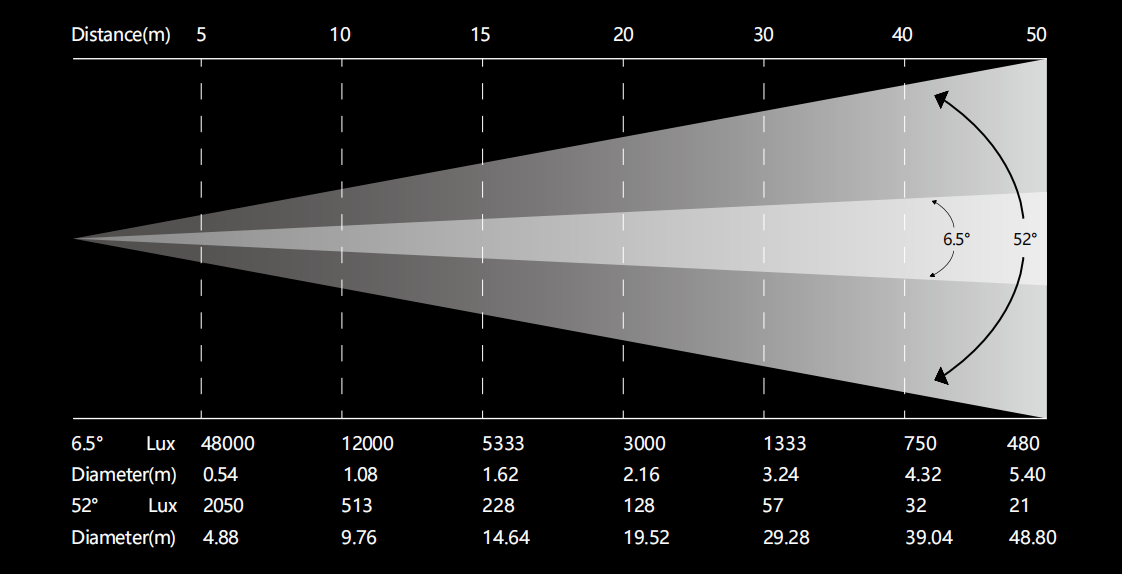

PHOTOMETRICS |
 |
