OPTICAL
Ushio 400W
-
LUMEN OUTPUT
12,500 lm
-
ANGLE
1.6°
-
MEASUREMENT
352*255*644mm
-
WEIGHT
23KG
Product
Parameters
Optical
Light Source: Ushio 400W lamp
Color Temperature: 7,000K
Beam Angle: 1.6°
Luminaire Output: 12,500lm
Illuminance: 160,000lux@20m
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 13+white, split colors, rainbow effects at variable speeds.
Gobos: 17 static metal gobos+open, rainbow effects at variable speeds.
Dimmer: 0-100% electronics
Strobe: 0-15Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Frost: Motorized
Prism 1: 8-facet prism, rotating at variable speeds.
Prism 2: 6-facet linear prism, rotating at variable speeds.
Appearance
Size: 352*255*644mm
Weight: 23KG
Housing Colors: Black
Housing material: Aluminum alloy
IP rated: IP66
Connection
Control Protocol: DMX, RDM
DMX Channels: 16, 18
IP65 rated 3 pin XLR input/output
USB update enabled
Electrical / Temperature
Input Voltage: AC 100V-240V, 50/60Hz
Power: 640 W
Working temperature: -40℃-45℃
Startup temperature: -20℃-45℃
 |
|
COLOR WHEEL | ||||||
 | ||||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |
 | |||||
COLOR 8 | COLOR 9 | COLOR 10 | COLOR 11 | COLOR 12 | COLOR 13 |
STATIC GOBO | ||||||||
 | ||||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 | S GOBO 8 | S GOBO 9 |
 | |||||||
S GOBO 10 | S GOBO 11 | S GOBO 12 | S GOBO 13 | S GOBO 14 | S GOBO 15 | S GOBO 16 | S GOBO 17 |
PRISM | FROST | ||
 |  | ||
8-CIRCULAR PRISM | 6-LINEAR PRISM |
| HEAVY |

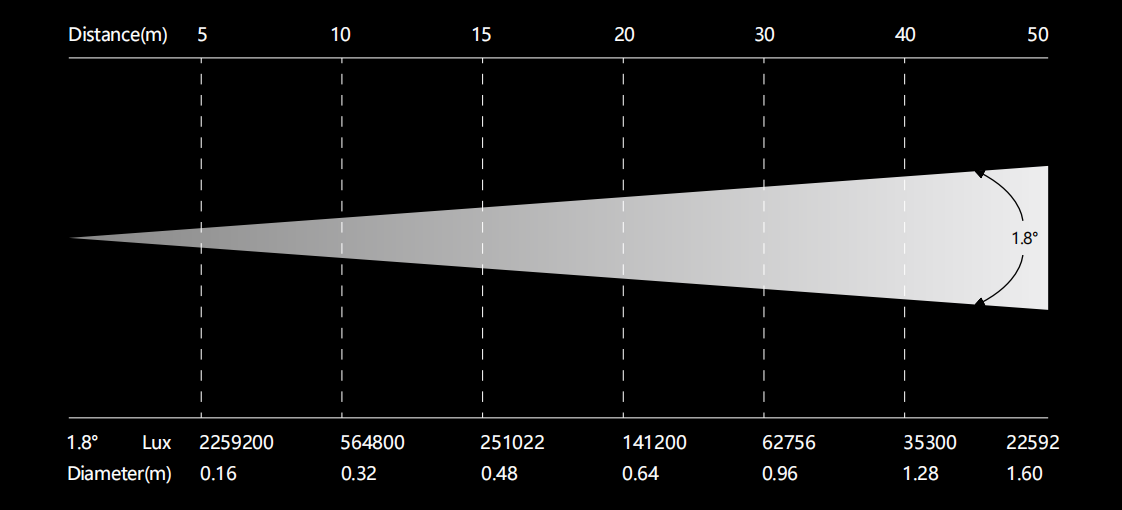

PHOTOMETRICS |
 |
