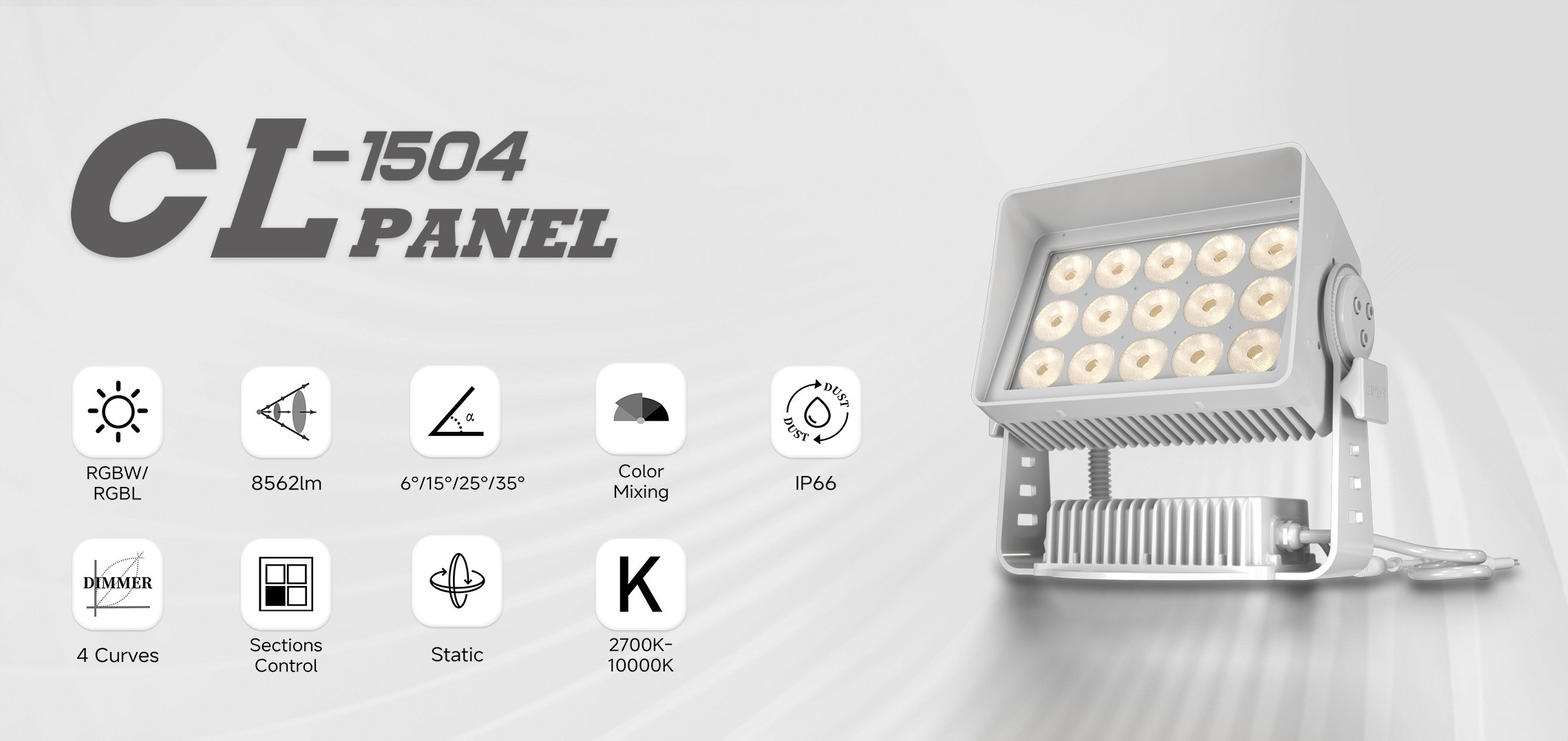

Home

OPTICAL

15x RGBL/RGBW
LUMEN OUTPUT

8,562 lm
ANGLE

6°, 15°, 25°, 35°
MEASUREMENT

335*200*285mm
WEIGHT

7.7KG

Product

Parameters

Optical

Light Source: 15 pcs RGBL/RGBW 4 in 1 LED

LER (Limunous Efficiency Ratio): 57.1 lm/W

Color Temperature: 1800-10000K

Optics Angle: 6°/15°/25°/35°

Luminaire Output: 8,562lm

PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz

Dynamic effect

Dimmer: 0-100% electronics, 4 dimming curves options.

Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.

LED：3 sections

Appearance

Size: 335*200*285mm

Weight: 7.7KG

Housing Colors: sky Grey

Housing Material: Magnesium alloy

IP rated: IP66

Connection

Control Protocol: DMX, RDM.

Input cable tail with 3-pin XLR connectors, power input cable tail

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz

Power: 150W

Working temperature: -40℃-45℃

Startup temperature: -20℃-45℃

Technology

Support

Technical documents are updated irregularly

USER MANUAL

CL-1504 PANEL#MANUAL-CN (size:4.2MB)

LIBRARY

CL-1504 PANEL#GDTF_Build_No_1 (size:653.0KB)

USER MANUAL

CL-1504 PANEL#MANUAL-EN (size:5.3MB)

CHANNEL CHART

CL-1504 PANEL#DMX-EN (size:234.9KB)

LIBRARY

CL-1504 PANEL#MA2 LIBRARY (size:14.0KB)

CHANNEL CHART

CL-1504 PANEL#DMX-CN (size:429.0KB)

DRAWING

CL-1504 PANEL#CAD (size:365.4KB)

LIBRARY

CL-1504 PANEL#TIGER (size:2.8KB)
