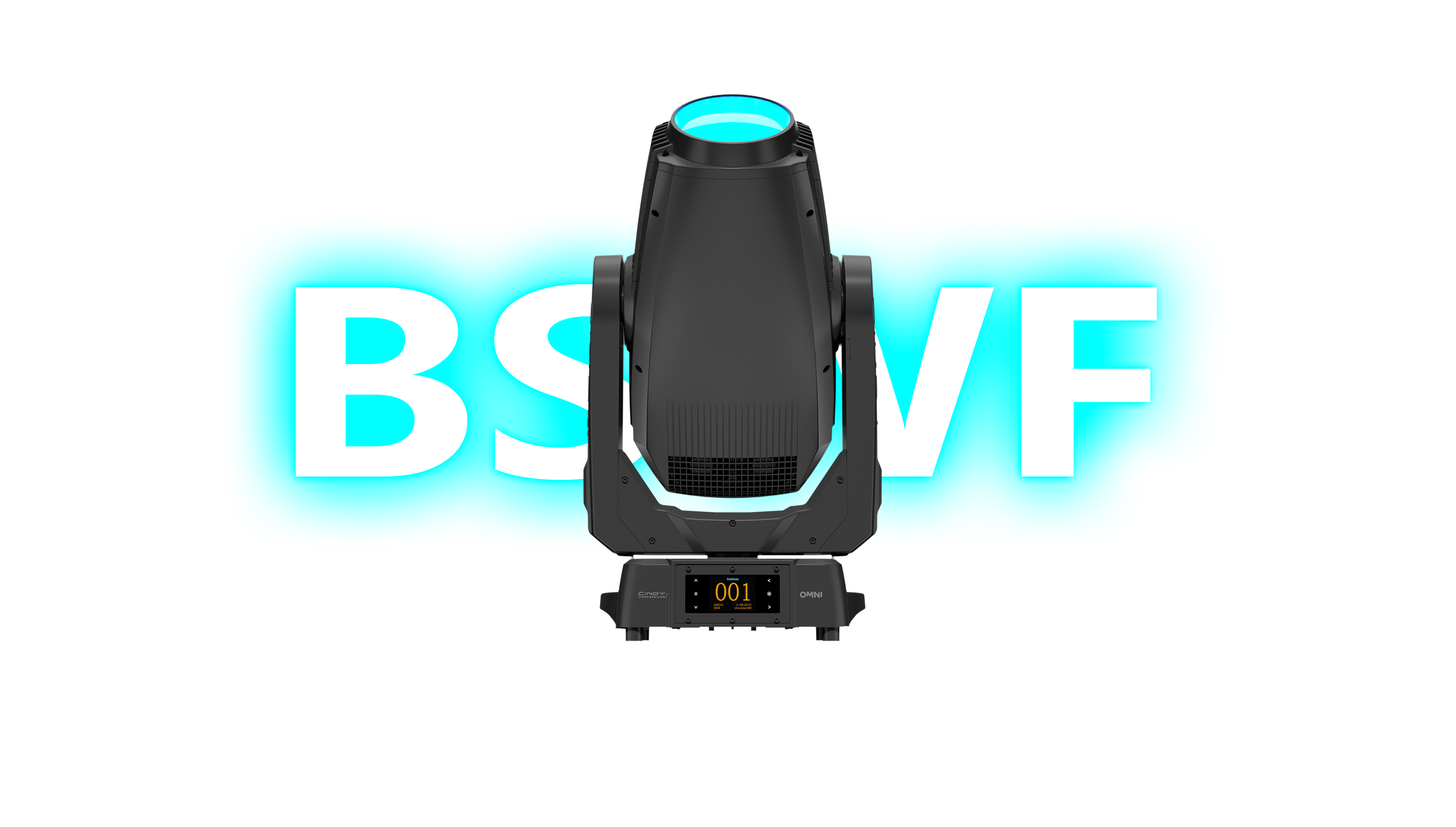

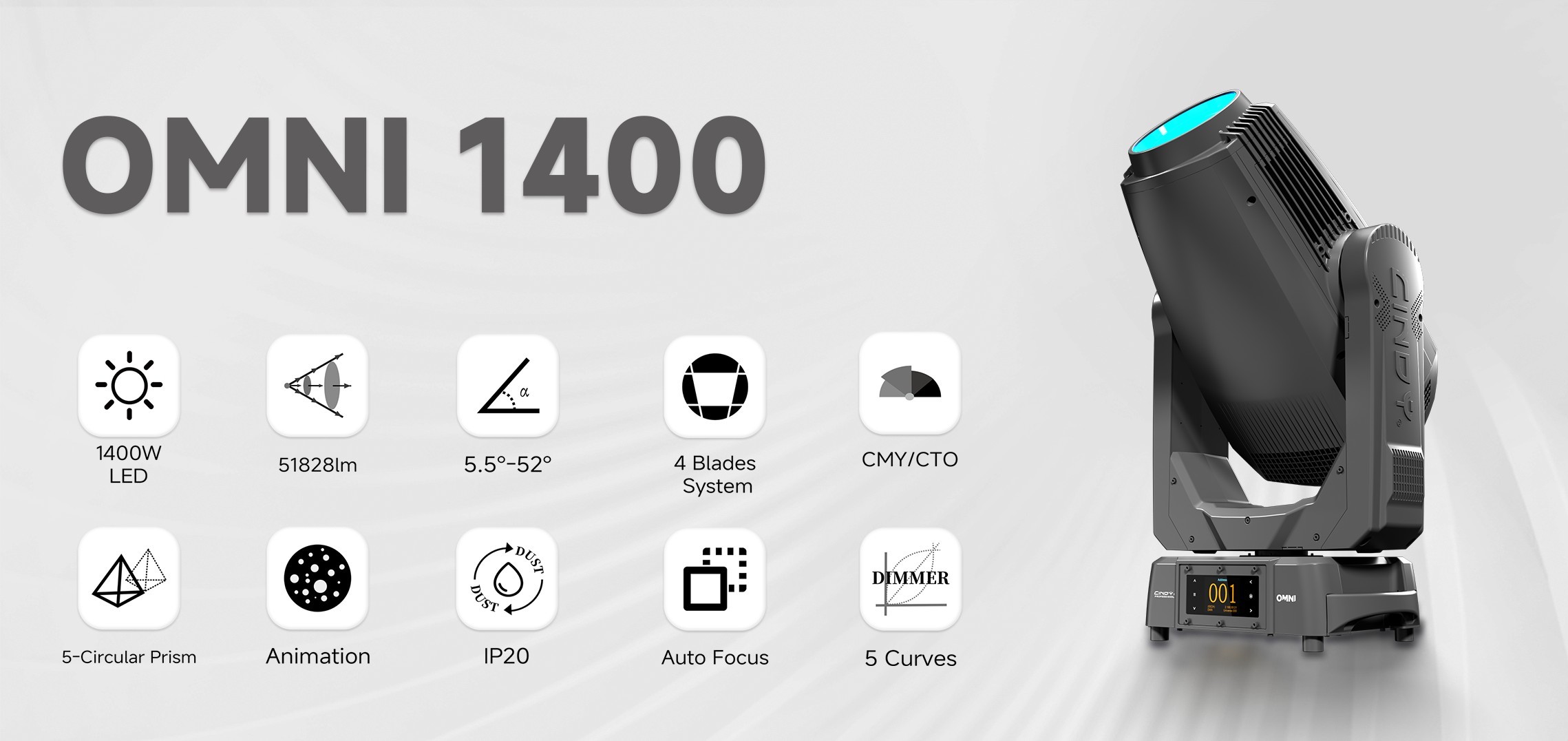

OMNI 1400
OMNI 1400
OMNI 1400
OMNI 1400

  • OPTICAL

    1400W LED

  • LUMEN OUTPUT

    51,828 lm

  • ANGLE

    5.5°-52°

  • MEASUREMENT

    382*272*784mm

  • WEIGHT

    35KG

Product

icon

Parameters

Optical

Light Source: 1400W white LED module

Color Temperature: 7,000 K

Beam Angle: 5.5°-52°

Luminaire Output: 51,828 lm

Illuminance (5.5°): 145,086 lux @ 5m

Illuminance (52°): 3,864 lux@ 5m

PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz

Dynamic effect

Selectable Pan Ranges: 180°, 360°, 540°

Selectable Tilt Ranges: 90°, 180°, 270°

Colors: CMY, CTO

Colors: 4+CRI90+8000K CTB+white, split colors, rainbow effects at variable speeds.

Gobos 1: 7 rotating glass gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds

Gobos 2: 9 static metal gobos+open, rainbow effects at variable speeds.

Framing Shutters: 4 individual shutter blades, rotation of module is 120°

Animation: animations effects, continuous rotation at both speed.

Dimmer: 0-100% electronics, 4 dimming curves options.

Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.

Focus: Motorized

Zoom: Motorized

Iris: Motorized

Prism: 5-facet prism, rotating at variable speeds.

Frost: Light frost

Appearance

Size: 382*272*784mm

Weight: 35KG

Housing Colors: Black

Housing Material: Magnesium alloy+plastic

IP rated: IP20

Connection

Control Protocol: DMX, RDM

DMX Channels: 34, 50

Connector version: 3-pin XLR, Powerkon

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz

Power and Current: 1650W, 7.17A @ 230V, 50Hz

Working temperature: -5° to 45°





CMY COLOR

CMY



CTO

CYAN

MAGENTA

YELLOW



2700K


0%

100%

0%

100%

0%

100%

 0%

100%









COLOR WHEEL

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6









ROTATING GOBO

R GOBO 1

R GOBO 2

R GOBO 3

R GOBO 4

R GOBO 5

R GOBO 6

R GOBO 7









STATIC GOBO

S GOBO 1

S GOBO 2

S GOBO 3

S GOBO 4

S GOBO 5

S GOBO 6

S GOBO 7

S GOBO 8

S GOBO 9









PRISM



FROST



5-CIRCULAR PRISM



LIGHT











FRAMING SYSTEM



±60° ROTATION









ANIMATION

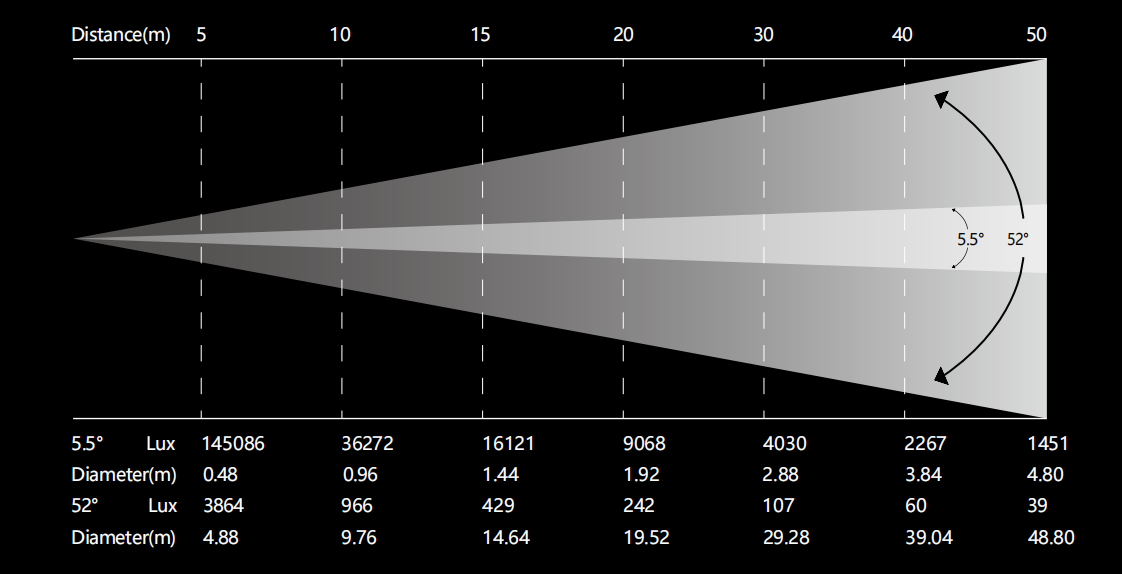

PHOTOMETRICS
