OPTICAL
Ushio 400W
-
LUMEN OUTPUT
12,445 lm
-
ANGLE
2°-43°
-
MEASUREMENT
363*250*573mm
-
WEIGHT
18KG
Product
Parameters
Optical
Light Source: Ushio 400W Lamp
Color Temperature: 6,600K
Beam Angle (spot mode): 2.6°-43°
Beam Angle (beam mode): 2°-37°
Luminaire Output: 12,445lm
Illuminance（beam mode）: 78,000lux@20m
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 12+white, split colors, rainbow effects at variable speeds.
Gobo 1: 17 static metal gobos+open, rainbow effects at variable speeds
Gobos 2: 9 rotating metal gobos+open, indexing, rainbow effects at variable speeds
Dimmer: 0-100% electronics
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Frost: Motorized
Prism 1: 8-facet prism, rotating at variable speeds.
Prism 2: 24-facet prism, rotating at variable speeds.
Appearance
Size: 322*220*549mm
Weight: 18KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 19, 22
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 100V-240V，50/60Hz
Power and Current: 570W, 2.5A @ 230V, 50Hz
Temperature (Ambient): -5° to 45°
 |
|
COLOR WHEEL | |||||
 | |||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 |
 | |||||
COLOR 7 | COLOR 8 | COLOR 9 | COLOR 10 | COLOR 11 | COLOR 12 |
ROTATING GOBO | ||||||||
 | ||||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 | R GOBO 8 | R GOBO 9 |

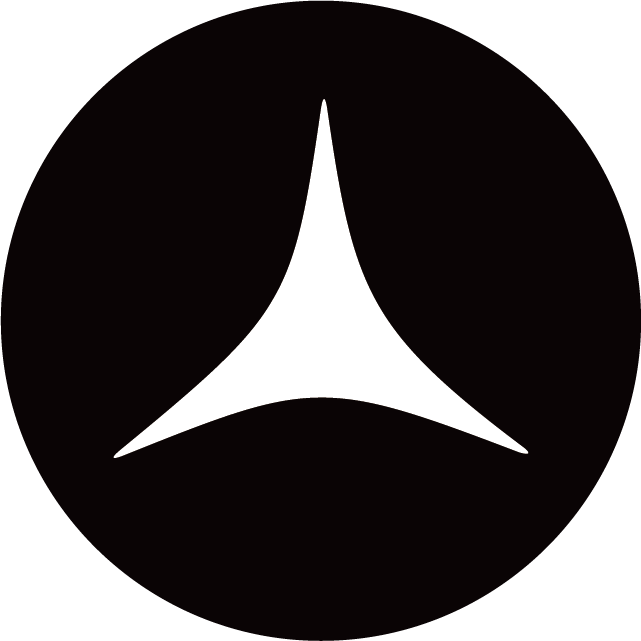

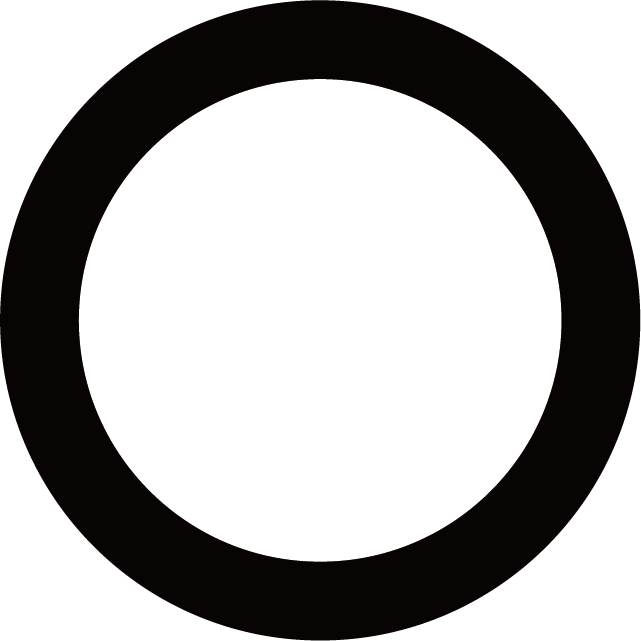

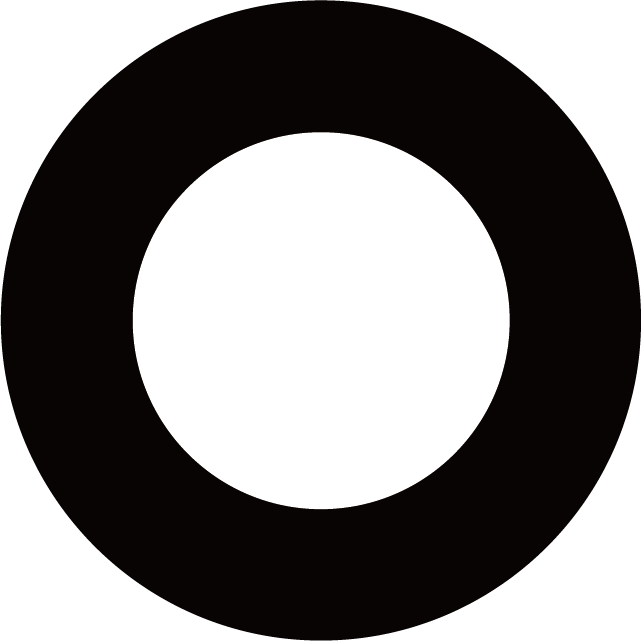

STATIC GOBO | |||||||
 | |||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 | S GOBO 8 |
 | |||||||
S GOBO 9 | S GOBO 10 | S GOBO 11 | S GOBO 12 | S GOBO 13 | S GOBO 14 | S GOBO 15 | S GOBO 16 |
PRISM | FROST | ||
 |  | ||
8-CIRCULAR PRISM | 24-CIRCULAR PRISM |
| HEAVY |
PHOTOMETRICS |
