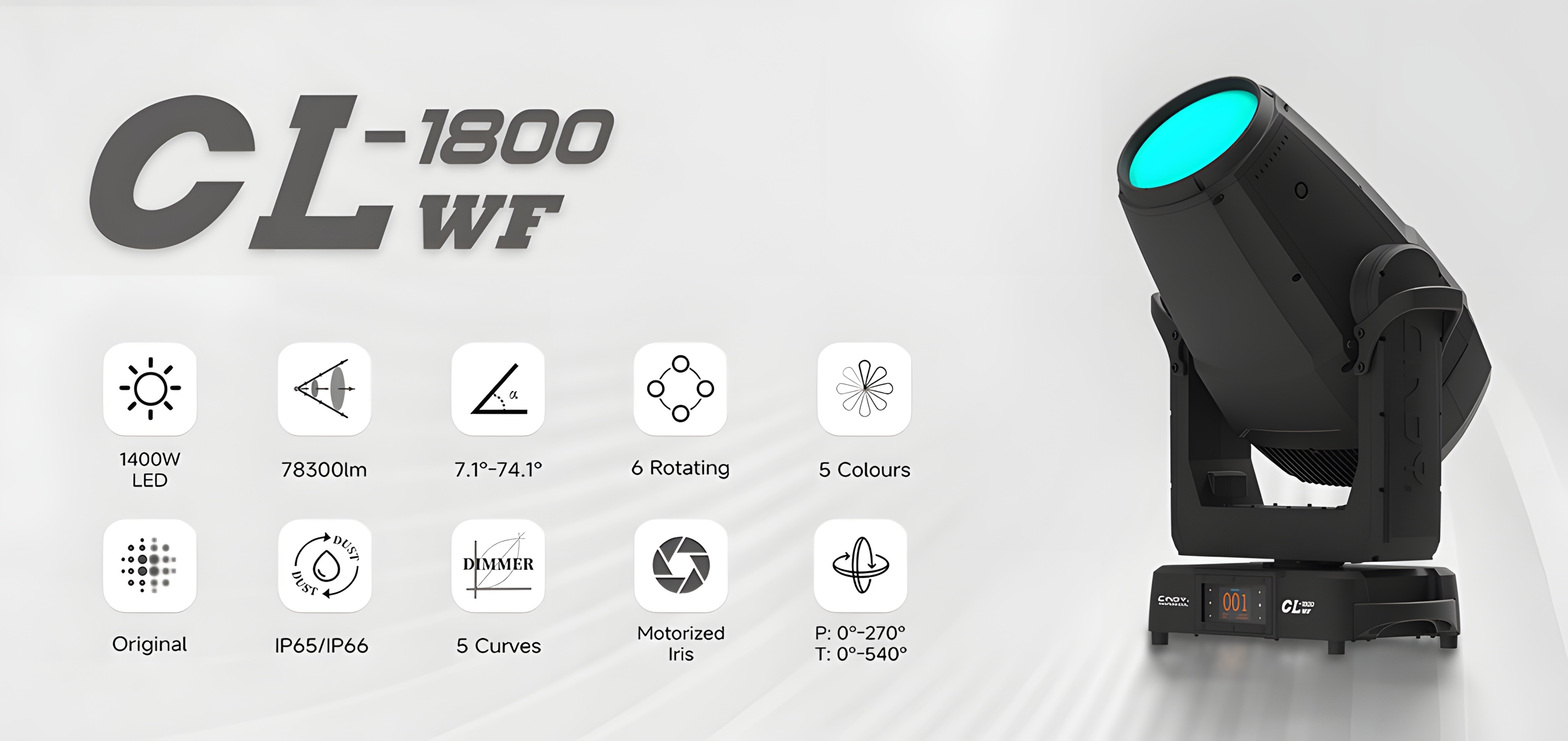

OPTICAL
1400W LED
-
LUMEN OUTPUT
78,300 lm
-
ANGLE
7.1°-74.1°
-
MEASUREMENT
536*312*820mm
-
WEIGHT
46.5KG
Product
Parameters
Optical
Light Source: 1400W white LED module
Color Temperature: 7000K
Beam Angle: 7.1°-74.1°
Luminaire Output: 78,300 lm
Illuminance (7.1°): 226,049 lux @ 5m
Illuminance (74.1°): 4,860 lux @ 5m
PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: CMY, CTO
Colors: 4 colors + CRI 90+white, split colors, rainbow effects at variable speeds.
Gobos: 6 rotating metalgobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Framing Shutters: 4 individual shutter blades, rotation of module is 120°
Animation: animations effects, continuous rotation at both speed.
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Iris: Motorized
Frost：light frost
Appearance
Size:536*312*820mm
Weight: 46.5KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP rated: IP65
Connection
Control Protocol: DMX, RDM.
Only for Connector version: ArtNet, sACN
DMX channels: 31, 46
Connector version: 3-pin XLR, EtherCON, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.
Electrical / Temperature
Input Voltage: 200V-240V, 50/60Hz
Power: 1800W，7.8A @ 230V，50Hz
Working temperature: -40°-45°
Startup temperature: -20°-45°
 |
|
CMY COLOR | ||||||||
CMY |
| CTO | ||||||
CYAN | MAGENTA | YELLOW | 2700K | |||||
| 0% | 100% | 0% | 100% | 0% | 100% | 0% | 100% | |
COLOR WHEEL | ||||
 | ||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 |
ROTATING GOBO | |||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 |
FRAMING SYSTEM | |||
 |  |  |  |
±60° ROTATION | |||

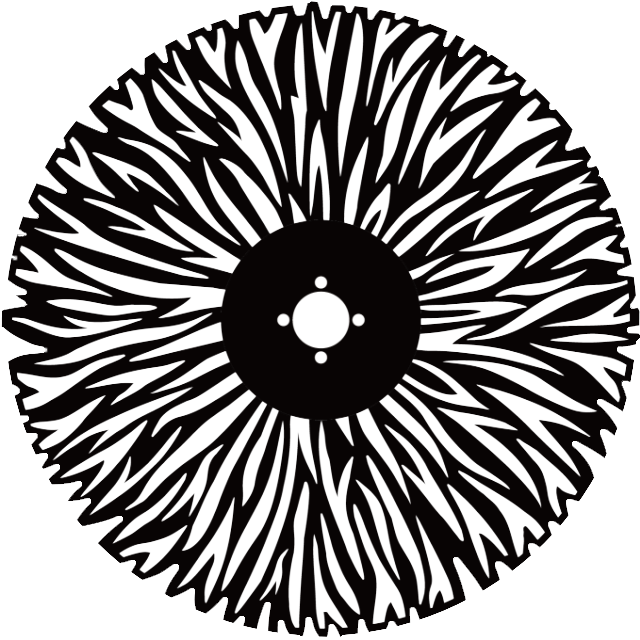

ANIMATION |
 |

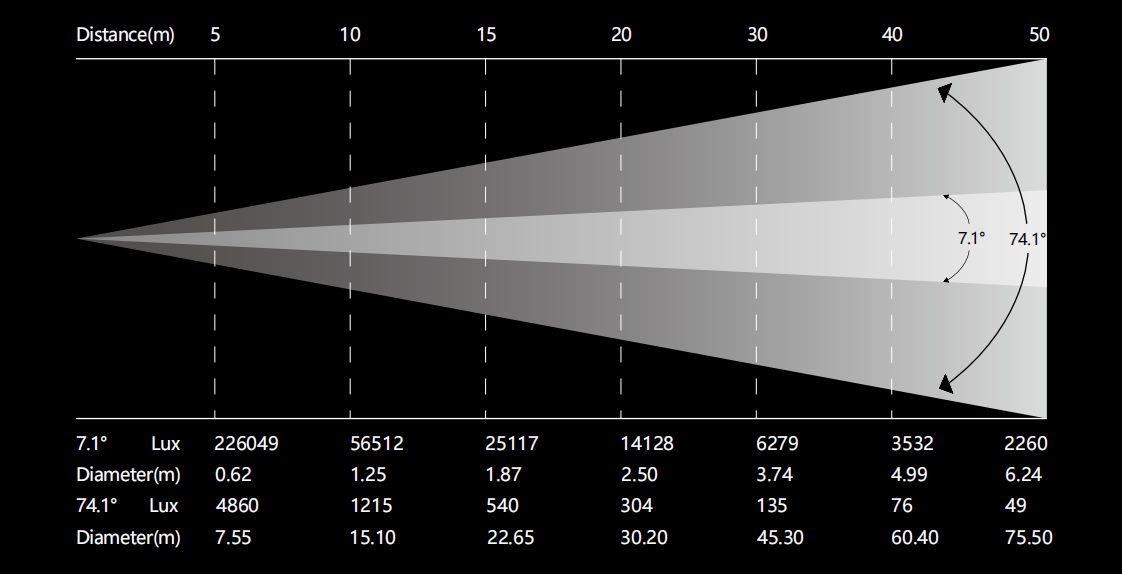

PHOTOMETRICS |
 |
