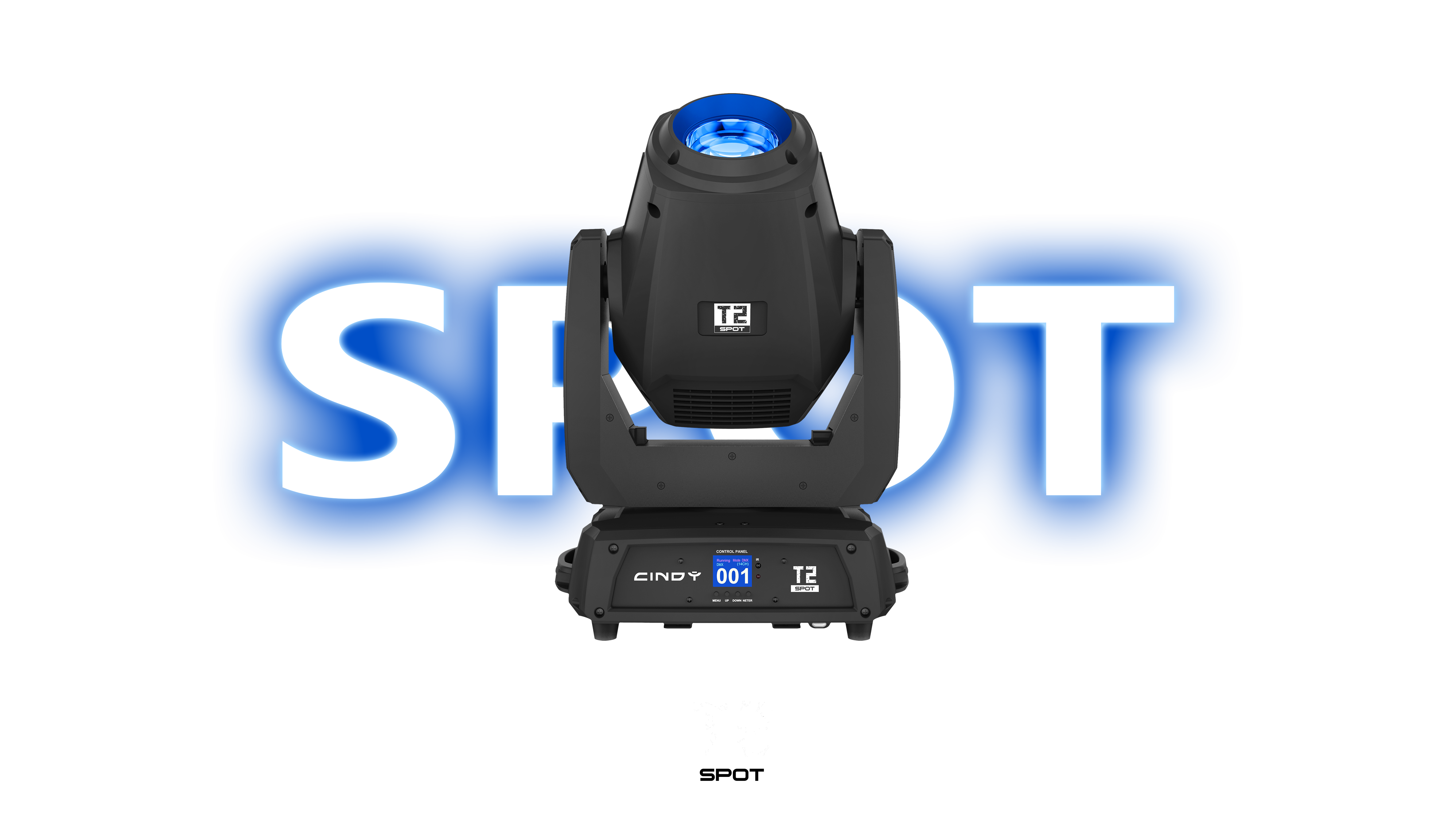

Products
-
-
OPTICAL
250W LED
-
LUMEN OUTPUT
8,617 lm
-
ANGLE
13°-26°
-
MEASUREMENT
363*250*531mm
-
WEIGHT
17KG
Product
Parameters
Optical
Light Source: 250W white LED
Color Temperature: 6,875K
Beam Angle: 13°-26°
Luminaire Output: 8,617lm
Illuminance (13°): 11,520lux @ 5m
Illuminance (26°): 3,260lux @ 5m
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 7+white, split colors, rainbow effects at variable speeds.
Gobo 1: 7 rotating metal gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2: 8 static metal gobos+open, rainbow effects at variable speeds
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Prism: 3-facet prism, rotating at variable speeds.
Appearance
Size: 363*250*531mm
Weight: 17KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX
DMX Channels: 10, 16
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 440W, 2A @ 230V, 50Hz
Temperature (Ambient): -5°to 45°
 |
|
COLOR WHEEL | ||||||
 | ||||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |
ROTATING GOBO | ||||||
 | ||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 |
PRISM | ||
 | ||
6-CIRCULAR PRISM |
| 5-LINEAR PRISM |
PHOTOMETRICS |
 |
