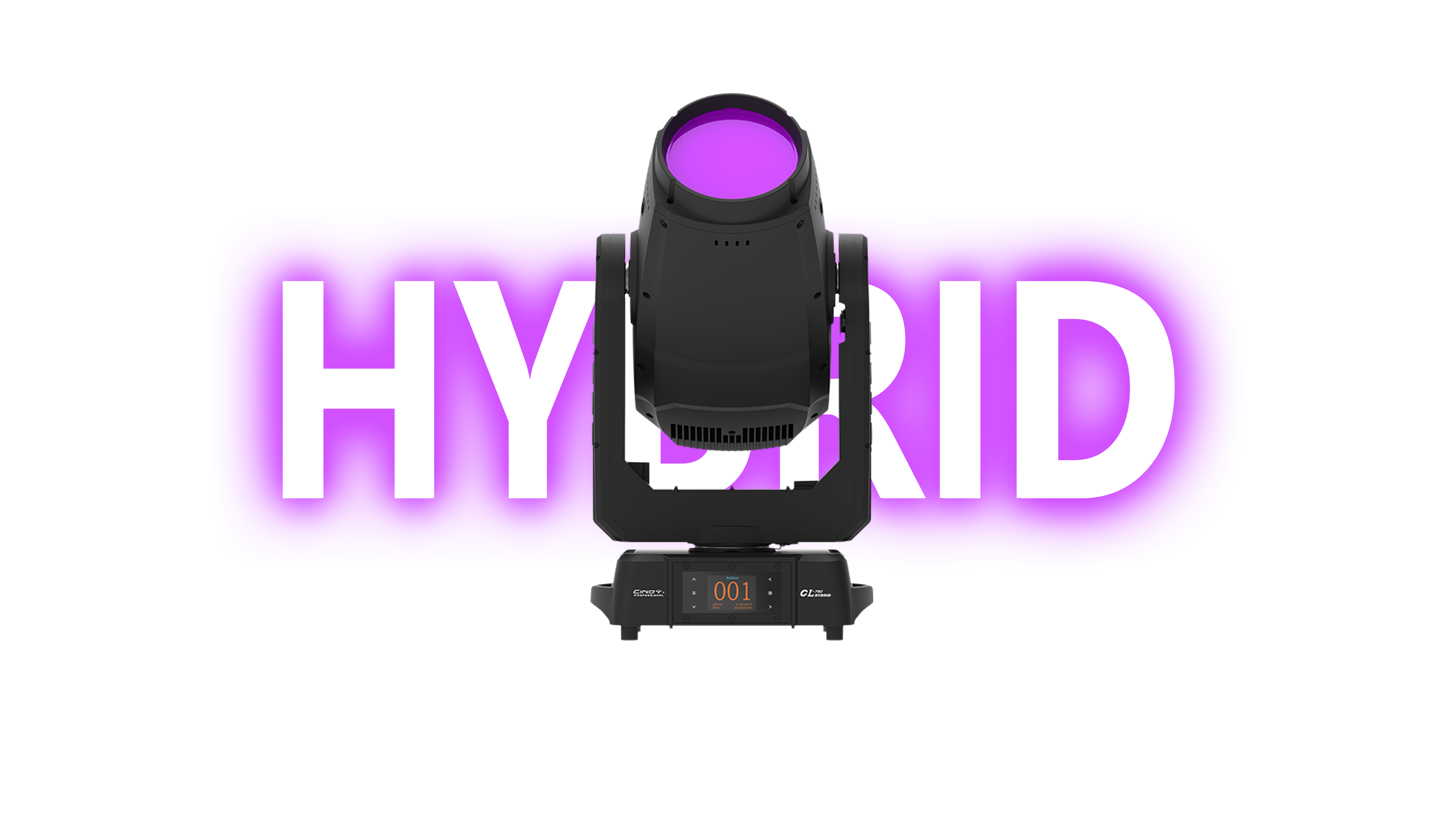

CL-750 HYBRID
CL-750 HYBRID
CL-750 HYBRID
CL-750 HYBRID

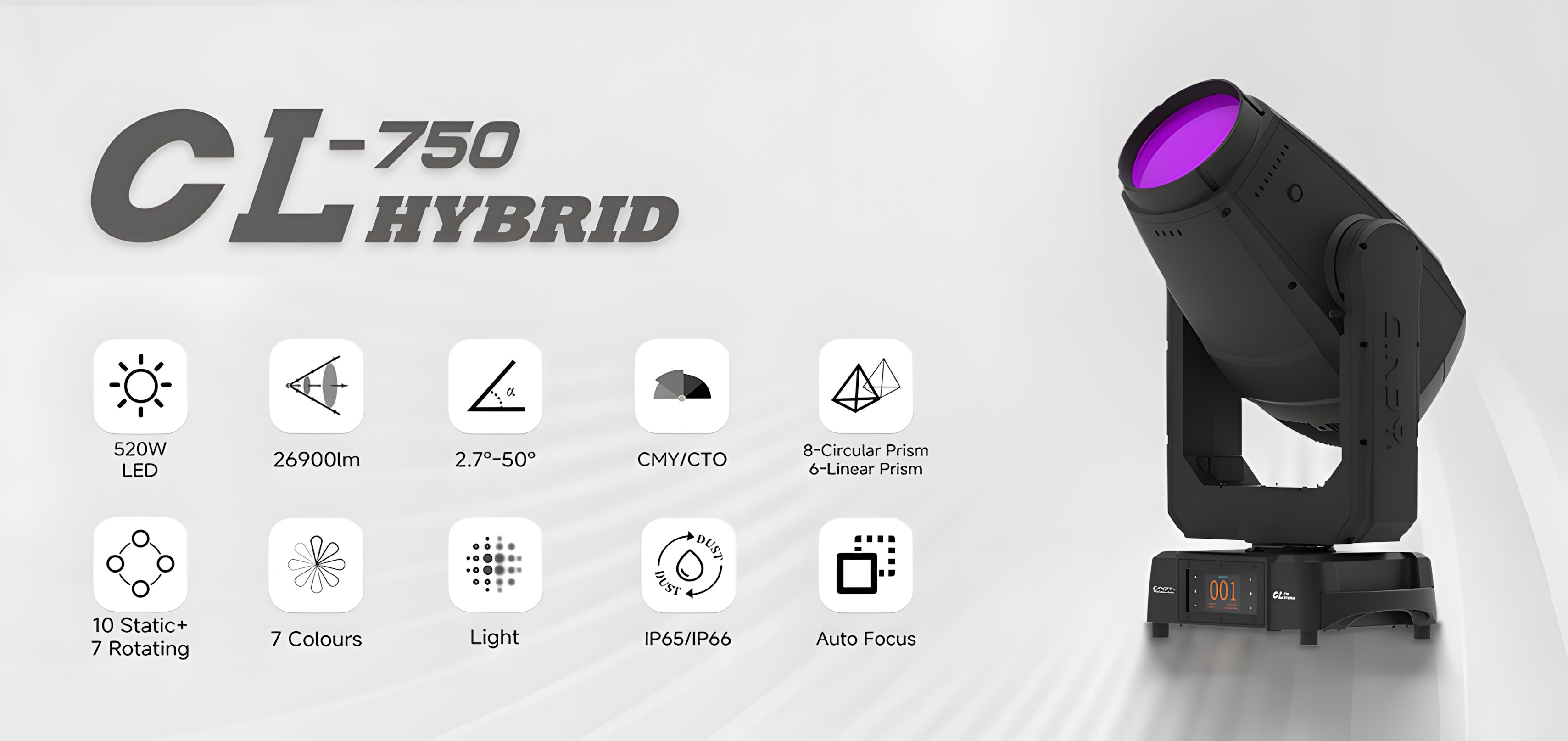

  • OPTICAL

    520W LED

  • LUMEN OUTPUT

    26,900 lm

  • ANGLE

    2.7°-50°

  • MEASUREMENT

    382*268*739mm

  • WEIGHT

    28.5KG

Product

icon

Parameters

Optical

Light Source: 520W white LED module
Color Temperature: 7,000 K
Beam Angle: 2.7°-50°
Luminaire Output: 26,900 lm
Illuminance (2.7°): 143,812 lux @ 5m
Illuminance (50°): 2,215 lux@ 5m

Dynamic effect

Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: CMY, CTO
Colors: 7+white, split colors, rainbow effects at variable speeds.
Gobos 1: 5 rotating glass gobos+dynamic metal gobo+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2: 10 static gobos+open, rainbow effects at variable speeds.
Animation: animations effects, continuous rotation at both speed.
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-15Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Prism1: 6-facet prism, rotating at variable speeds.
Prism2: 8-facet prism, rotating at variable speeds.
Frost: Light frost

Appearance

Size: 382*268*739mm
Weight: 28.5KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP rated: IP65/IP66

Connection

Control Protocol: DMX, RDM.
Only for Connector version: ArtNet, sACN
DMX Channels: 26, 33
Connector version: 3-pin XLR, EtherCON, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz
Power and Current: 875W, 3.79A @ 230V, 50Hz
Working temperature: -40°-45°
Startup temperature: -20°-45°





CMY COLOR

CMY



CTO

CYAN

MAGENTA

YELLOW



2700K


0%

100%

0%

100%

0%

100%

 0%

100%









COLOR WHEEL

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6

COLOR 7

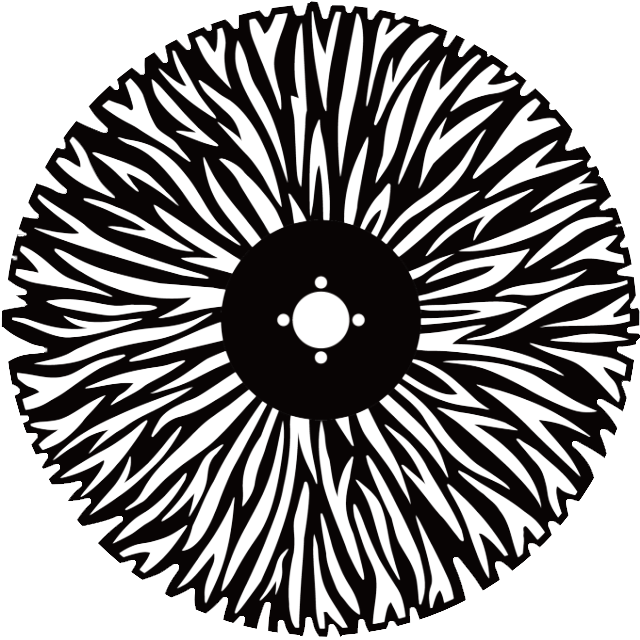

ROTATING GOBO

R GOBO 1

R GOBO 2

R GOBO 3

R GOBO 4

R GOBO 5

R GOBO 6

R GOBO 7

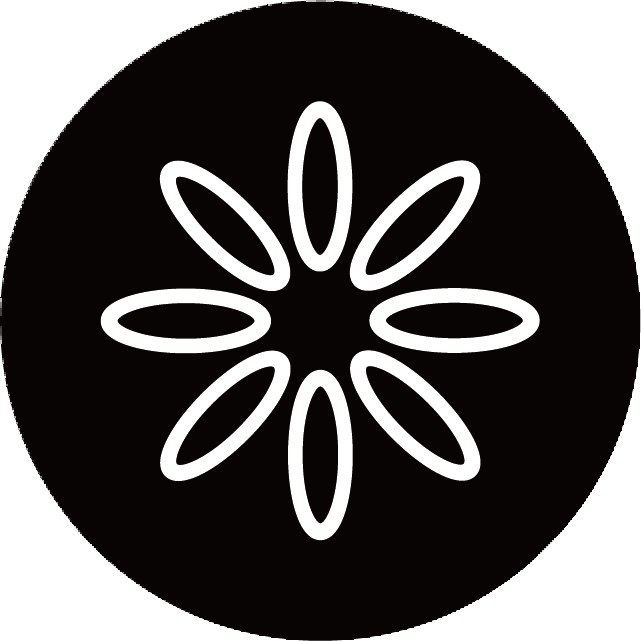

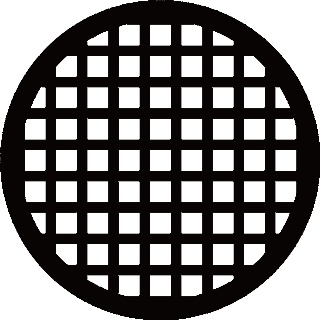

STATIC GOBO

S GOBO 1

S GOBO 2

S GOBO 3

S GOBO 4

S GOBO 5

S GOBO 6

S GOBO 7

S GOBO 8

S GOBO 9

S GOBO 10









PRISM



FROST



8-CIRCULAR PRISM

6-LINEAR PRISM



LIGHT









ANIMATION









PHOTOMETRICS





SLIDE MOTION

Standard SLIDE MOTION gobo effect

Customizable SLIDE MOTION gobo effects
