Products
-
-
OPTICAL

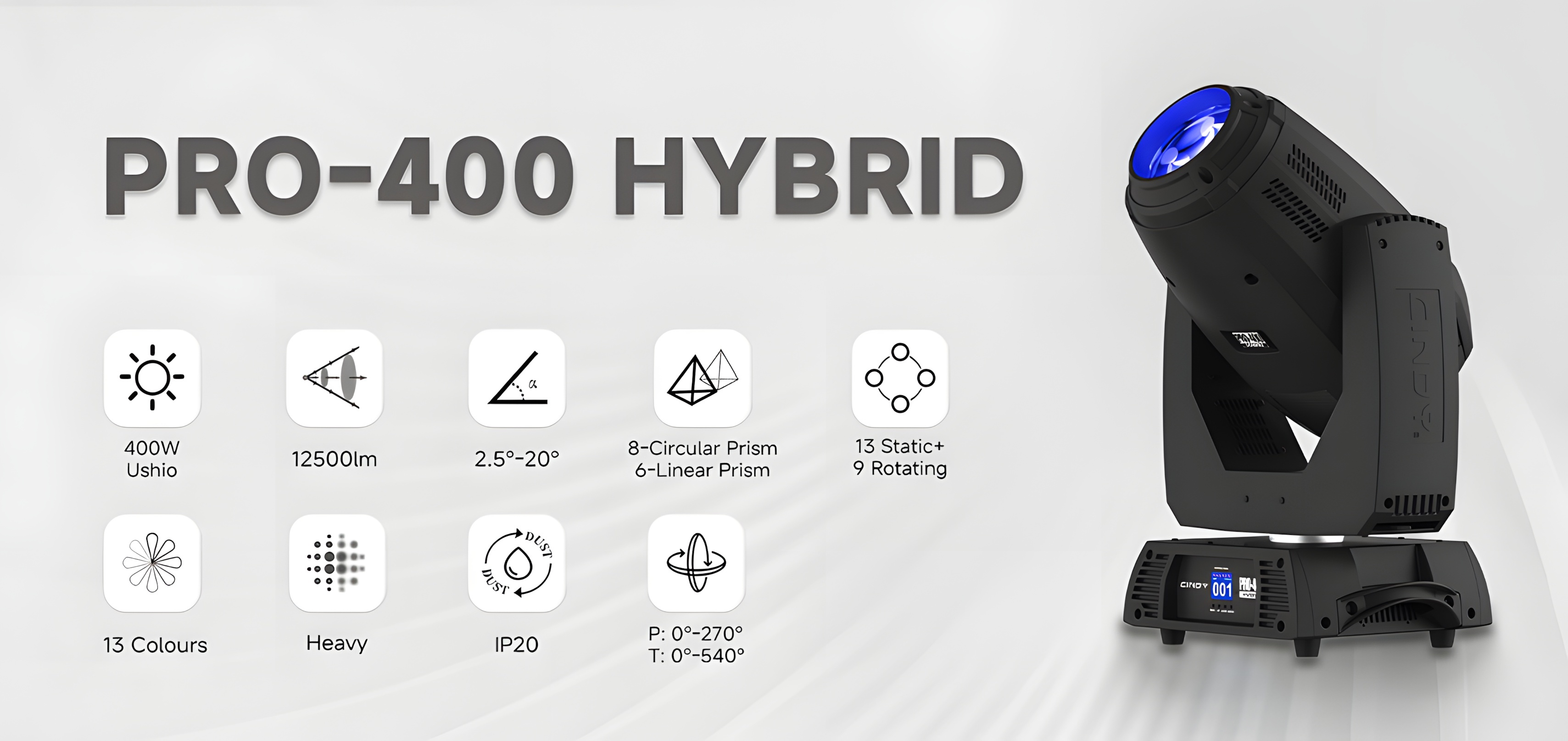

Ushio 400W
-
LUMEN OUTPUT
12,500 lm
-
ANGLE
2.5°-20°
-
MEASUREMENT
372*282*637mm
-
WEIGHT
21.5KG
Product
Parameters
Optical
Light Source: Ushio 400W lamp
Color Temperature:6,500K
Beam angle: 2.5°-20°
Luminaire Output: 12,500lm
Illuminance(beam mode): 95,000lux@20m
Dynamic effect
Selectable Pan Ranges: 180°，360°，540°
Selectable Tilt Ranges: 90°，180°，270°
Colors: 13+white, split colors, rainbow effects at variable speeds
Gobos 1: 14 static metal gobos+open, rainbow effects at variable speeds.
Gobos 2: 9 rotating glass gobos+open, indexing, rainbow effects at variable speeds.
Dimmer: 0-100% electronics
Strobe: 0-15Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Frost: Motorized
Prism 1: 8-facet prism, rotating at variable speeds.
Prism 2: 6-facet prism, rotating at variable speeds
Appearance
Size: 372*282*637mm
Weight: 21.5KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX，RDM
DMX Channels: 20, 25
Control mode：DMX, Manual, Auto
3 pin /5pin XLR input/output
Electrical / Temperature
Input Voltage: 100V-240V，50/60Hz
Power and Current: 580W, 2.5 A @ 230 V, 50 Hz
Temperature (Ambient): -5°-45°
 |
|
COLOR WHEEL | ||||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |
COLOR 8 | COLOR 9 | COLOR 10 | COLOR 11 | COLOR 12 | COLOR 13 |

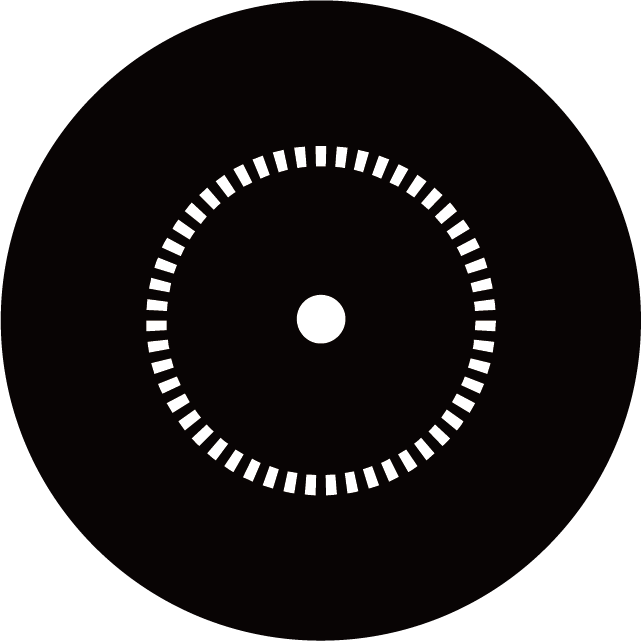

ROTATING GOBO | ||||||||
 | ||||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 | R GOBO 8 | R GOBO 9 |

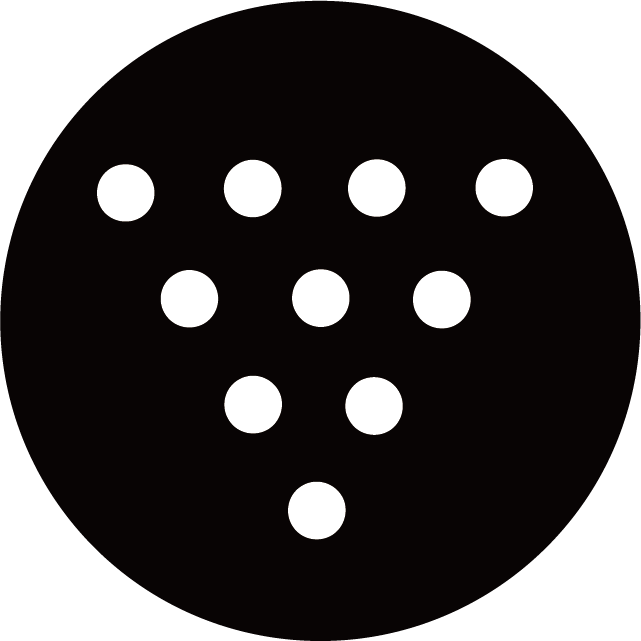

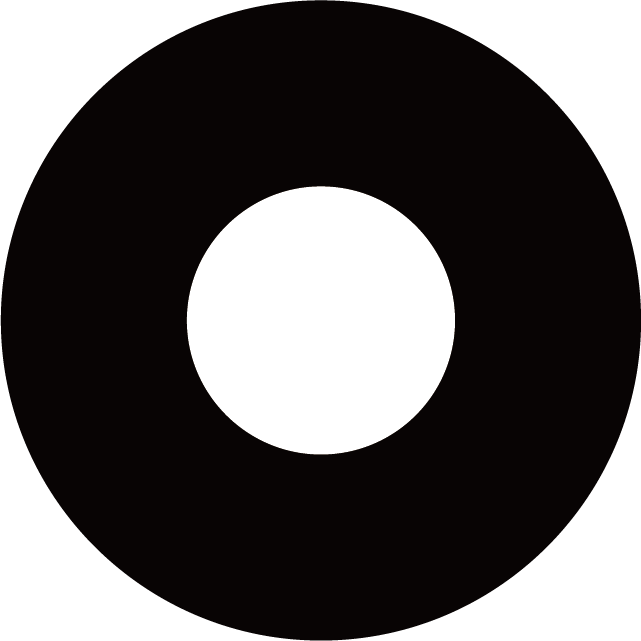

Fixed wheel Static Gobo | ||||||
 | ||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 |
 | |||||
S GOBO 8 | S GOBO 9 | S GOBO 10 | S GOBO 11 | S GOBO 12 | S GOBO 13 |
PRISM | Frost | ||
 |  | ||
8-Circular Prism | 6-Linear Prism |
| Heavy |

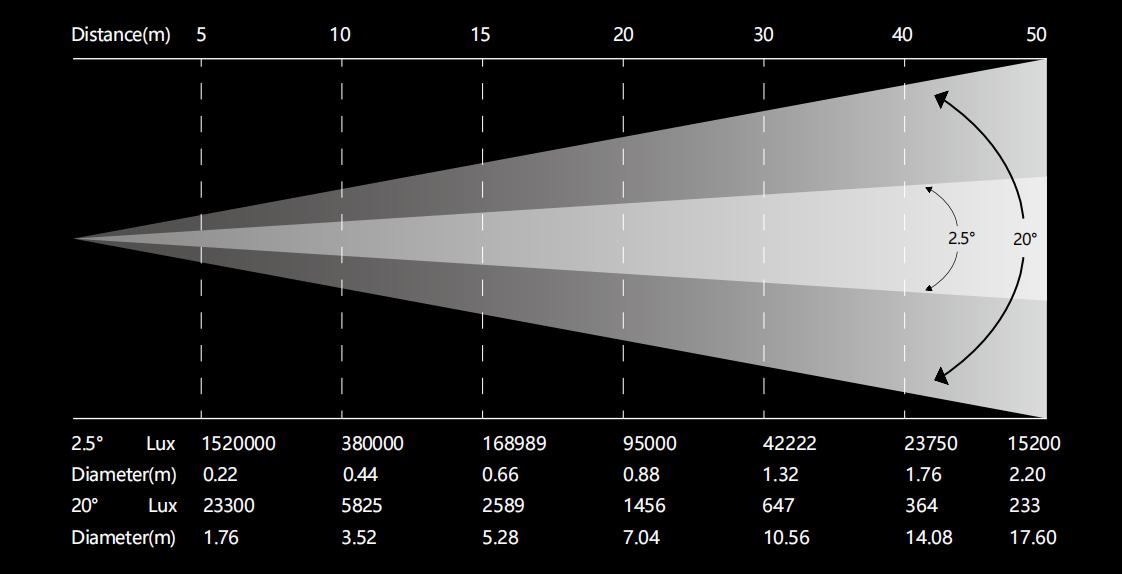

Photometrics |
 |
