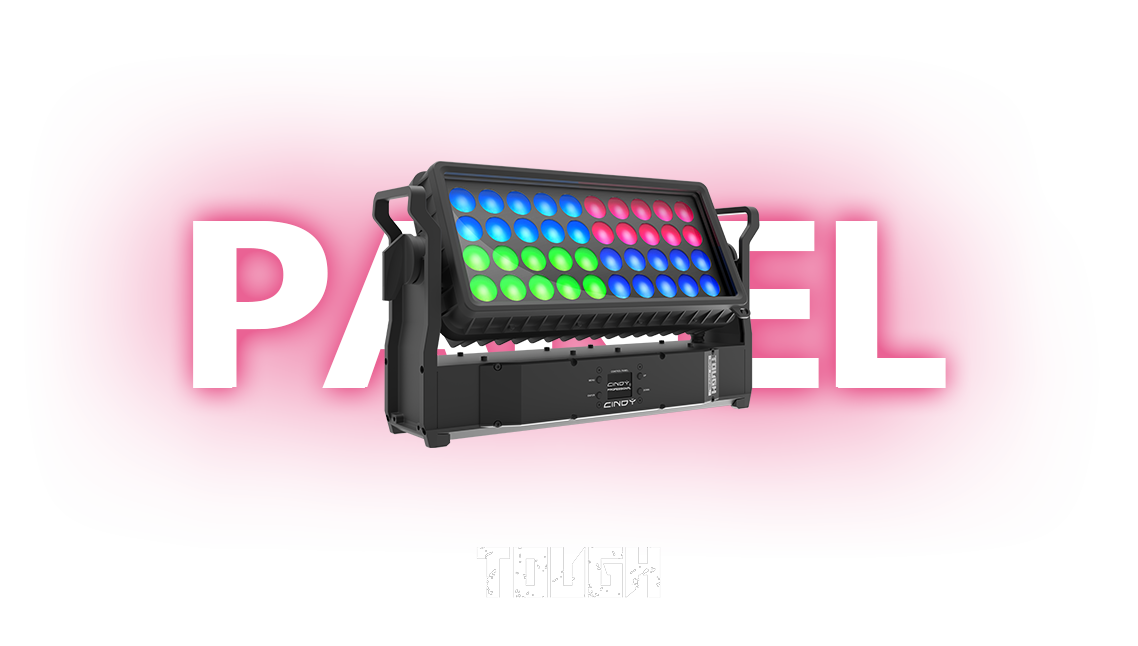

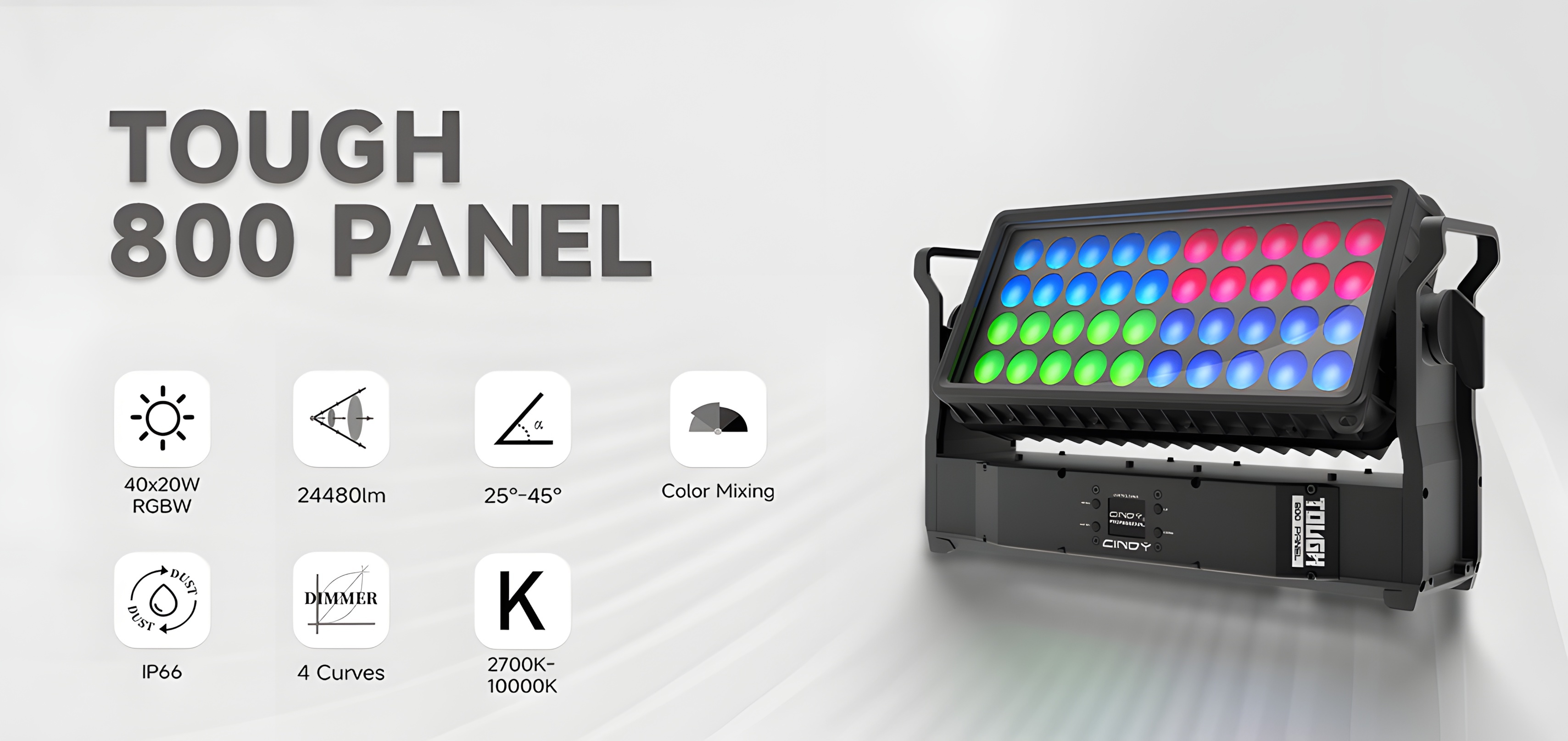

TOUGH 800 PANEL
TOUGH 800 PANEL
TOUGH 800 PANEL
TOUGH 800 PANEL

  • OPTICAL

    40x20W RGBW

  • LUMEN OUTPUT

    24,480 lm

  • ANGLE

    25° or 45°

  • MEASUREMENT

    526*202*273mm

  • WEIGHT

    11KG

Product

icon

Parameters

Optical

Light Source: 40 pcs 20W RGBW 4 in 1 LED
Beam Angle: 25°or 45°
Luminaire Output: 24,480lm
Illuminance (25°): 17,470lux @ 5m
Illuminance (45°): 3,850lux @ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz

Dynamic effect

LED: 4 sections control
Tilt angle: manual adjust
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Color System: RGBW or CMY color mixing

Appearance

Size: 526*202*273mm
Weight: 11KG
Housing Colors: Black
Housing Material: Aluminum alloy
IP Rated: IP66

Connection

Control Protocol: DMX, RDM
DMX channels: 15, 36, 40, 61
IP65 rated 3 pin XLR input/output

Electrical / Temperature

Input Voltage: AC 100V-240V, 50/60Hz
Power: 810W
Working temperature: -40℃-45℃
Startup temperature: -20℃-45℃







LED SOURCE

RED

GREEN

BLUE

WHITE





SECTION CONTROL

40x20W LED

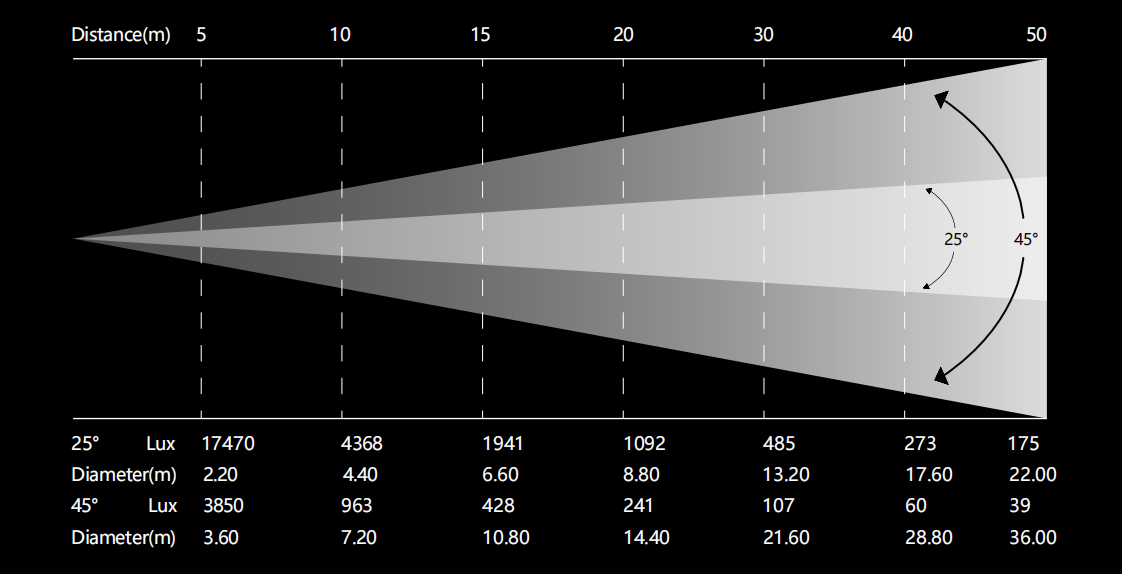

PHOTOMETRICS
