Products
-
-
OPTICAL
12x50W RGBW
-
LUMEN OUTPUT
1,910 lm
-
ANGLE
5°
-
MEASUREMENT
443*408*343mm
-
WEIGHT
49.5KG
Product
Parameters
Optical
Light Source: 12 pcs 50W RGBW 4 in 1 LED
Beam Angle: 5°
Luminaire Output: 1,910lm
Illuminance (5°): 12,500lux @ 5m
PWM Options: 600Hz, 1200Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
LED：pixel control
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt 1,2 Ranges: 90°, 180°, 270°
Head control: independent tilt control for all 4 heads, infinity pan rotation.
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Special effect：multi-colored beam effect
Appearance
Size: 443*408*343mm
Weight: 19.5KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 36, 89, 101, 146
3 pin XLR input/output
Electrical / Temperature
Input Voltage: 100V-240V, 50/60Hz
Power and Current: 300W, 1.3A @ 230V, 50Hz
Temperature (Ambient): -5° to 45°
 |
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |
PIXEL CONTROL 12x30W LED |
 |

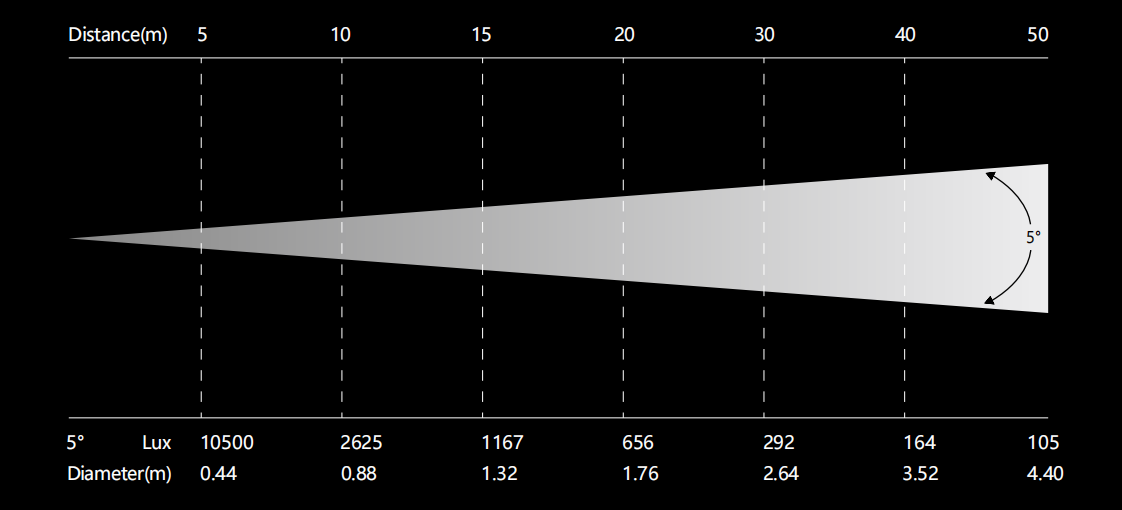

PHOTOMETRICS |
 |
