OPTICAL
7x50W RGBW
-
LUMEN OUTPUT
1,932 lm
-
ANGLE
5.2°-49°
-
MEASUREMENT
255*317*301mm
-
WEIGHT
5.6KG
Product
Parameters
Optical
Light Source: 7 pcs 50W RGBW 4 in 1 LED
Beam Angle: 5.2°-49°
Luminaire Output: 1,932lm

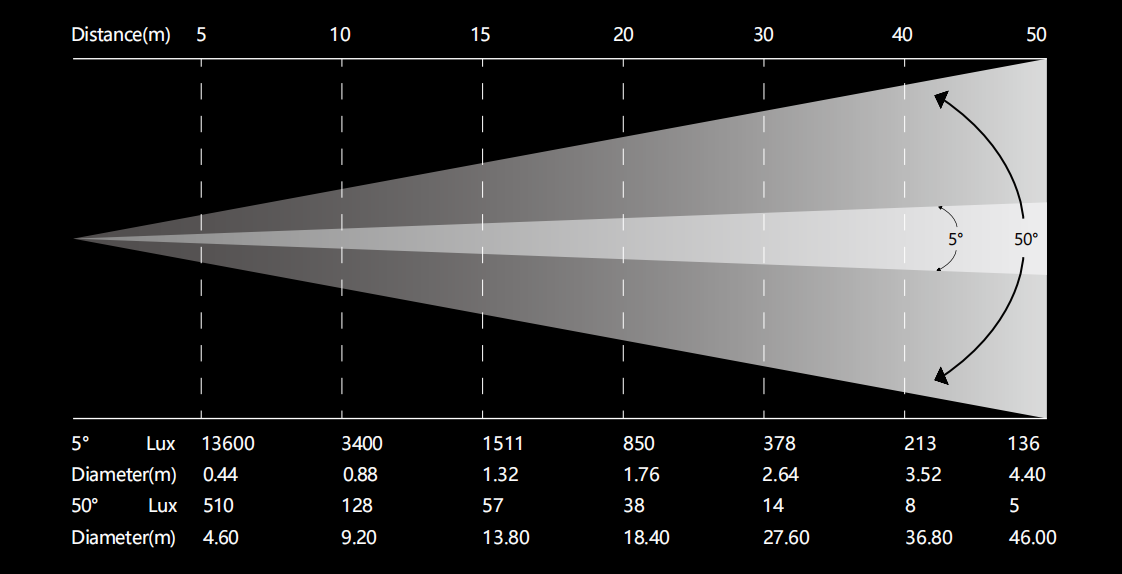

Illuminance (5.2°): 11,700lux @ 5m
Illuminance (49°): 413lux@ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color System: RGBW version：RGBW mixing or CMY mixing
VW version：2700K-7000K
WW version：3200K, CRI: 95
Appearance
Size: 255*317*301MM
Weight: 5.6KG
Housing Colors: Black
Housing Material: Aluminum alloy
IP Rated: IP65
Connection
Control Protocol: DMX, RDM
DMX channels: 9, 10, 14
IP65 rated 3 pin XLR input/output
Electrical / Temperature
Input Voltage: AC 100V-240V, 50/60Hz
Power and Current: 360W
Temperature (Ambient): -5° to 45°
 |
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |
PIXEL CONTROL 7x50W LED |
 |
PHOTOMETRICS |
 |
