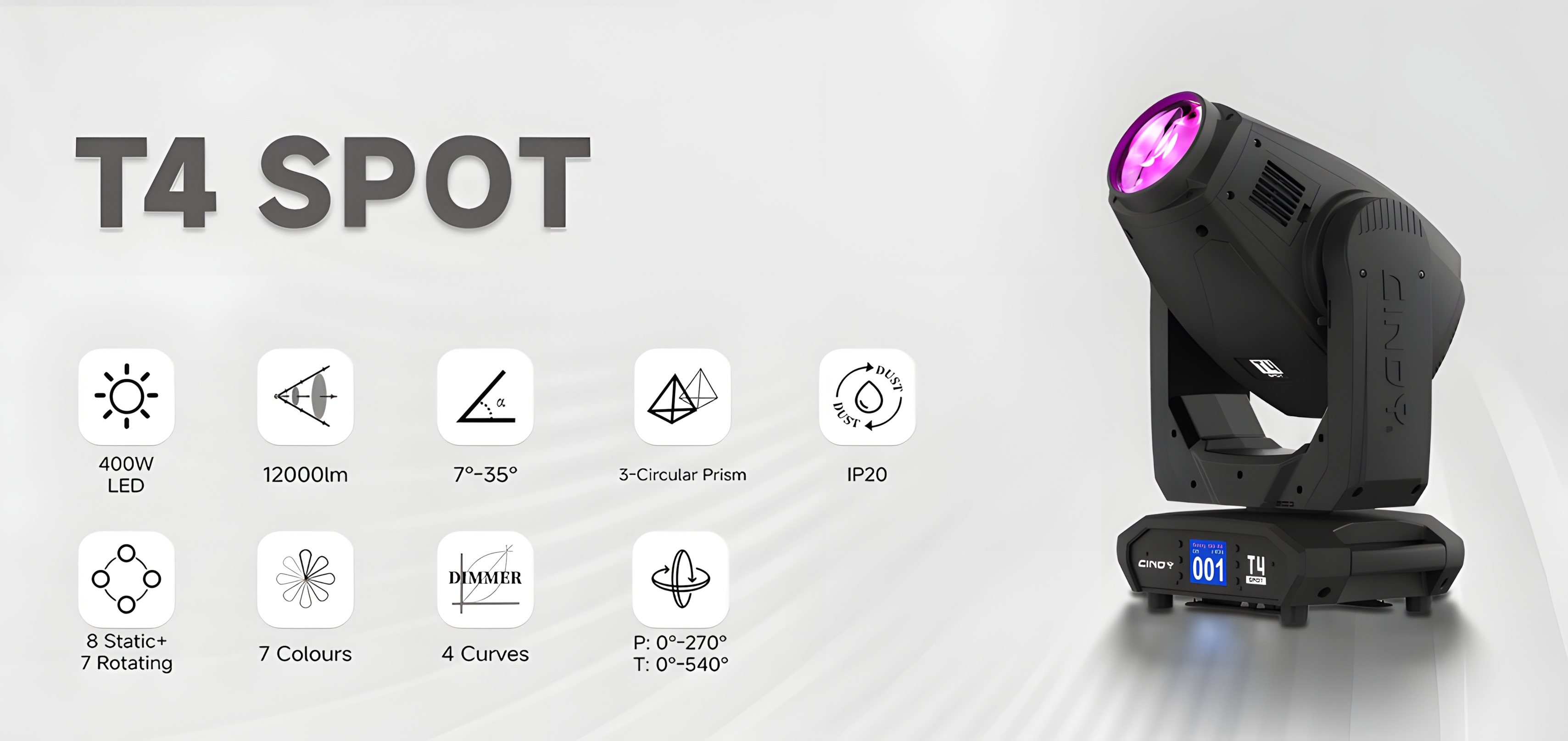

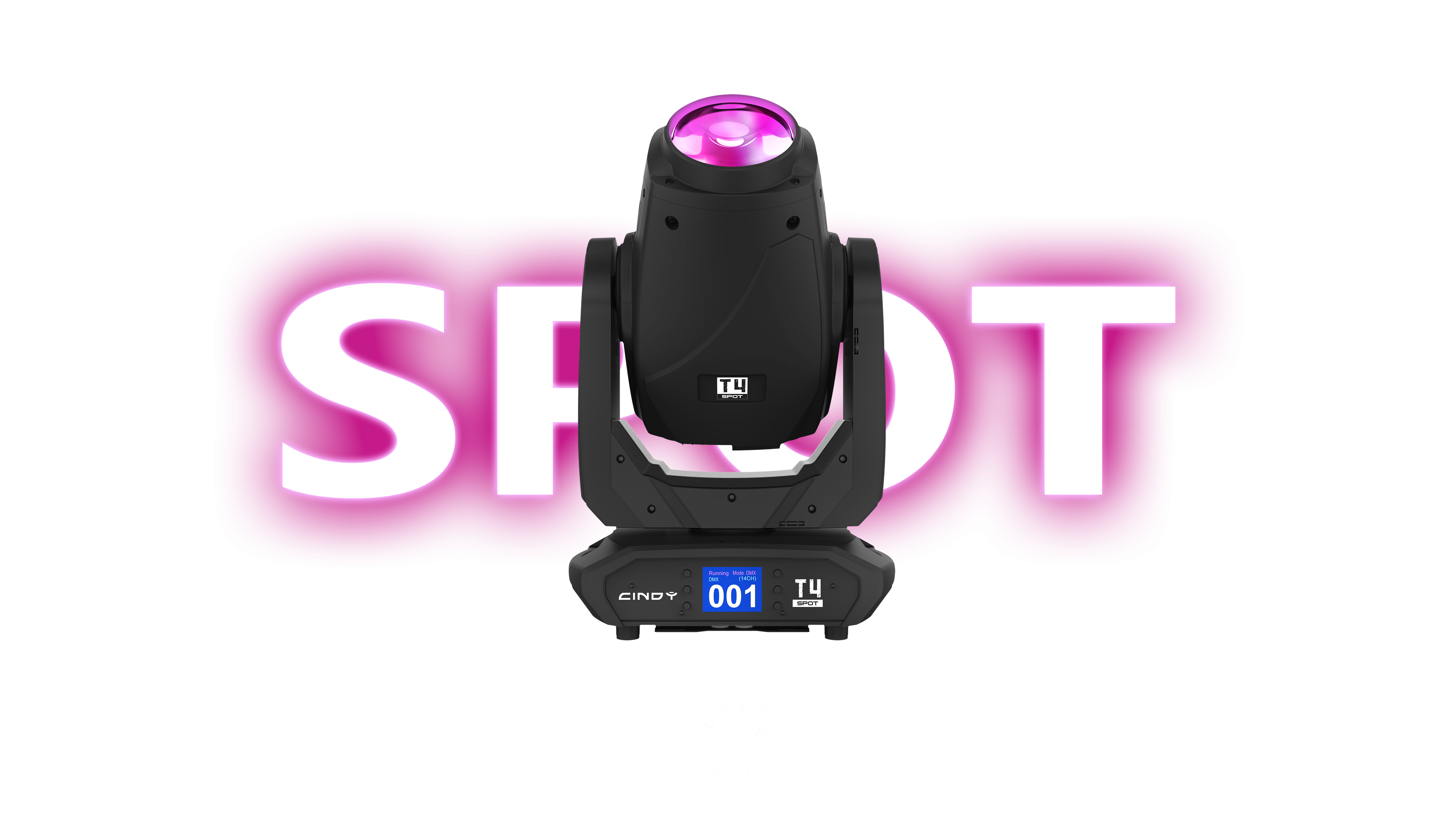

Products
-
-
OPTICAL
400W LED
-
LUMEN OUTPUT
9,619 lm
-
ANGLE
6.5-36.9°
-
MEASUREMENT
394*250*633mm
-
WEIGHT
26KG
Product
Parameters
Optical
Light Source: 400W white LED module
Color Temperature: 7,000K
Beam Angle: 6.5-36.9°
Luminaire Output: 9,619lm
Illuminance (6.5°): 25,120lux@ 5m
Illuminance (36.9°): 1,727lux@5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 270°
Colors: 7+white, split colors, rainbow effects at variable speeds.
Gobos 1: 7 rotating metal gobos+open, interchangeable gobos, indexing, rainbow effects at variable speeds
Gobos 2: 8 static metal gobos+open，rainbow effects at variable speeds
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-20Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Zoom: Motorized
Frost: Motorized
Iris: Motorized
Prism: 3-facet prism, rotating at variable speeds.
Appearance
Size: 394*250*633mm
Weight: 26KG
Housing Colors: Black
Housing Material: High-impact flame-retardant polymer
Connection
Control Protocol: DMX, RDM
DMX Channels: 18, 23
3pin XLR input/output
Electrical / Temperature
Input Voltage: 200V-240V, 50/60Hz
Power and Current: 630W, 2.8A @ 230 V, 50 Hz
Temperature (Ambient): -5°to 45°
 |
|

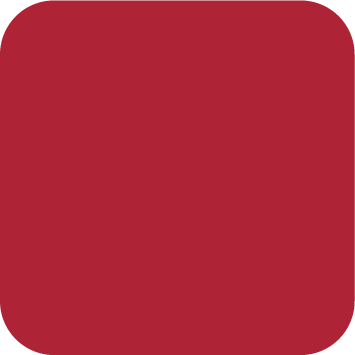

COLOR WHEEL | ||||||
 | ||||||
COLOR 1 | COLOR 2 | COLOR 3 | COLOR 4 | COLOR 5 | COLOR 6 | COLOR 7 |

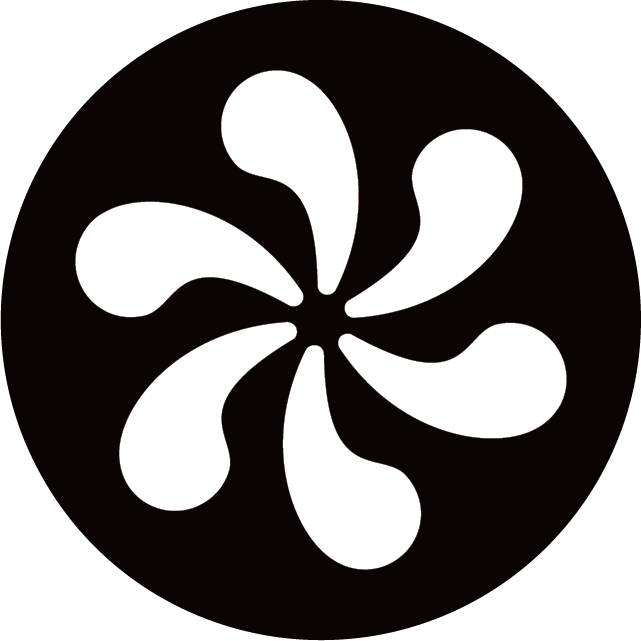

ROTATING GOBO | ||||||
 | ||||||
R GOBO 1 | R GOBO 2 | R GOBO 3 | R GOBO 4 | R GOBO 5 | R GOBO 6 | R GOBO 7 |

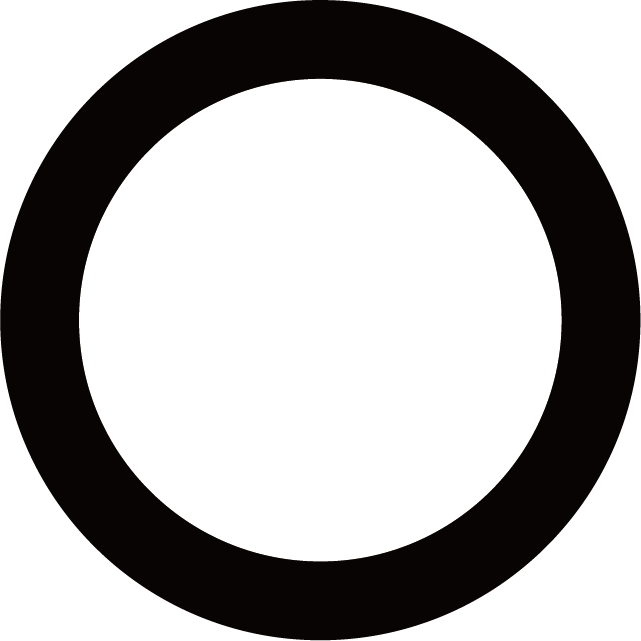

STATIC GOBO | |||||||
 | |||||||
S GOBO 1 | S GOBO 2 | S GOBO 3 | S GOBO 4 | S GOBO 5 | S GOBO 6 | S GOBO 7 | S GOBO 8 |
PRISM |
 |
3-CIRCULAR PRISM |

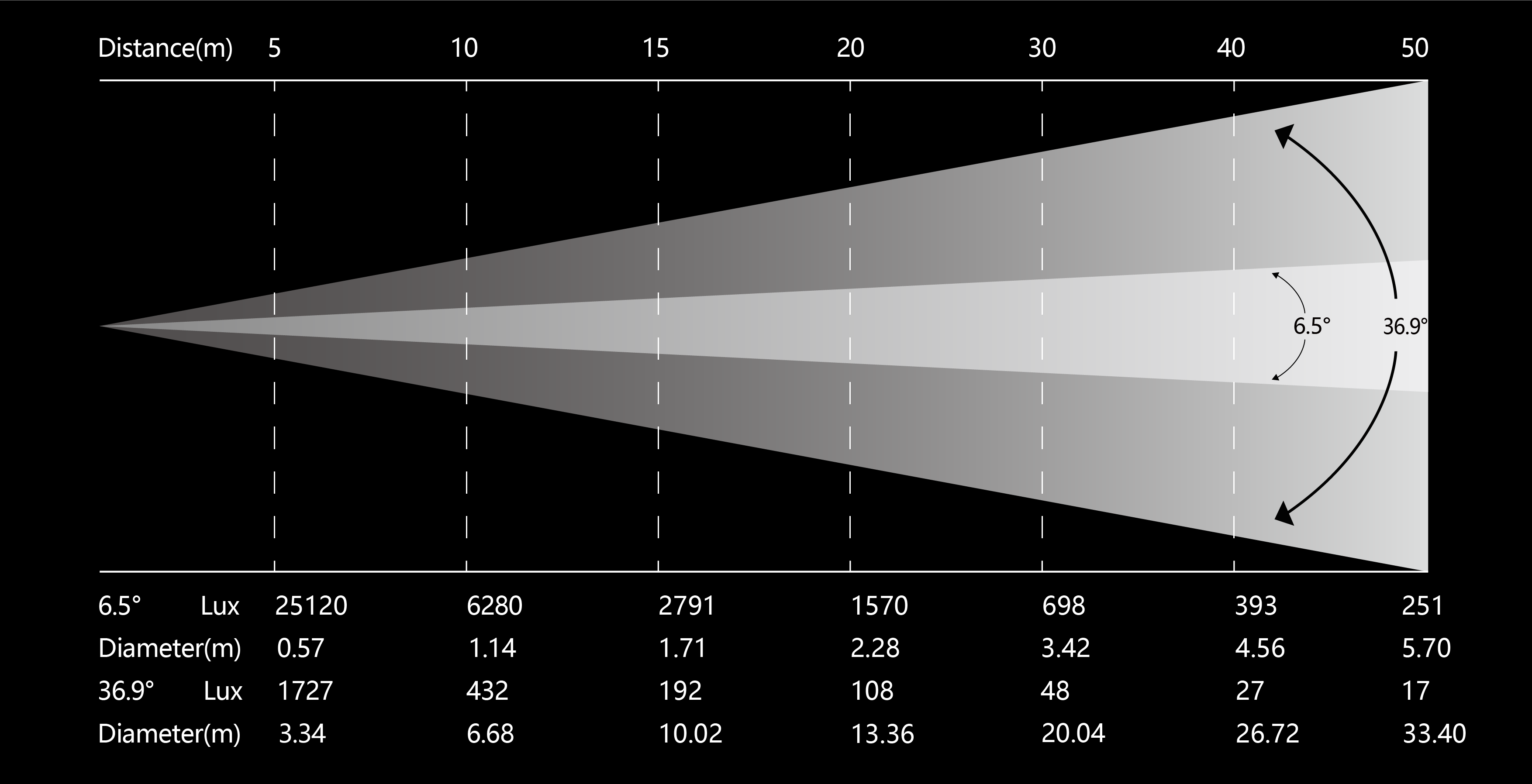

PHOTOMETRICS |
 |
