Products
-
-

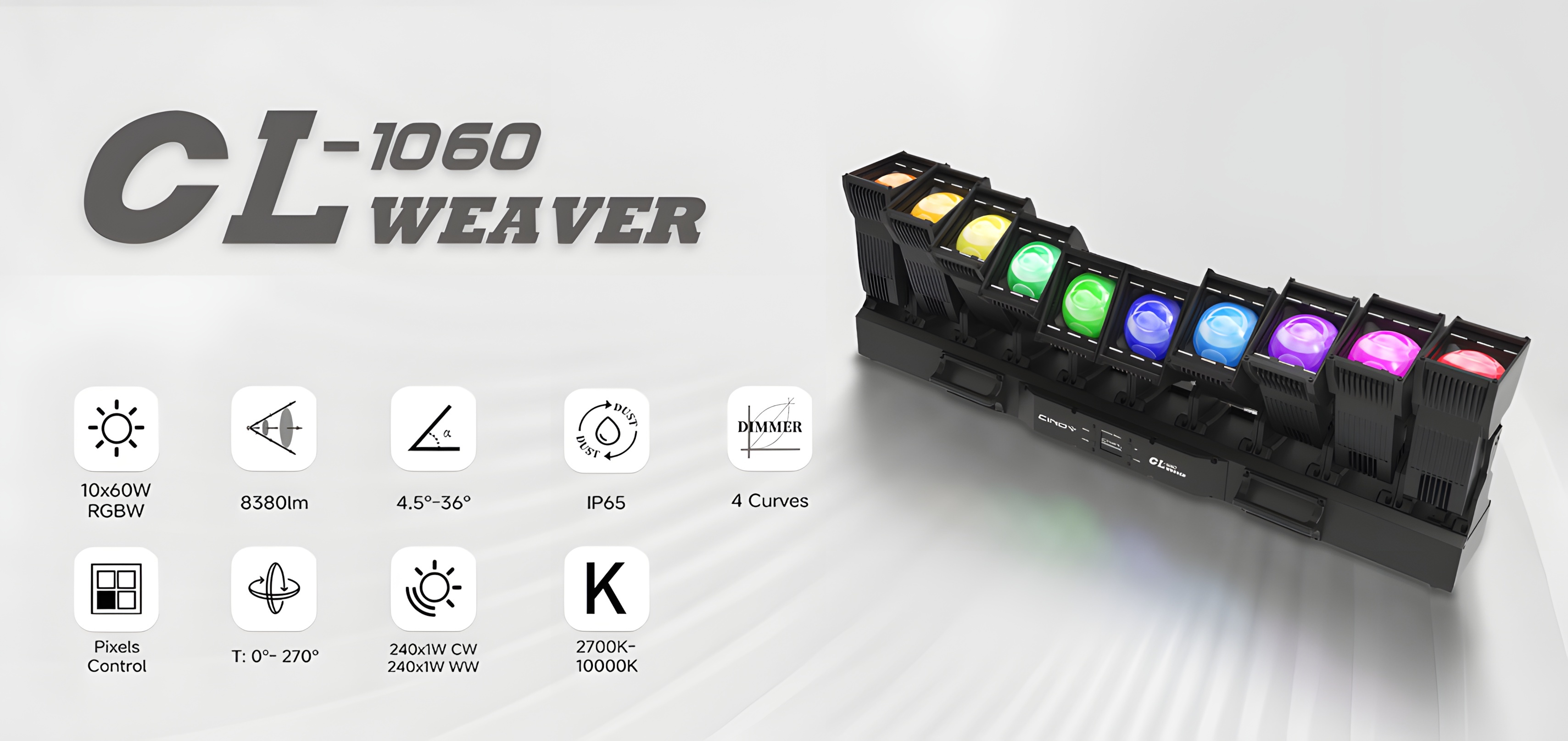

OPTICAL
10 x 60W RGBW
-
LUMEN OUTPUT
8,380 lm
-
ANGLE
4.5°-36°
-
MEASUREMENT
1000*195*322mm
-
WEIGHT
30.5KG
Product
Parameters
Optical
Light Source:
Main LED: 10 pcs 60W RGBW 4 in 1 LED
Strobe 1: 240 pcs 1W 6500K cool white
Strobe 2: 240 pcs 1W 3000K warm white
LED:
Beam angle : 4.5°-36°
Illuminance (4.5°): 21,343 lux@ 5m
Illuminance (36°): 1,653 lux@ 5m
Luminaire Output: 8,380 Lm
Strobe：
Beam angle : 120°
Strobe(7000K): 14,700 lm
Strobe(3000K): 12,250 lm
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
LED: pixel control
Selectable Tilt Ranges: 90°, 180°, 200°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds。
Zoom: Motorized
Color Mixing: RGBW mixing or CMY mixing
Appearance
Size: 1000*195*322mm
Weight: 30.5KG
Housing Colors: Black
Housing Material: Aluminum alloy
IP rated: IP65
Connection
Control Protocol: DMX, RDM, ArtNet, Kling-Net, sACN
DMX (Single Mode): 29, 56, 142,216, 262, 282
DMX (Dual Mode) Movement: 10, 37, 56, 62
DMX (Dual Mode) Pixel: 150, 160, 200
IP65 3-pin XLR input/output
Electrical / Temperature
Input Voltage: 200V-240V， 50/60Hz
Power: 1137W, 4.94 A @ 230 V, 50 Hz
Working temperature: -40℃-45℃
Startup temperature: -20℃-45℃
|
LED SOURCE | |||
RED | GREEN | BLUE | WHITE |

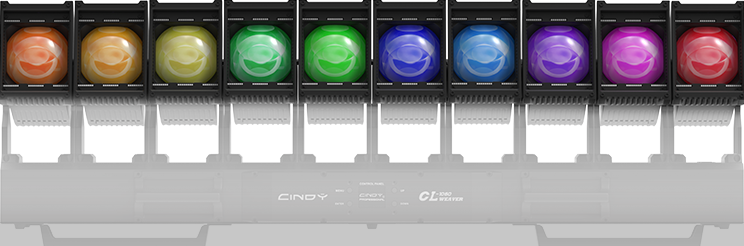

PIXEL CONTROL 10x60W LED |
 |

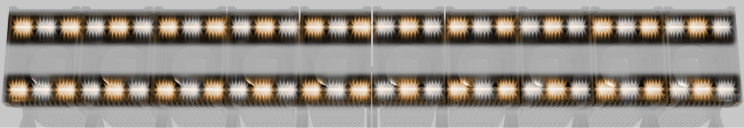

STROBE LINE |
CW：240x1W 6500K WW：240x1W 3000K |
 |
PHOTOMETRICS |
 |
 |
Smart Color Effect | Strobe Effect |
 |  |
Swing Motion | Rapid Zoom Reaction |
 |  |
