OPTICAL

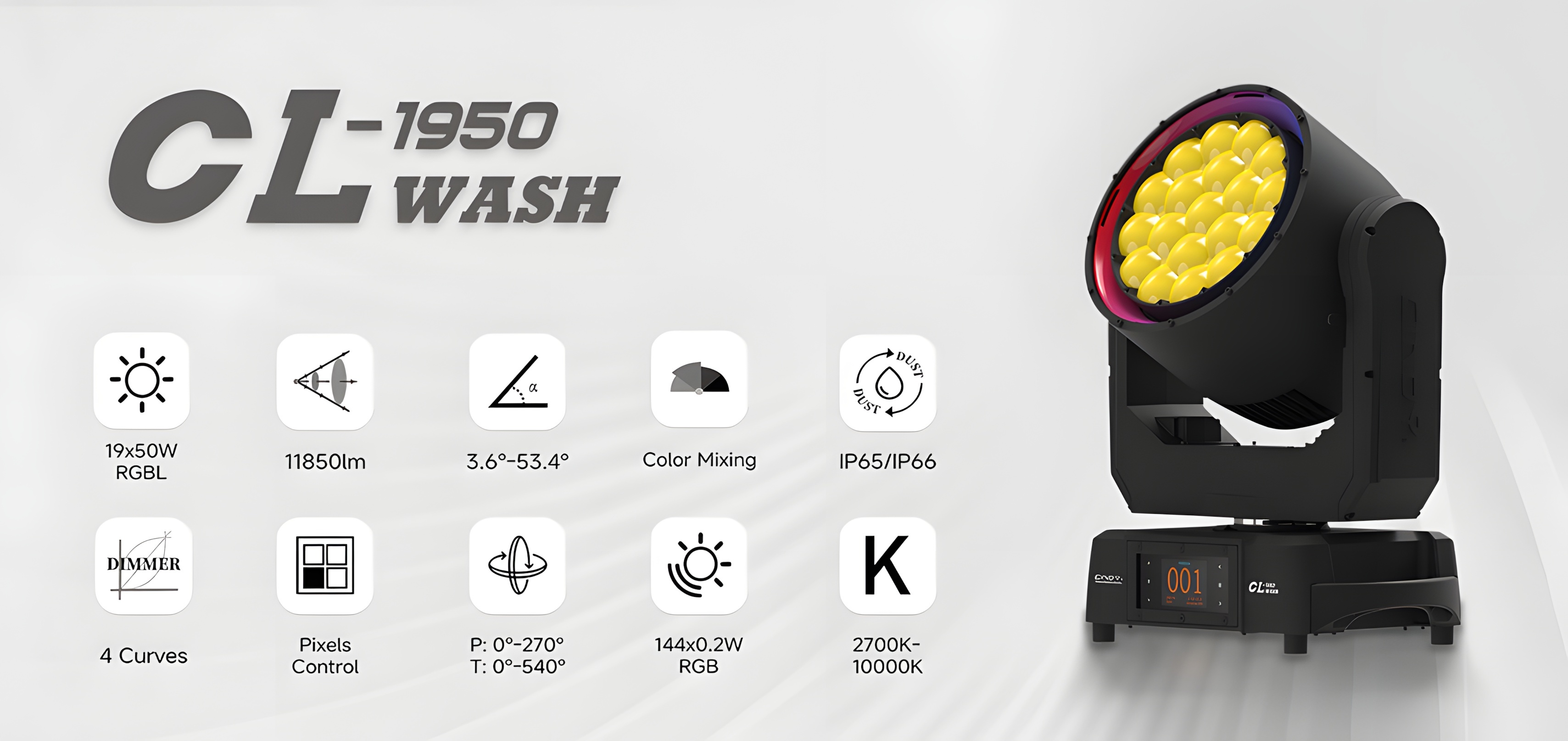

19x50W RGBL
-
LUMEN OUTPUT
11,850 lm
-
ANGLE
3.6°-53.4°
-
MEASUREMENT
386*290*500mm
-
WEIGHT
21.5KG
Product
Parameters
Optical
Light Source: 19*50W RGBL LED, 144*0.2W RGB LED
Color Temperature: 2800K-10000K adjustable
Beam Angle: 3.6°-53.4°
Luminaire Output: 11,850lm
Illuminance (3.6°): 47.385lux @ 5m
Illuminance (53.4°): 1,658lux @ 5m
PWM Options: 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 15000Hz
Dynamic effect
LED：pixel control
Selectable Pan Ranges: 180°, 360°, 540°
Selectable Tilt Ranges: 90°, 180°, 260°
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Zoom: Motorized
Color Mixing：RGBW mixing or CMY mixing
Outer Ring: 12 sections control
Appearance
Size: 386*290*500mm
Weight: 21.5KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP Rated: IP65
Connection
Control Protocol: DMX, RDM
Only for Connector version: ArtNet, sACN, Kling-Net
DMX (Single Mode): 33, 145, 265, 327
DMX (Dual Mode-Movement): 13, 36, 47
DMX (Dual Mode-Pixel): 93, 112, 224
Connector version: 3-pin XLR, EtherCON, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.
Electrical / Temperature
Input Voltage: 200V-240V, 50/60Hz
Power: 1050W，4.5A @ 230V，50Hz
Working temperature: -40℃-45℃
Startup temperature: -20℃-45℃
|

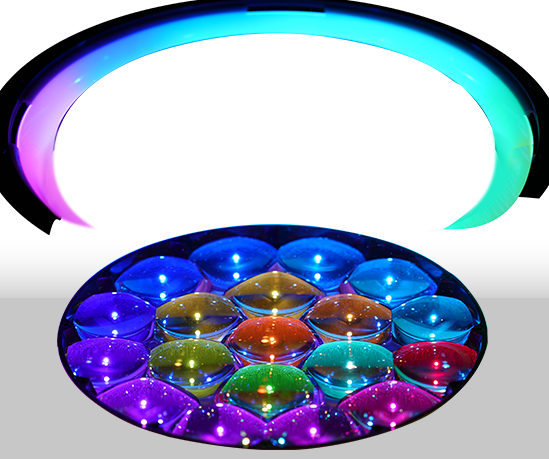

LED SOURCE | |||
 |  |  |  |
RED | GREEN | BLUE | LIME |

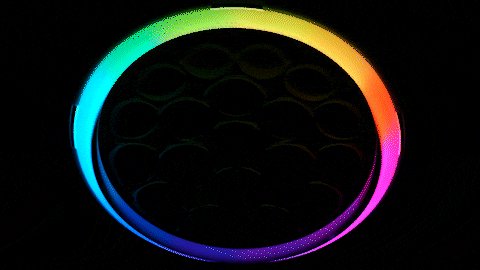

RING |  |
144×0.2W RGB | |
| |
PIXEL Control | |
19×50W RGBL |
PHOTOMETRICS |
 |
DIMMER 16bit | ZOOM 3.6°-53.4° |
 |  |
MACRO EFFECT | RING |
 |  |
