CINDY logo

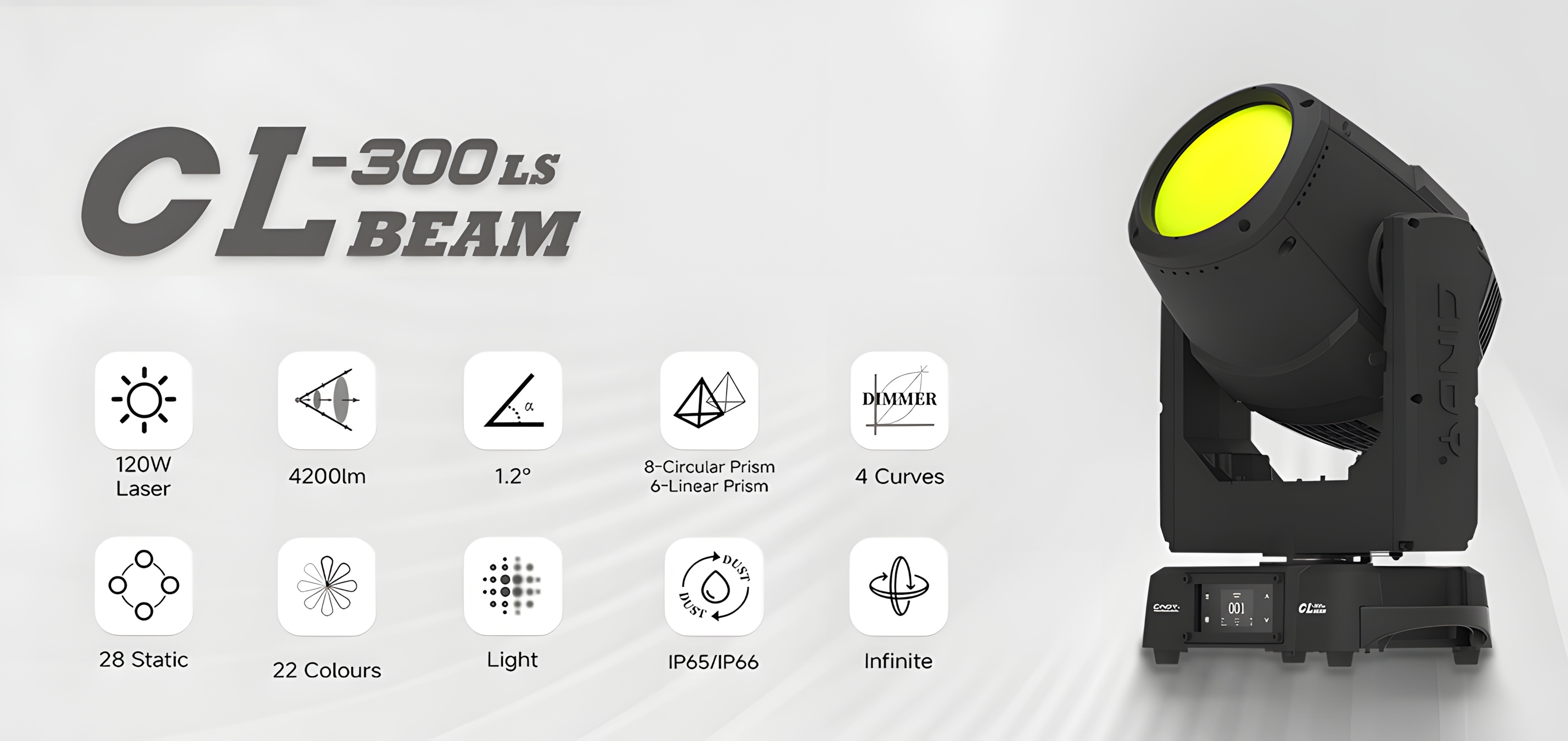

CL-300LS BEAM
CL-300LS BEAM
CL-300LS BEAM
CL-300LS BEAM

  • OPTICAL

    120W Laser

  • LUMEN OUTPUT

    4,200 lm

  • ANGLE

    1.2°

  • MEASUREMENT

    299*212*453mm

  • WEIGHT

    12.85KG

Product

icon

Parameters

Optical

Light Source: 120W Laser Module
Color Temperature: 8000K
Beam Angle: 1.2°
Luminaire Output: 4,200 lm
Illuminance (1.2°): 90,000 lux @ 20m

Dynamic effect

Selectable Pan Ranges: 180°, 360°, 540°, continuous rotation at variable speeds.
Selectable Tilt Ranges: 90°, 180°, 270°, continuous rotation at variable speeds.
Colors: 22+white, split colors, rainbow effects at variable speeds.
Gobos: 28 staticl gobos+open, rainbow effects at variable speeds.
Dimmer: 0-100% electronics, 4 dimming curves options.
Strobe: 0-25Hz, selectable multiple strobe effects with different speeds.
Focus: Motorized
Prism1: 6-facet prism, rotating at variable speeds.
Prism2: 8-facet prism, rotating at variable speeds.
Frost: Light frost

Appearance

Size: 299*212*453mm
Weight: 12.85KG
Housing Colors: Black
Housing Material: Magnesium alloy
IP rated: IP65/IP66

Connection

Control Protocol: DMX, RDM
DMX Channels: 19
Connector version: 3-pin XLR, Powerkon
Attached cable version: 1.4m input and output cable tail with 3-pin XLR connectors, 1.4m input cable tail with Power connector.

Electrical / Temperature

Input Voltage: 200V-240V, 50/60Hz
Power and Current: 300W, 1.3A @ 230V, 50Hz
Working temperature: -40°-45°
Startup temperature: -20°-45°











COLOR WHEEL

COLOR 1

COLOR 2

COLOR 3

COLOR 4

COLOR 5

COLOR 6

COLOR 7

COLOR 8

COLOR 9

COLOR 10

COLOR 11

COLOR 12

COLOR 13

COLOR 14

COLOR 15

COLOR 16

COLOR 17

COLOR 18

COLOR 19

COLOR 20

COLOR 21

COLOR 22









STATIC GOBO

S GOBO 1

S GOBO 2

S GOBO 3

S GOBO 4

S GOBO 5

S GOBO 6

S GOBO 7

S GOBO 8

S GOBO 9

S GOBO 10

S GOBO 11

S GOBO 12

S GOBO 13

S GOBO 14

S GOBO 15

S GOBO 16

S GOBO 17

S GOBO 18

S GOBO 19

S GOBO 20

S GOBO 21

S GOBO 22

S GOBO 23

S GOBO 24

S GOBO 25

S GOBO 26

S GOBO 27

S GOBO 28









PRISM



FROST



8-CIRCULAR PRISM

6-LINEAR PRISM



LIGHT

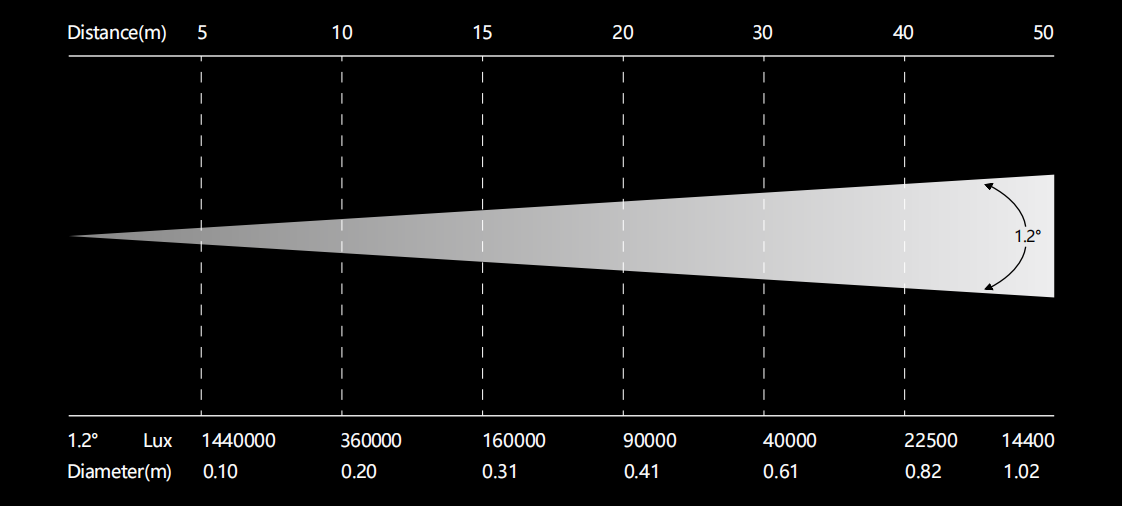

PHOTOMETRICS
